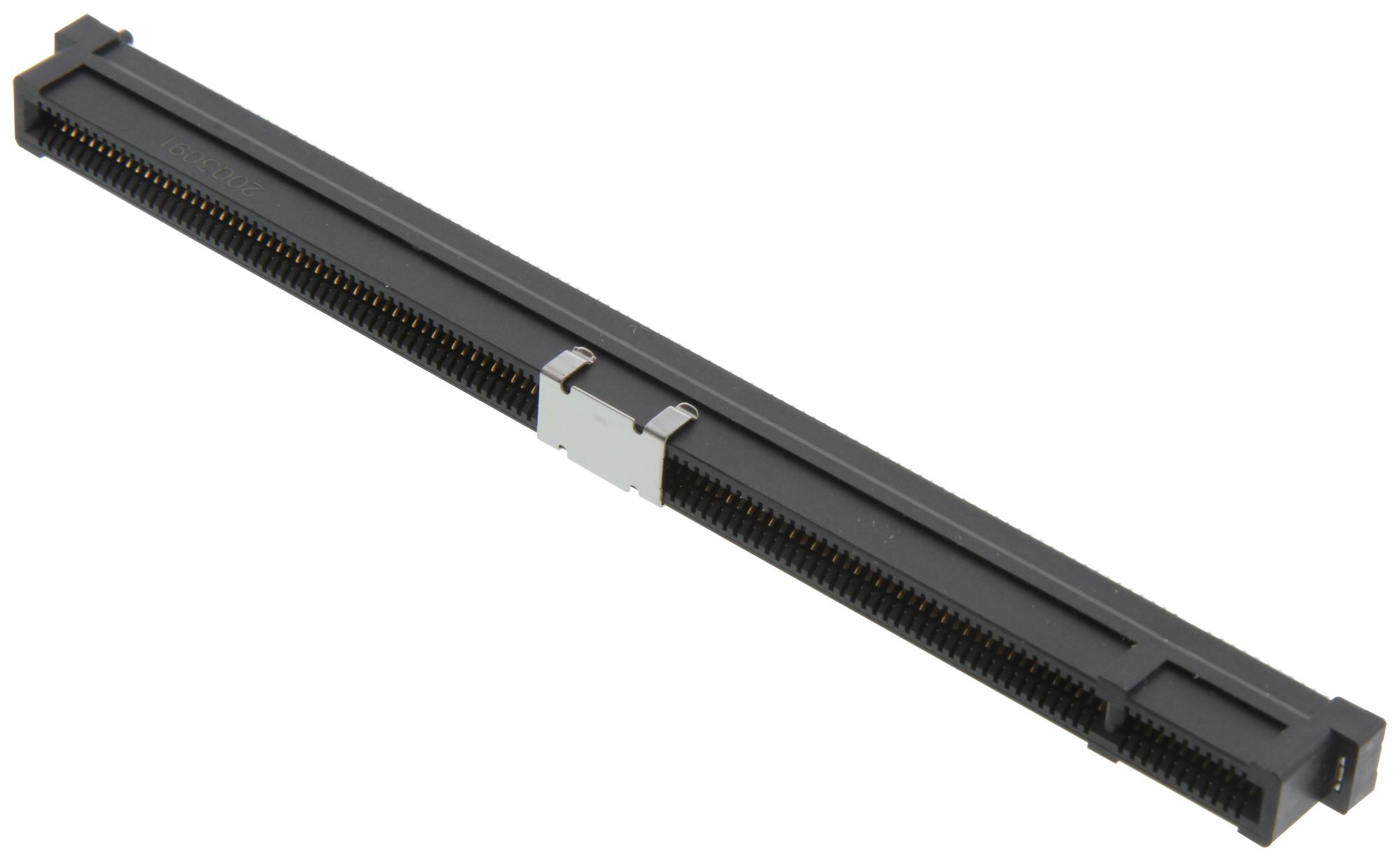

AMPHENOL COMMUNICATIONS SOLUTIONS CEE023000140311 PCIe Connectors
The Amphenol Cool Edge 1.00mm PCIe® connectors are high-speed, space-saving board-to-board solutions supporting PCIe Gen 4 and Gen 5 speeds up to 32GT/s. Designed with a slim profile (height 9.60mm, width 5.80mm, length 95mm), these connectors feature conductive plastic for enhanced signal integrity and allow easy AOI inspection with a simple vertical housing layout. Suitable for x8, x16, and x24 PCIe slots, they support 1.60mm thick boards, offering reliable power and signal performance for high-end computing, networking, server, and GPU applications.
AMPHENOL COMMUNICATIONS SOLUTIONS CEE023000140311 PCIe Connectors Specifications:
- Signal pin pitch: 1.00mm based on PCIe interface
- Current rating: 1.1A per pin for power, 0.7A per pin for signal
- Supports speeds up to 32GT/s, including Gen 4 and Gen 5
- Compatible with PCIe x8, x16, x24 slots
- Housing material: High-temperature thermoplastic UL 94V-0
- Contact material: Copper alloy with gold over nickel finish
- Mating cycles: 200
- Dielectric withstanding voltage: 500V
- Temperature life: 105°C for 240 hours
- Thermal shock: 10 cycles from -55°C to +85°C
- Humidity resistance: 24 cycles at 253°C/803% RH and 6523°C/503% RH
- Connector height: 9.60mm; width: 5.80mm; length: 95mm
- Supports 1.60mm thick boards
- Packaging: Tray
Buy the Amphenol Series Cool Edge PCIe Connectors: CEE023000140311
Purchase the Amphenol Cool Edge PCIe connectors online now and benefit from high speed data transfer up to 32GT/s, space-efficient design, and excellent signal integrity. These connectors support PCIe Gen 4 and Gen 5, making them ideal for high-end computing, networking, and server applications. The slim profile and conductive plastic construction ensure easy inspection and reliable performance. Perfect for short riser cards, PCB edge routing, and demanding add-in card setups, these connectors guarantee durability with up to 200 mating cycles. Order today for reliable, high-speed connectivity solutions.
Get Amphenol Cool Edge PCIe Connectors today—built for high-speed performance and long-lasting durability.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS CEE023000140311?
You can click on the BUY or RFQ button to purchase CEE023000140311 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part CEE023000140311?
You can download the CEE023000140311 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of CEE023000140311?
AMPHENOL COMMUNICATIONS SOLUTIONS
