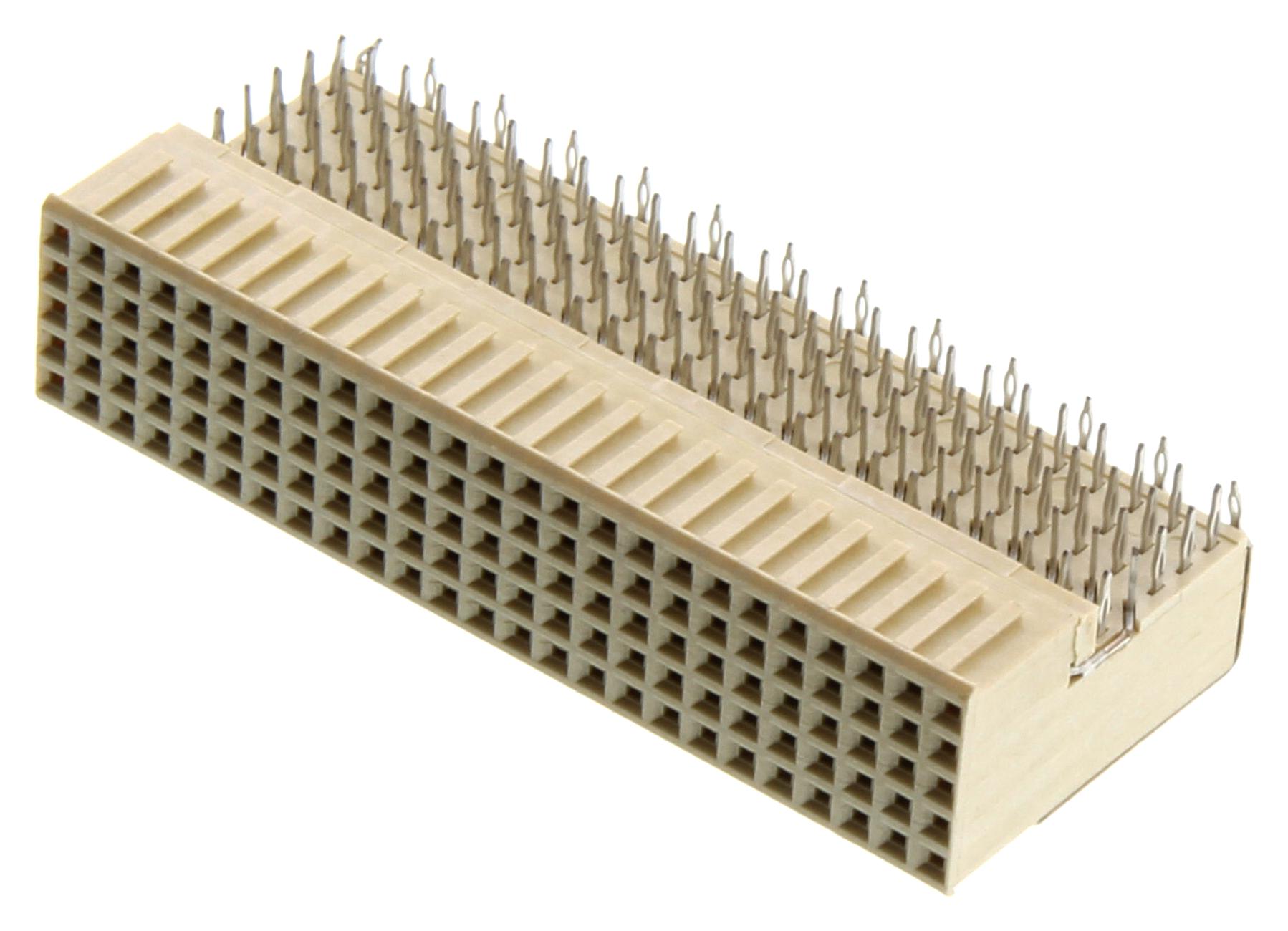

AMPHENOL COMMUNICATIONS SOLUTIONS HM2R02PA5108N9LF Backplane Connector
The Millipacs 2mm Hard Metric right angle receptacle connector offers reliable, high-performance interconnections for board-to-board and cable-to-board applications. Designed in accordance with IEC standards, it features a modular, scalable structure with options for hybrid modules, signal, power, and coax contacts. Built with high-temperature polymer insulators and copper alloy contacts, these connectors support operating temperatures from -55°C to +125°C and provide optimal electrical performance with test voltages up to 750 Vrms. Suitable for communications, industrial, medical, and power industries, it ensures precise, stable connections with gold/palladium and tin plating for durability and corrosion resistance.
AMPHENOL COMMUNICATIONS SOLUTIONS HM2R02PA5108N9LF Backplane Connector Specifications:
- Pitch: 2mm
- Material: High-temperature polymer (insulator), Copper Alloy (contacts)
- Contact Plating: Gold/Palladium nickel on mating areas, Tin over Nickel on press-fit areas
- Operating Temperature: -55°C to +125°C
- Operating Current: 1.5A at 20°C, 1.0A at 70°C
- Test Voltage: 750 Vrms
- Contact Resistance: 20 mΩ max
- Insulation Resistance: 10^8 MΩ min
- Mating Force: 0.75 N max per contact
- Withdrawal Force: 0.15 N min per contact
- Hertz Stress: 200 Kpsi min
- Misalignment: Longitudinal +2.0mm, Transversal +2.5mm
- Inclination: +2.0°
- Temperature Range: -55°C to +125°C
- Standards: IEC 917, IEC 61076-4-101, Telcordia GR-1217-CORE
- Certifications: UL, CSA recognized
Buy the FCI Series Millipacs 2mm Hard Metric: HM2R02PA5108N9LF
Purchase the FCI Millipacs 2mm Hard Metric backplane connector online today. Designed for high-performance interconnections, it provides modular, scalable, and versatile solutions for communications, industrial, and medical applications. Featuring high-temperature polymer insulators and durable copper alloy contacts with gold and tin plating, this connector supports operating temperatures from -55°C to +125°C and ensures dependable electrical performance with test voltages up to 750 Vrms. Its flexible design accommodates hybrid modules, signal, power, and coax contacts, making it ideal for demanding environments needing precise and reliable connections.
Get FCI Millipacs 2mm Hard Metric HM2R02PA5108N9LF today—built for reliable connections and long-lasting durability in industrial and communication systems.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS HM2R02PA5108N9LF?
You can click on the BUY or RFQ button to purchase HM2R02PA5108N9LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part HM2R02PA5108N9LF?
You can download the HM2R02PA5108N9LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of HM2R02PA5108N9LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
