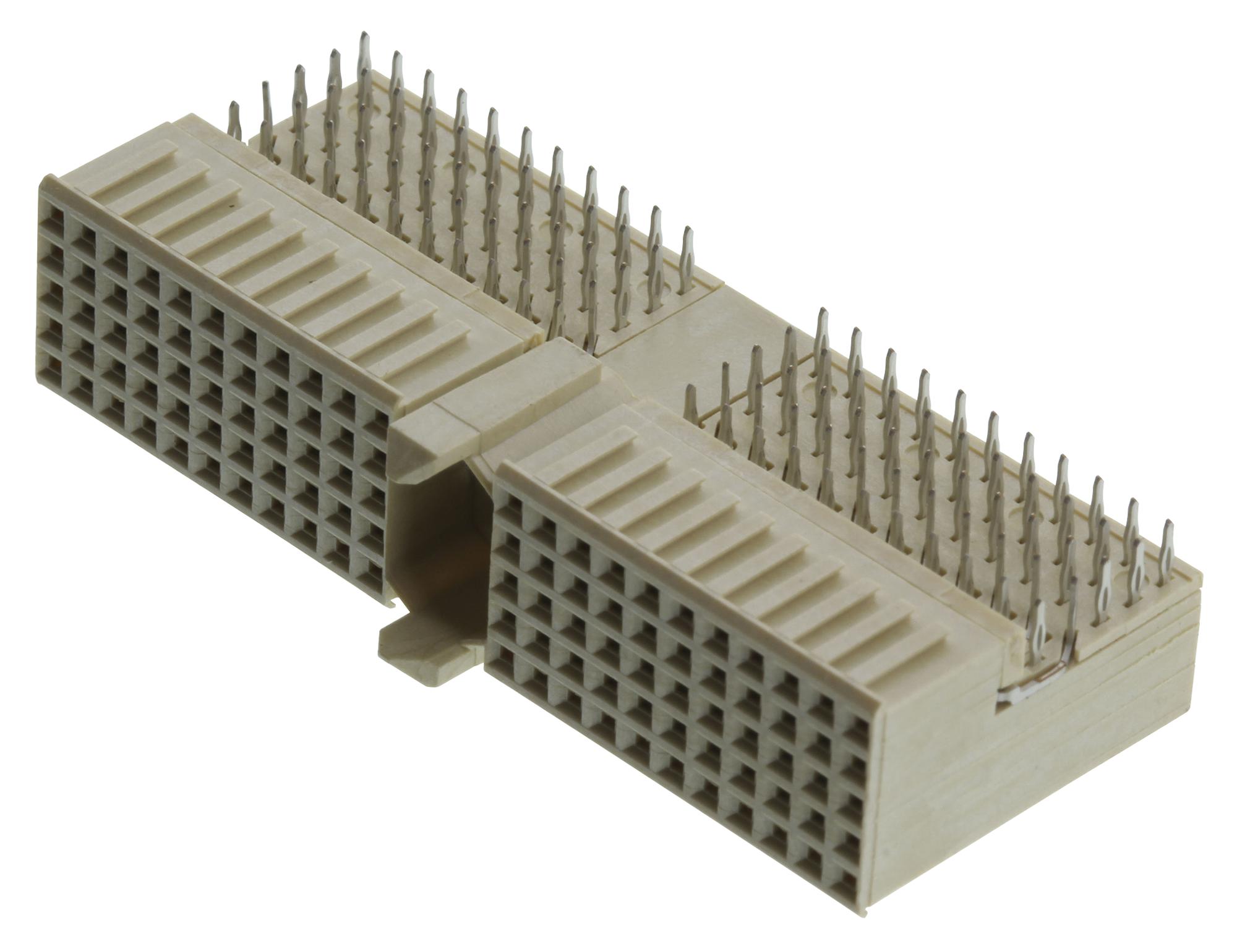

AMPHENOL COMMUNICATIONS SOLUTIONS HM2R10PA5100N9LF Backplane Connectors
The Millipacs Compact PCI backplane connectors are engineered for reliable interconnections in compact PCI architectures. Made from high-quality thermoplastic insulators with copper alloy contacts, these connectors support operating temperatures from -55°C to +125°C. They feature gold or palladium-nickel plating for excellent durability and minimal contact resistance. Designed in accordance with IEC standards, they provide up to 1.5A at 20°C, with test voltages up to 750 Vrms. Suitable for telecom, industrial automation, transportation, military, and medical applications, these connectors ensure precise, scalable, and secure backplane connections in high-performance systems.
AMPHENOL COMMUNICATIONS SOLUTIONS HM2R10PA5100N9LF Backplane Connectors Specifications:
- Material: Thermoplastic UL-94V0 insulation, Copper Alloy contacts
- Contact Plating: Gold or Palladium-Nickel, Tin over Ni
- Operating Current: 1.5 A at 20°C, 1.0 A at 70°C
- Test Voltage: 750 Vrms
- Contact Resistance: 20 mΩ max.
- Insulation Resistance: 10 MΩ min.
- Operating Temperature: -55°C to +125°C
- Mating Force: 0.75 N max. per contact
- Withdrawal Force: 0.15 N min. per contact
- Hertz Stress: 200 Kpsi min
- Misalignment: Longitudinal 2.0 mm, Transversal 2.5 mm
- Inclination: +2.0°
- Certifications: IEC 917, IEC 61076-4-101, UL, CSA, Telcordia GR-1217-CORE
Buy the Millipacs Series Compact PCI Backplane Connectors: HM2R10PA5100N9LF
Experience reliable and scalable connectivity with the Millipacs Compact PCI backplane connectors, ideal for telecom, industrial automation, and military applications. Constructed from durable thermoplastic and copper alloy, these connectors support operating temperatures from -55°C to +125°C, ensuring performance in harsh environments. They feature gold or palladium-nickel plating for superior contact durability, low contact resistance, and compliance with IEC standards. Easy to install and maintain, these connectors are perfect for high-density backplane systems, offering flexible configurations, precise mating, and robust electrical performance for demanding electronic applications.
Get Millipacs HM2R10PA5100N9LF backplane connector today—built for precise and long-lasting performance in rugged industrial systems.
