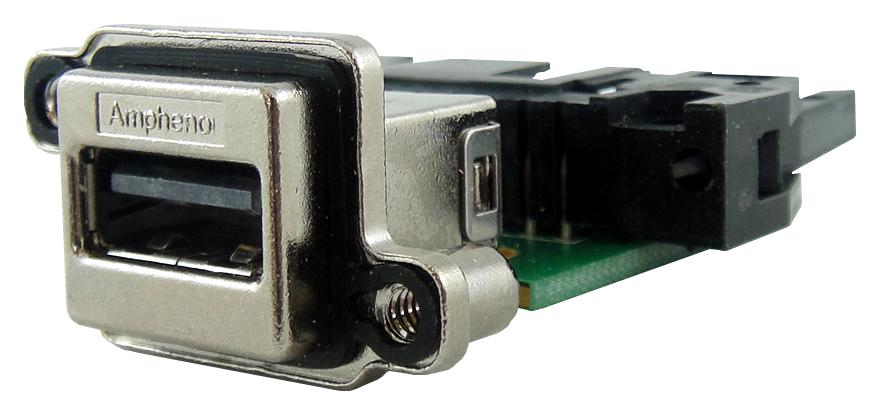

AMPHENOL COMMUNICATIONS SOLUTIONS MUSBRA51140 Rugged USB Connector
The Rugged USB 2.0 Receptacle Series A offers reliable, waterproof connectivity for industrial applications, military equipment, and harsh environments. Designed with a robust shell, dust covers, and options for right-angle or vertical mounting, these connectors meet IP68 and military shock & vibration standards, supporting data transfer rates up to 480 Mb/s. Suitable for medical, test equipment, GPS, traffic systems, and communication devices, they ensure secure and durable connections with high durability, corrosion resistance, and excellent mechanical performance in demanding environments.
AMPHENOL COMMUNICATIONS SOLUTIONS MUSBRA51140 Rugged USB Connector Specifications:
- Current rating: 1.5A per contact
- Contact resistance: 30 mΩ max
- Insulation resistance: 1000 MΩ min
- DWV: 500V AC @ sea level
- Operating temperature: -40°C to +105°C
- Mating cycles: 1500 (Series A & B), 5000 (Mini-B & Mini-AB)
- Shell: Die cast Zinc alloy, Nickel plated
- Housing: UL94V-0 thermoplastic, black or white for Series B
- Contacts: Phosphor Bronze, gold over nickel
- Solder process: hand or wave, 260°C max for 8 seconds
- Mounting options: right angle, vertical, flange, and threaded shells
- Dust covers included, optional for environmental sealing
- RoHS compliant, IP68 rated, meets IEC 60529
- Approvals: military shock & vibration standards
- Data rate: up to 480 Mbps
- Applications include military, medical, GPS, traffic, and test equipment
Buy the Amphenol MUSBRA51140 – Reliable USB 2.0 Connector for Industrial Applications
Order the Rugged USB Connector from Amphenol now and ensure your applications benefit from secure, waterproof, and shock-resistant connectivity. Perfect for industrial, military, and environmental demanding systems, these connectors support high data rates up to 480 Mbps, with durability tested to meet IP68 and shock & vibration standards. Featuring multiple mounting options, dust covers, and high-quality materials, they guarantee long-term reliable performance, reducing downtime and maintenance costs. Secure your connection needs today with this rugged, versatile USB solution designed for challenging applications worldwide.
Buy Amphenol MUSBRA51140 now and experience unmatched durability, waterproof protection, and reliable data transfer in harsh environments.
