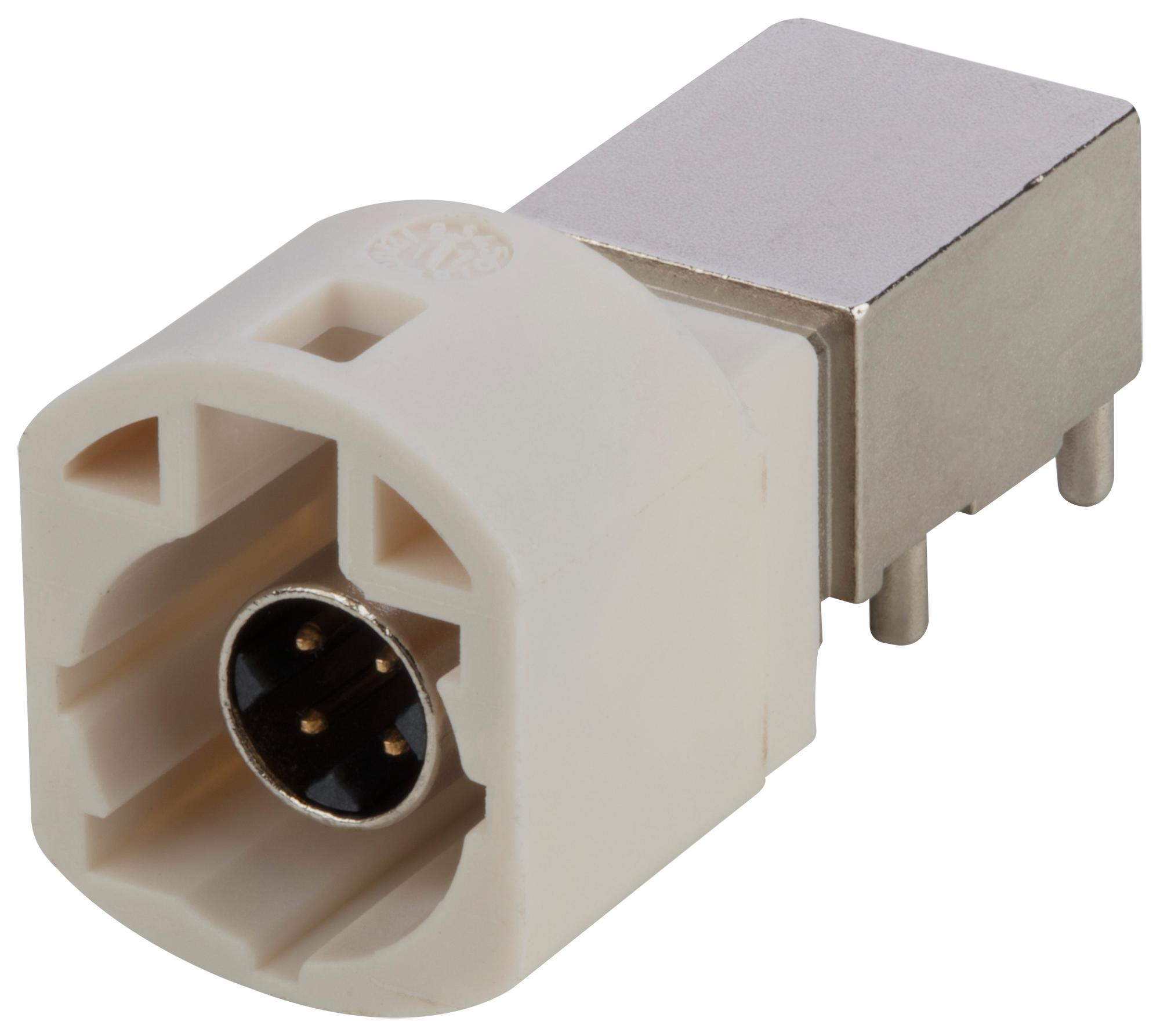

AMPHENOL COMMUNICATIONS SOLUTIONS HSDNARPPCB12A automotive connector

The HSD+0 right-angle low-profile connector features a durable thermoplastic housing and dielectric materials capable of withstanding high temperatures. It is color-coded for easy installation according to automotive standards and ensures high retention force between the die-cast and plastic housing, preventing damage during improper release. Designed for crimp connection on the cable side, it supports automated assembly processes and resists reflow soldering temperatures. With a maximum contact resistance of 20 milliohms per pin, insulation resistance exceeds 100 megaohms at 500 VDC, and dielectric withstand voltage is AC 250 Vrms for one minute. It operates over a temperature range of -40°C to +105°C, complies with USCAR-2, ISO/TS standards, and is low halogen, making it ideal for automotive applications like ADAS, in-vehicle infotainment, and camera systems.

View HSDNARPPCB12ADatasheet [pdf]

Buy the Amphenol Series HSD Connector: HSDNARPPCB12A

Purchase the Amphenol HSDNARPPCB12A connector online today and experience its high-performance design tailored for automotive applications. Featuring a thermoplastic housing with UL94V-0 rating, it offers excellent resistance to high temperatures, reflow soldering, and mechanical stress. Its color coding ensures quick, accurate installation, while the high retention force prevents damage during incorrect release. Suitable for automated assembly and shielded twisted quad cables, it meets USCAR-2 standards, making it ideal for ADAS, in-vehicle infotainment, and camera systems. Buy now for reliable, durable connectivity in automotive environments.

Get Amphenol HSDNARPPCB12A today—built for automotive high-temperature environments and long-lasting durability.
