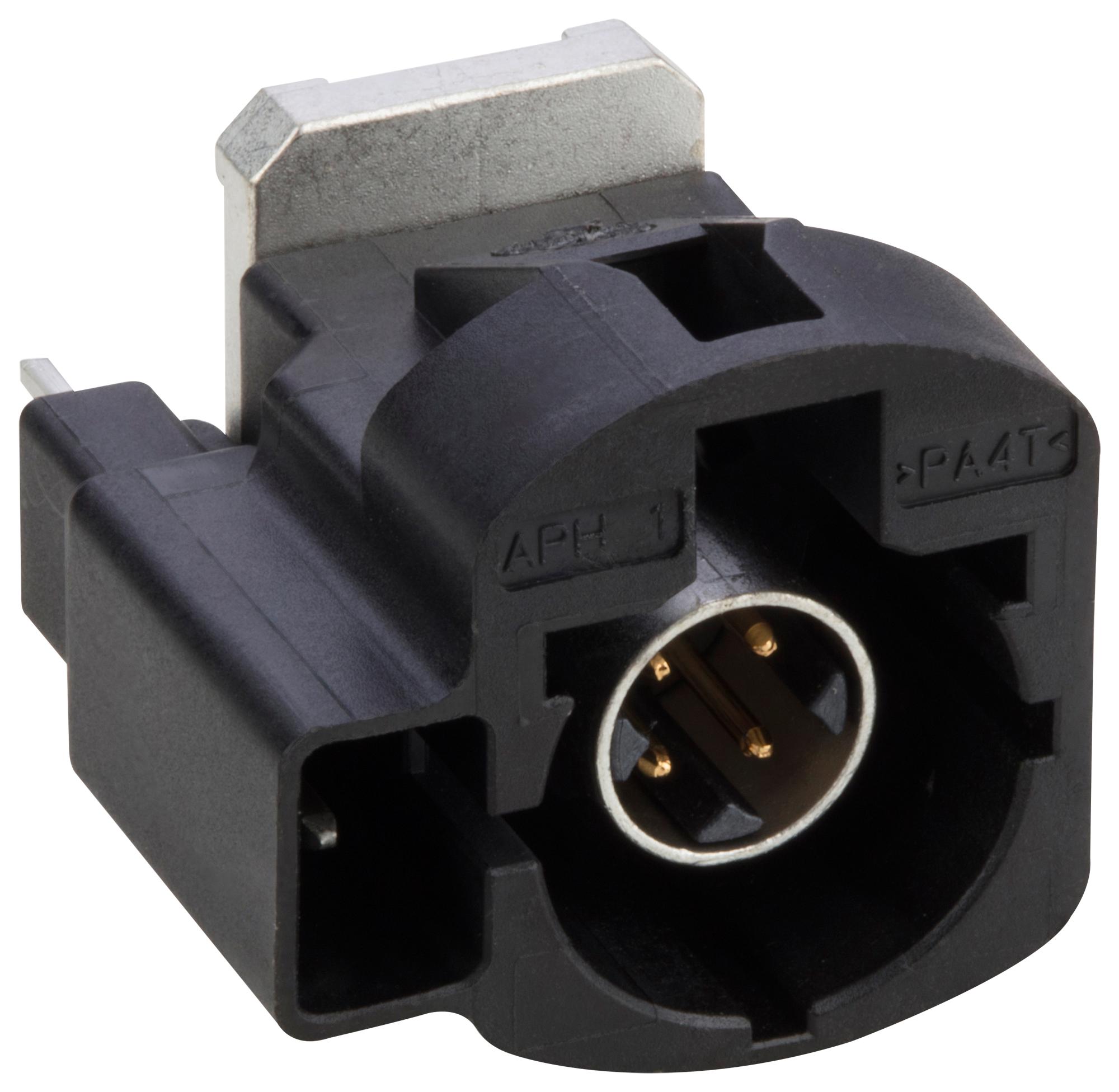

AMPHENOL COMMUNICATIONS SOLUTIONS HSDNASPPCB14B Automotive Shielded Connector
The HSD Connector System by Amphenol is a high-performance, fully shielded automotive interconnect designed for low-voltage differential signals like LVDS, USB, and IEEE 1394. It features enhanced retention force, corrosion resistance, and a simple, patent-protected assembly, ensuring high reliability and safety in automotive environments. Compliant with USCAR-2 standards, it offers high cable retention, self-aligning housings, and protection against incorrect release damage. Suitable for advanced driver assistance, in-vehicle infotainment, and camera systems, it supports automated assembly with robust environmental performance in demanding conditions.
AMPHENOL COMMUNICATIONS SOLUTIONS HSDNASPPCB14B Automotive Shielded Connector Specifications:
- Housing Material: High Temperature Polymer, UL94V-0
- Dielectrics Material: High Temperature Polymer, UL94V-0
- Contacts: Copper Alloy
- Die Casting: Zinc Alloy
- Cover: Zinc Alloy
- Baffle: Stainless Steel
- Insertion Force: Max 35N
- Extraction Force: Min 5N without latch
- Durability: 25 Cycles
- Contact Resistance: Max 20 mΩ per pin
- Isolation Resistance: Over 100 MΩ at 500 VDC
- Dielectric Withstanding Voltage: AC 250 Vrms
- Temperature Range: -40°C to +105°C
- RoHS, REACH/SVHC, Low Halogen
- Environmental Cycling: 40 cycles at -40°C/+105°C, 90-95% RH
- High Temperature Exposure: Static 105°C for 1008 hours
- Packaging: Tray or Tape & Reel
Buy the Amphenol Series HSD Connector: HSDNASPPCB14B
Discover the durable and reliable automotive shielded connector designed for critical in-vehicle electronics like ADAS, infotainment, and camera modules. This high-performance connector offers enhanced retention force, corrosion resistance, and compliance with USCAR-2 standards, making it ideal for demanding automotive applications. Easy to assemble with automated processes, it provides excellent electrical performance, environmental resilience, and secure mating. Upgrade your vehicle connectivity with this robust, environmentally tested connector that ensures long-term reliability and safety in harsh conditions.
Order your Amphenol Series HSDNASPPCB14B high-reliability car connector today and ensure robust in-vehicle electrical connections for advanced automotive systems.
