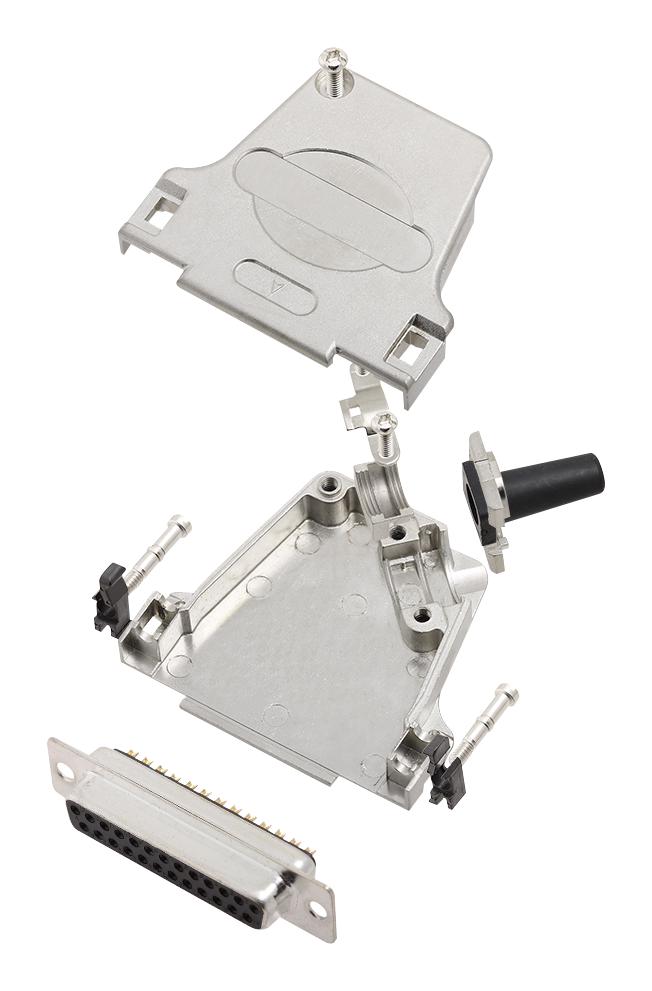

Amphenol-Communications-Solutions L17D45ZF25RGL77SDB25S D-Sub Connector
The Umax 45ZF-RG+D-Sub Solder Cup is a high-quality D-Sub connector designed for reliable electrical connections in industrial applications. It features a sturdy zinc, nickel-plated shell, and glass-filled thermoplastic insulator that withstands temperatures from -45°C to +105°C. Available with 9, 15, 25, or 37 pins, it offers excellent EMI shielding, re-openable size, and gold-flash over nickel contact plating. Suitable for various cable O.Ds up to 15mm, this solder cup connector supports voltages over 1000V RMS and rated for 5A current, making it a versatile choice for rugged environments.
Amphenol-Communications-Solutions L17D45ZF25RGL77SDB25S D-Sub Connector Specifications:
- Material: Zinc, Nickel Plated
- Operating Temperature: -45°C to +105°C
- Cable Entry: Side Entry, up to 15mm O.D.
- Thumbscrews: Spring-Clip mounted Jackscrews
- Standard Cable O.Ds: 9.5mm without grommet, up to 15mm with grommet
- Insulator: Glass filled TP, UL94 V-0
- Shell: Steel, Tin Plated
- Contact pins: Copper Alloy, Gold Flash over Nickel
- Contact Plating: Gold Flash over Ni
- Withstanding Voltage: >1000V RMS to 50Hz for 1 min
- Current Rating: 5A
- Insulator Resistance: >5000MQ min.
- Pin Count Options: 9, 15, 25, 37
- Dimensions (various sizes): 17.6-70.2 mm length, 39.5-48 mm width, 15.2 mm height
Buy the Amphenol Series D-Sub Solder Cup: L17D45ZF25RGL77SDB25S
Enhance your industrial and electronics projects with this high-quality D-Sub solder cup connector from Amphenol. It features a durable zinc shell with nickel plating for corrosion resistance and excellent EMI shielding. The insulator is glass-filled thermoplastic capable of withstanding temperatures from -45°C to +105°C, making it suitable for harsh environments. Available in sizes 9, 15, 25, or 37 pins, with gold-flash over nickel contacts supporting voltages over 1000V RMS. Easy to install with spring-clip jackscrews for secure, re-openable connections. Order online now for reliable, professional-grade connectivity.
Order your Amphenol SeriesD-Sub Solder Cup connector today and ensure robust, EMI-shielded connections for your industrial projects.
Frequently Asked Questions
Where can I buy Amphenol-Communications-Solutions L17D45ZF25RGL77SDB25S?
You can click on the BUY or RFQ button to purchase L17D45ZF25RGL77SDB25S from an authorized Amphenol-Communications-Solutions distributor.
How do I troubleshoot issues or seek technical support for part L17D45ZF25RGL77SDB25S?
You can download the L17D45ZF25RGL77SDB25S datasheet or visit the Amphenol-Communications-Solutions website for support.
Who is the manufacturer of L17D45ZF25RGL77SDB25S?
Amphenol-Communications-Solutions
