Amphenol-Communications-Solutions L17DTPKP15L717SDA15P D-Sub Solder Cup Connector

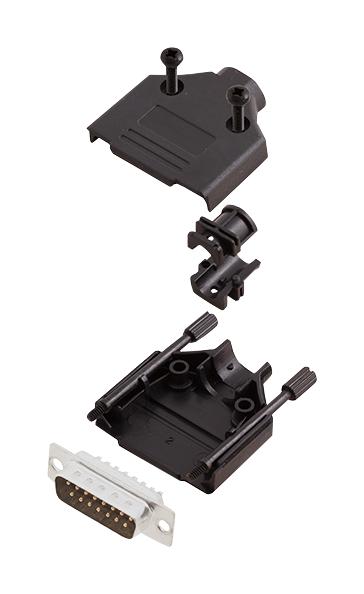

The D-Sub solder cup connector kit offers reliable secure connections for electrical applications, meeting high-temperature and voltage specifications. Made with UL 94 V-0 plastic and glass-filled TP insulators, it features precision-stamped copper alloy contact pins with gold flash over nickel plating for durability and optimal conductivity. The connector supports operating temperatures from -55°C to +85°C and withstands voltages over 1000V RMS. Available in sizes ranging from 9 to 37, it is re-openable with strain relief inserts, ensuring secure terminations for industrial, aerospace, and electronic controls. Easy to assemble, it provides high performance and longevity in mission-critical environments.
Amphenol-Communications-Solutions L17DTPKP15L717SDA15P D-Sub Solder Cup Connector Specifications:
- Material: UL 94 V-0 Plastic, glass-filled TP insulator, steel shell with tin plating, copper alloy contact pins
- Operating Temperature: -55°C to +85°C
- Withstanding Voltage: >1000V RMS to 50 Hz for 1 minute
- Current Rating: 5A
- Insulator Resistance: >5000MQ min.
- Cable Entry: Top with cable O.D up to 11.5mm
- Colour: Black
- Sizes: 9, 15, 25, 37-way options
- Pin Configurations: Gold flash over nickel, stamped and formed pins, class 3, 100 inserts min.
- Re-openable with strain relief inserts
- Stud Hole Size: 15.0mm in larger models
- Dimensions vary per size, with specific measurements provided for each configuration
Buy the Buy Amphenol D-Sub Solder Cup Part Number L17DTPKP15L717SDA15P Online
Purchase the Amphenol D-Sub solder cup connector kit online for reliable, high-performance connections suited for industrial, aerospace, and electronic applications. Designed with UL 94 V-0 plastic, gold-plated pins, and strain relief, it ensures durability and secure terminations. Available in sizes from 9 to 37, these connectors support voltages over 1000V RMS and operate effectively within -55°C to +85°C. Easy to install, re-openable, and resistant to harsh environments, they are ideal for high-stakes wire management, aerospace, and automation systems, ensuring long-lasting performance.
Get Amphenol L17DTPKP15L717SDA15P today—built for durability, secure connections, and high-voltage performance in critical electronic systems.
