AMPHENOL COMMUNICATIONS SOLUTIONS L17DTZF09RGL717HDE15P High Density D-Sub Connector
The Full Metal Hoods DTZF-RG+High Density D-Sub solder cup connectors are designed for reliable electrical connections in industrial and electronic applications. Made of zinc with nickel plating, these connectors support operating temperatures from -45°C to +105°C and feature a top entry cable connection with standard Thumbscrews. They are available in sizes HD15, HD26, HD44, and HD62, with high EMI shielding, re-openable designs, and spring-clip mounted jack screws for secure installation. Suitable for applications requiring high density, durability, and excellent electrical performance.
AMPHENOL COMMUNICATIONS SOLUTIONS L17DTZF09RGL717HDE15P High Density D-Sub Connector Specifications:
- Material: Zinc, Nickel Plated
- Operating Temperature: -45°C to +105°C
- Cable Entry: Top Entry, supports up to 6.5mm with grommet and 9.5mm without grommet (9-Way); up to 8.0mm with grommet and 12.5mm without grommet (15-Way); up to 9.0mm with grommet and 15.0mm without grommet (25-Way); up to 12.5mm with grommet and without grommet (37-Way)
- Cable O.D - Standard: Up to 6.5mm with grommet, 9.5mm without grommet (9-Way); Up to 6.5mm with grommet, 12.5mm without grommet (15-Way); Up to 8.0mm with grommet, 12.5mm without grommet (25-Way); Up to 9.0mm with grommet, 15.0mm without grommet (37-Way)
- Contact Pins: Stamped & Formed, Copper Alloy
- Contact Plating: Gold flash over Nickel
- Withstanding Voltage: >1000V RMS to 50 Hz for 1 minute
- Current Rating: 3A
- Insulator Resistance: >5000 MΩ min
- Shell: Steel, Tin Plated
- Features: EMI Shielding, Re-openable design, Spring-Clip mounted jack screws
- Size Options: HD15, HD26, HD44, HD62
- Operating Temperature (High Density): -55°C to +85°C

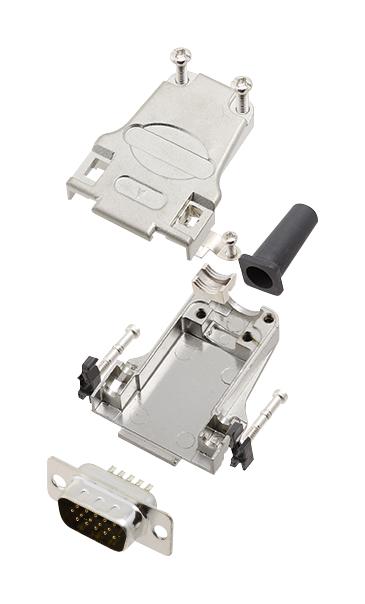

Buy the Amphenol Series DTZF High Density D-Sub Solder Cup: L17DTZF09RG
Experience reliable and high-performance electrical connections with these metal shell high density D-Sub solder cup connectors. Designed for durability and EMI shielding, they feature a secure spring-clip design, standard Thumbscrews, and versatile cable entries for various sizes. Suitable for industrial, electronic, and automation applications, these connectors support operating temperatures from -45°C to +105°C. Available in multiple sizes, they ensure a stable connection, easy re-openability, and excellent electrical performance for demanding environments.
Get Amphenol DTZF09RG today—built for precise electrical connectivity and lasting durability.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS L17DTZF09RGL717HDE15P?
You can click on the BUY or RFQ button to purchase L17DTZF09RGL717HDE15P from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part L17DTZF09RGL717HDE15P?
You can download the L17DTZF09RGL717HDE15P datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of L17DTZF09RGL717HDE15P?
AMPHENOL COMMUNICATIONS SOLUTIONS
