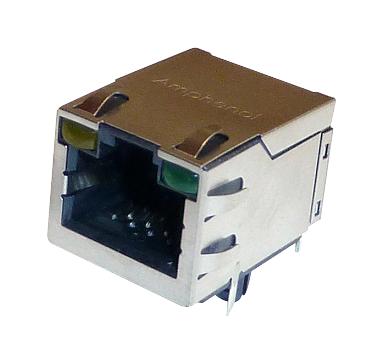

AMPHENOL COMMUNICATIONS SOLUTIONS RJE6018854A1 High-Speed Modular Jack
The RJE60 series modular jack supports CAT6A performance for high-speed Ethernet applications with transmission frequencies up to 500MHz. Made from high-temperature thermoplastic, it features durable phosphor bronze contacts with gold and nickel plating for reliable connectivity. The shielded variants enhance EMI performance, with options including LEDs for link activity and network speed verification. It can withstand 750 mating cycles and operates effectively from -55°C to +85°C. Suitable for networking, industrial IoT, and high-performance data transmission environments, this modular jack combines robust construction with versatile configurations for diverse industry needs.
AMPHENOL COMMUNICATIONS SOLUTIONS RJE6018854A1 High-Speed Modular Jack Specifications:
- Material: Insulator high-temperature thermoplastic, UL94V-0, Black
- Contacts: Phosphor bronze, gold and nickel plated, 6u”, 15u”, 30u”, 50u” options
- Shield: Copper alloy nickel plated or stainless steel with tin dipped tail
- LED: Pure tin plating, forward voltage max 2.6V, forward current 20mA, wavelength 565-625nm
- Electrical: Contact Resistance 20mΩ max, Insulation Resistance 500MΩ min at 500V DC, Voltage Rating 125V AC
- Mechanical: Mating cycles 750, Insertion force up to 5 lbs, Pull retention over 20 lbs
- Environmental: Operating temperature -55°C to +85°C, RoHS, REACH, UL approved
- Packaging: Tray, tape, and reel available for automated assembly
- Dimensions: Same footprint as RJE58/RJE59, width and height optimized for PCB space
- Supported data rate: Up to 10G Ethernet, transmission frequency: 500MHz
Buy the Buy Amphenol RJE60 Modular Jack Part Number RJE6018854A1 Online
Enhance your networking and industrial communication setup with the high-speed modular jack from Amphenol. Supporting 10G Ethernet and CAT6A standards, this durable connector offers excellent EMI shielding, multiple LED options, and a wide temperature range from -55°C to +85°C. Its rugged design supports up to 750 mating cycles, ensuring long-term reliability in demanding environments. Perfect for data centers, industrial automation, and high-performance network infrastructure, this modular jack combines reliability with versatile configurations for seamless integration into your systems.
Get Amphenol RJE6018854A1 today—designed for high-speed data networks and industrial reliability.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS RJE6018854A1?
You can click on the BUY or RFQ button to purchase RJE6018854A1 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part RJE6018854A1?
You can download the RJE6018854A1 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of RJE6018854A1?
AMPHENOL COMMUNICATIONS SOLUTIONS
