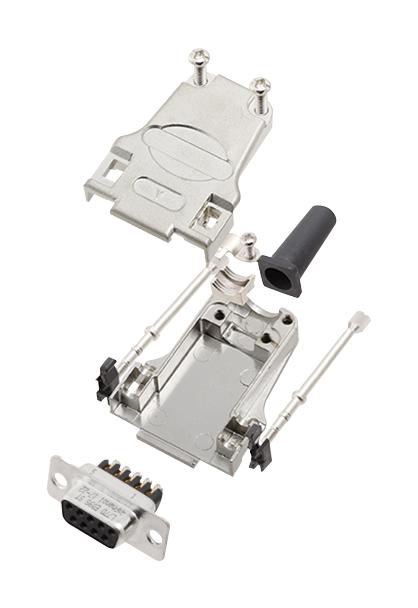

Amphenol-Communications-Solutions L17DTZF25LJSRGL77DB25SST Screw Type Connector
The full metal hood and screw type connector are designed for robust D-sub applications with excellent EMI shielding and re-openable features. Constructed from zinc with nickel plating, this connector withstands temperatures between -45°C to +105°C for the hood and -55°C to +85°C for the screw component, ensuring durability in various environments. Available in 9, 15, and 25-pin sizes, it accommodates AWG 18 wires, with contact plating of gold flash over nickel. The connector is suitable for high voltage and current, making it ideal for industrial and electronic equipment requiring reliable connections with high dielectric and EMI shielding performance.
Amphenol-Communications-Solutions L17DTZF25LJSRGL77DB25SST Screw Type Connector Specifications:
- Material: Zinc, Nickel Plated
- Operating Temperature: -45°C to +105°C for hood, -55°C to +85°C for screw
- Cable Entry: Top Entry
- Standard Cable O.D: 9-Way up to 6.5mm with grommet, 9.5mm without; 15-Way up to 6.5mm with grommet, 12.5mm without; 25-Way up to 8.0mm with grommet, 12.5mm without
- Insulator: Glass filled TP, UL94 V-0
- Shell: Steel, Tin Plated
- Contact Pins: Machined Brass, Gold flash over Nickel
- Wire Size: AWG 18
- Withstanding Voltage: >1000V RMS to 50Hz for 1 minute
- Current Rating: 7.5A
- Insulator Resistance: >5000 MΩ min.
- Features: Re-openable, EMI Shielding, Spring-Clip Mounted Jackscrews
- Size Options: 9, 15, 25
- Dimensions (A, B, C): 9-Way - 31.6, 39.5, 15.2mm; 15-Way - 40.0, 41.0, 15.2mm; 25-Way - 53.7, 47.5, 15.2mm
Buy the Buy Amphenol Screw Type Connector Part Number L17DTZF25LJSRGL77DB25SST Online
Purchase the Amphenol screw type connector online today and enjoy a reliable, high-performance connection solution suitable for industrial automation, electronic equipment, and high-frequency applications. This connector features sturdy zinc, nickel-plated metal housing, gold flash plated contacts for excellent conductivity, and versatile sizes to fit your specific needs. Its re-openable design ensures easy maintenance and secure connections, while its high voltage and current ratings guarantee safety and performance even in demanding environments. Shop now for fast delivery and expert support for your electronic and industrial projects.
Get Amphenol screw type connector today—designed for high reliability, excellent EMI shielding, and durable metal construction for industrial applications.
Frequently Asked Questions
Where can I buy Amphenol-Communications-Solutions L17DTZF25LJSRGL77DB25SST?
You can click on the BUY or RFQ button to purchase L17DTZF25LJSRGL77DB25SST from an authorized Amphenol-Communications-Solutions distributor.
How do I troubleshoot issues or seek technical support for part L17DTZF25LJSRGL77DB25SST?
You can download the L17DTZF25LJSRGL77DB25SST datasheet or visit the Amphenol-Communications-Solutions website for support.
Who is the manufacturer of L17DTZF25LJSRGL77DB25SST?
Amphenol-Communications-Solutions
