AMPHENOL COMMUNICATIONS SOLUTIONS 65801014LF Flexible Circuit Connector
The Clincher connector system offers a reliable and cost-effective solution for flexible circuitry applications, including FFC, FPC, and CIC. Its gas-tight 'clinch' termination ensures contamination-free connections, optimized for quick mass termination to unprepared cables. The system includes various connectors such as receptacles and pin connectors with polarized, latching, and waterproof features, compatible with industry-standard headers and pins. Designed for electronics, industrial, medical, and appliance markets, it provides high durability, low contact resistance, and easy inspection, making it ideal for demanding flexible circuit and flexible cable uses.
AMPHENOL COMMUNICATIONS SOLUTIONS 65801014LF Flexible Circuit Connector Specifications:
- Housing Material: Polypropylene UL 94 V-O, Blue
- Contact Body Material: Receptacles - Cupro-nickel; Pin Headers - Phosphor Bronze
- Contact Spring Material: Beryllium Copper
- Plating: Gold/GXT or lead-free 10u
- Electrical Resistance: Max 10 mΩ for main contacts, 20 mΩ after environmental exposure
- Insulation Resistance: ≥5000 MΩ
- Withstanding Voltage: 1000 VAC RMS
- Current Rating: 2.0 amps per contact
- Cable Compatibility: IPC Standard FC-220, Type A or B, tolerance class IV
- Cable Thickness: Max 0.33 mm (0.013 in.), including insulation
- Insulation Material: Mylar® or KAPTON® Polyimide
- Conductor Thickness: 0.076 ± 0.013 mm
- Conductor Width: 1.57 ± 0.07 mm
- Contact Durability: 100 mating cycles
- Cable Retention: 10 lbs per inch of cable width
- Mating Force: Max 300 grams per contact
- Latch Retention Force: Min 4 lbs
- Contact Retention: Min 30 grams per contact

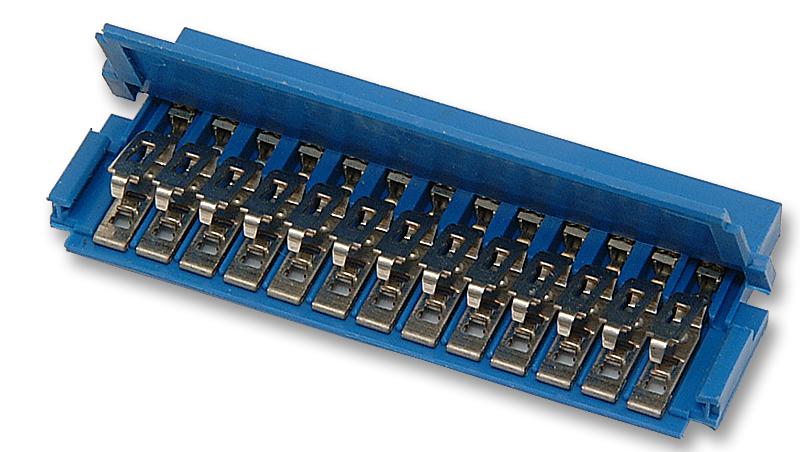

Buy the Buy FCI Clincher Connector Part Number 65801014LF Online
Experience seamless, reliable connections with the FCI Clincher connector system designed for flexible circuits and cables. Its gas-tight termination ensures contamination-free, durable contacts, ideal for medical devices, industrial equipment, and electronics. Compatible with industry-standard headers and pins, this connector provides easy inspection, high electrical performance, and robust mechanical features. Suitable for mass termination, it reduces assembly time and costs, making it an excellent choice for manufacturers seeking dependable, high-quality flexible circuit solutions. Order online today for fast delivery and consistent performance.
Order your FCI Clincher Part Number 65801014LF today and enjoy high-reliability flexible circuit connections suitable for demanding industrial and medical applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 65801014LF?
You can click on the BUY or RFQ button to purchase 65801014LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 65801014LF?
You can download the 65801014LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 65801014LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
