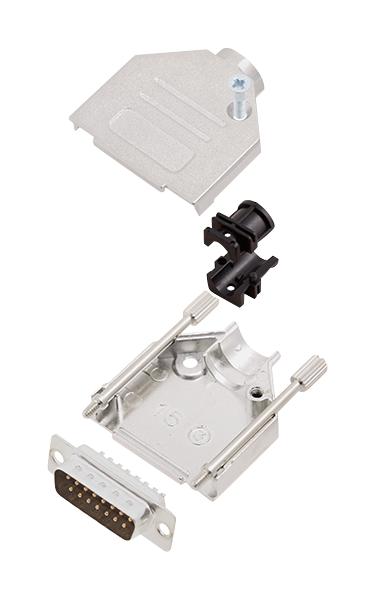

Amphenol-Communications-Solutions L17DTZK15L717SDA15P D-Sub Connector
The Umax K+D-Sub Solder Cup is a high-quality, re-openable D-Sub connector featuring a zinc nickel-plated hood, copper alloy contact pins with gold flash over nickel, and glass-filled thermoplastic insulators that meet UL94 V-0 standards. Designed for reliable connections, it supports operating temperatures from -40°C to +120°C and withstands voltages exceeding 1000V RMS at 50Hz. Its top-entry cable entry, thumbscrews, and EMI shielding ensure durability and secure attachments, suitable for various industrial and electronic applications.
Amphenol-Communications-Solutions L17DTZK15L717SDA15P D-Sub Connector Specifications:
- Material: Zinc, Nickel Plated
- Operating Temperature: -40°C to +120°C
- Cable Entry: Top Entry
- Cable O.D: Up to 11.5mm
- Insulator: Glass filled thermoplastic, UL94 V-0
- Shell: Steel, Tin Plated
- Contact Pins: Copper Alloy
- Contact Plating: Gold Flash over Nickel
- Voltage Rating: >1000V RMS at 50Hz
- Current Rating: 5A
- Insulator Resistance: >5000MQ min
- Grommet Sizes: DTZK 9-25-37
- Size 9-way: 31.0 x 39.5 x 15.0 mm
- Size 15-way: 39.5 x 41.5 x 15.0 mm
- Size 25-way: 53.5 x 48.5 x 16.0 mm
- Size 37-way: 71.0 x 53.0 x 15.0 mm
- Features: Re-openable, 360° EMI Shielding
Buy the Amphenol Series K+D-Sub Solder Cup: L17DTZK15L717SDA15P
Order the D-Sub Connector designed for secure, high-performance electronic connections. Featuring EMI shielding, gold-plated contacts for excellent conductivity, and a robust zinc nickel-plated hood, this connector ensures durability in demanding environments. Its top-entry cable design and re-openable feature make installation and maintenance easy, while operating temperature range from -40°C to +120°C supports a wide variety of applications. Whether for industrial automation or sophisticated electronic systems, this solder cup connector provides reliable, high-quality performance for your needs.
Get Amphenol K+D-Sub Solder Cup today—built for secure, EMI-shielded, reliable electronic connections.
