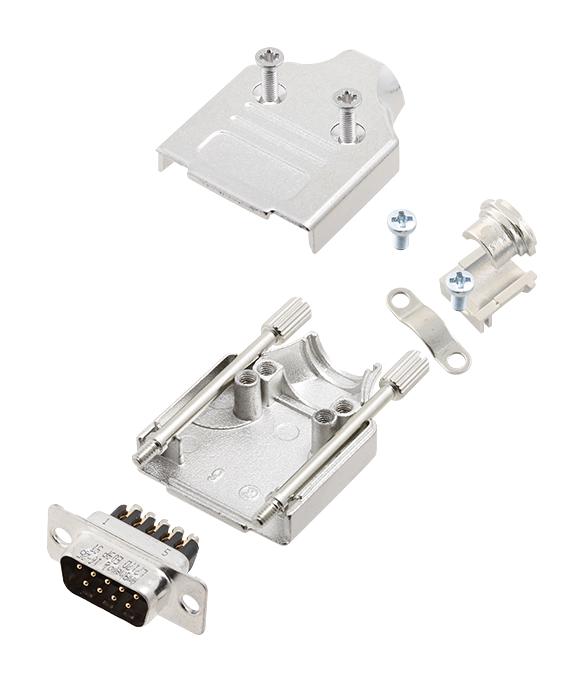

Amphenol-Communications-Solutions L17MHDM25L717DB25PST D-Sub Connector
The Umax MHDM Screw Type Connector is a versatile D-Sub connector kit available in 9, 15, and 25-pin sizes. It features a zinc, nickel-plated hood, glass-filled thermoplastic insulator with UL94 V-O rating, and a steel shell with tin plating for durability. The connector supports wire sizes up to AWG 18, with gold flash over nickel contact plating, and can operate within temperatures from -55°C to +85°C. It offers >1000V RMS withstand voltage, 7.5A current rating, and 360° EMI shielding, making it suitable for robust electronic and industrial applications.
Amphenol-Communications-Solutions L17MHDM25L717DB25PST D-Sub Connector Specifications:
- Material: Zinc, Nickel plated hood
- Operating Temperature: -40°C to +120°C
- Cable Entry: Top Entry
- Thumbscrews: UNC 4-40
- Cable O.D: Up to 13mm
- Insulator: Glass filled thermoplastic, UL94 V-O
- Shell: Steel, Tin plated
- Contact Pins: Machined brass with gold flash over nickel plating
- Wire Size: AWG 18
- Contact Resistance: >5000MQ min.
- Withstanding Voltage: >1000V RMS to 50Hz for 1 minute
- Current Rating: 7.5A
- Size Options: 9, 15, 25-way versions
- Dimensions (Size 25): Length 54.5mm, Width 49.5mm, Height 15.4mm
Buy the Umax Series MHDM D-Sub Connector: L17MHDM25
Purchase the Umax MHDM25 screw-type D-Sub connector online for secure, high-quality connections in industrial and electronic projects. Featuring gold-plated brass pins, robust steel shell, and EMI shielding, this connector is designed for reliable performance up to 85°C temperatures and withstands over 1000V RMS voltage. Available in 25-pin configuration, it supports wire O.D up to 13mm and offers easy top entry cable connection. Enhance your equipment with durable, professional-grade connectors designed for long-lasting service life and optimal signal integrity.
Get Umax MHDM25 today—built for durability with gold-plated contacts and EMI shielding for reliable electronic connections.
Frequently Asked Questions
Where can I buy Amphenol-Communications-Solutions L17MHDM25L717DB25PST?
You can click on the BUY or RFQ button to purchase L17MHDM25L717DB25PST from an authorized Amphenol-Communications-Solutions distributor.
How do I troubleshoot issues or seek technical support for part L17MHDM25L717DB25PST?
You can download the L17MHDM25L717DB25PST datasheet or visit the Amphenol-Communications-Solutions website for support.
Who is the manufacturer of L17MHDM25L717DB25PST?
Amphenol-Communications-Solutions
