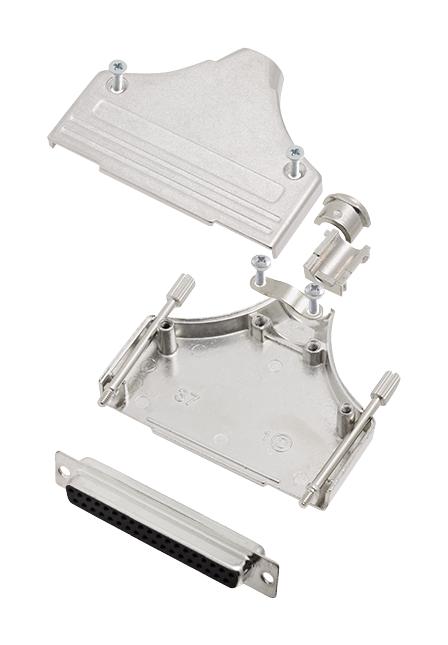

AMPHENOL COMMUNICATIONS SOLUTIONS L17MHDM37L77SDC37S D-Sub Connector
This high-quality D-Sub connector features a robust zinc, nickel-plated shell and glass-filled TP insulator rated for -40°C to +120°C. It offers top entry cable access with an UNC 4-40 Thumbscrew for secure connection and supports cable O.D. up to 13mm. The solder cup contacts are stamped and formed, with gold flash over nickel plating providing excellent conductivity and corrosion resistance. Suitable for various industrial applications, it is re-openable and offers 360° EMI shielding, ensuring reliable signal integrity in demanding environments.
AMPHENOL COMMUNICATIONS SOLUTIONS L17MHDM37L77SDC37S D-Sub Connector Specifications:
- Shell Material: Zinc, Nickel Plated
- Insulator Material: Glass filled TP, UL94 V-0
- Operating Temperature: -40°C to +120°C
- Cable Entry: Top Entry
- Thumbscrews: UNC 4-40 (Standard)
- Cable O.D: Up to 13mm
- Contact Material: Copper Alloy
- Contact Plating: Gold Flash over Nickel
- Withstanding Voltage: >1000V Rms to 50 Hz for 1 minute
- Current Rating: 5A
- Insulator Resistance: >5000 MΩ min.
- Features: Re-openable, 360° EMI Shielding
- Size Options: 9, 15, 25, 37 ways
- Size Dimensions (e.g., 37-way): Dim A 70.7mm, Dim B 54.3mm, Dim C 15.4mm
Buy the Buy Amphenol D-Sub Connector Part Number L17MHDM37 Online
Purchase the high-quality D-Sub connector from Amphenol online today. Featuring a zinc, nickel-plated shell, top entry cable access, gold-flash contacts, and EMI shielding, this connector ensures reliable performance across temperature ranges from -40°C to +120°C. Suitable for industrial environments, it supports cables up to 13mm O.D., is re-openable, and rated for over 1000V. Protect your equipment with this durable and secure connection solution, available in multiple sizes to suit your project needs.
Order your Amphenol series L17MHDM37 high-reliability D-Sub connector today and secure dependable signal integrity in critical industrial applications.
