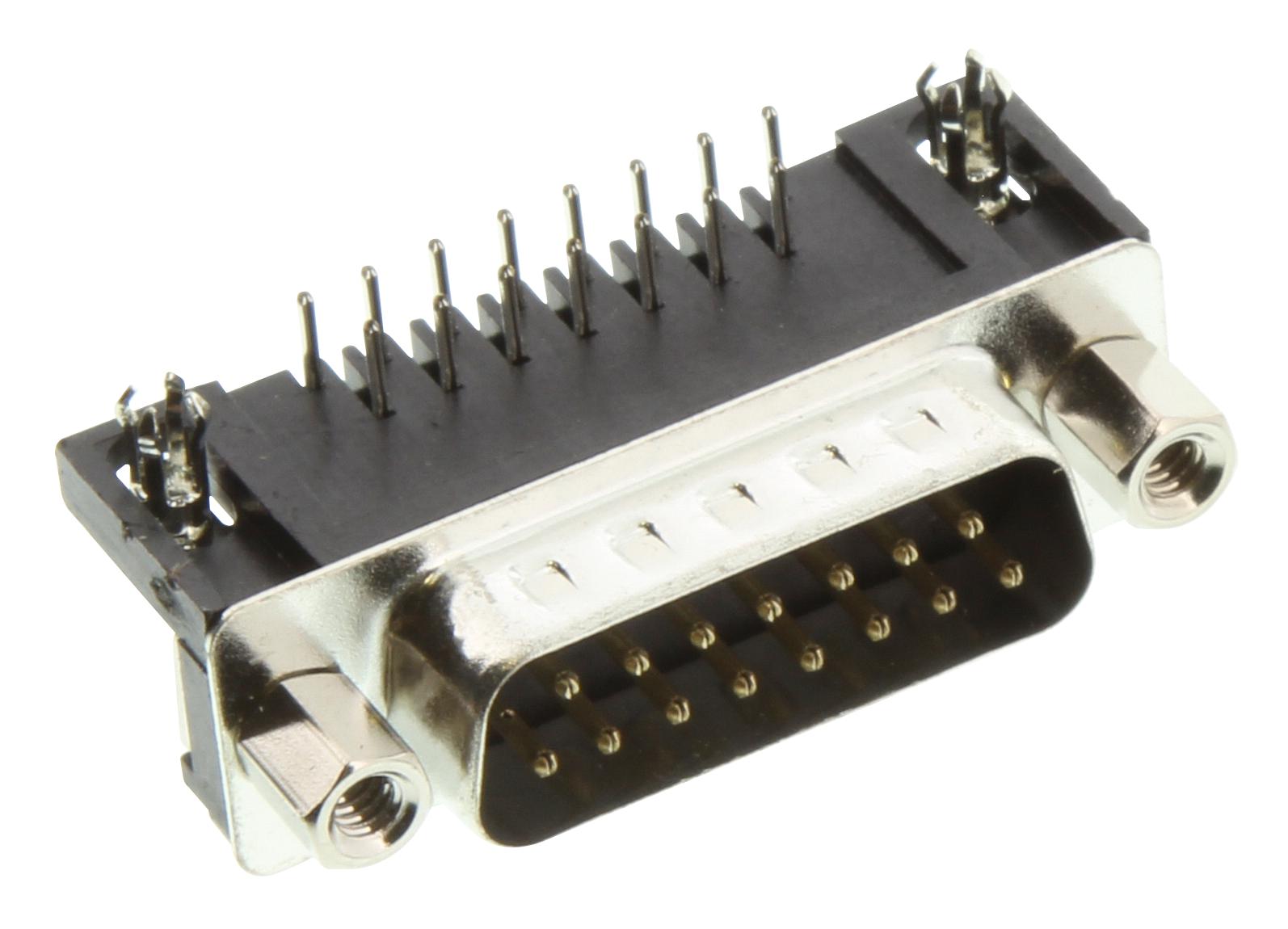

AMPHENOL COMMUNICATIONS SOLUTIONS L717SDA15PA4CH4F Industrial D-Sub Connector
The Amphenol SD series features precision-formed contacts, 4-finger boardlocks, and robust shell options suitable for industrial, telecommunications, and various industry-standard applications. Designed for reliability, this series complies with MIL 24308 and NFC 93425-HES standards, offering high current and voltage ratings, excellent insulation resistance, and enduring environmental resistance such as salt spray. Its versatile mounting options include front and rear screwlocks, with multiple shell sizes and configurations like European and MIL footprints. Ideal for high-performance connectors demanding durability and precision in demanding environments.
AMPHENOL COMMUNICATIONS SOLUTIONS L717SDA15PA4CH4F Industrial D-Sub Connector Specifications:
- Current rating: 250V AC/rms 50Hz, 1900V AC/rms 50Hz for one minute
- Voltage rating: 250V AC/rms, 1900V AC/rms withstand voltage
- Contact resistance: 15mΩ max
- Assembly forces: insertion 0.54kg, withdrawal 0.06kg
- Operating temperature: -55°C to +125°C
- Salt spray resistance: 24 hours
- Shell material: Steel with optional tin plating or gold flash
- Insulator: Glass-filled thermoplastic, UL 94-0
- Pin contact: Brass, selected gold in mating area; 2.54μm min. tin on termination
- Socket contact: Phosphor bronze, gold in mating area, tin on termination, nickel plated
- Boardlock: Brass with 2.54μm min. nickel plating
- Dimensions and footprint: MIL and European styles, detailed measurements for various contact counts
- Mounting options: front/rear screwlocks, threaded rear inserts, PCB locks
- Compliance: RoHS
Buy the Amphenol Series SD Connectors: L717SDA15PA4CH4F
Purchase the Amphenol SD series connector online today and benefit from high precision formed contacts, versatile mounting options, and premium environmental resistance per industry standards. Designed for demanding environments, this high-quality connector ensures reliable electrical connections, robust construction, and long-term durability. Perfect for industrial, telecom, and commercial applications, it offers easy installation with front and rear screwlock options, compliance with RoHS, and detailed specifications for maximum performance in your electronic systems. Order now for trusted quality and fast delivery.
Buy Amphenol SD connectors now and experience unmatched reliability and performance in industrial and telecom applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS L717SDA15PA4CH4F?
You can click on the BUY or RFQ button to purchase L717SDA15PA4CH4F from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part L717SDA15PA4CH4F?
You can download the L717SDA15PA4CH4F datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of L717SDA15PA4CH4F?
AMPHENOL COMMUNICATIONS SOLUTIONS
