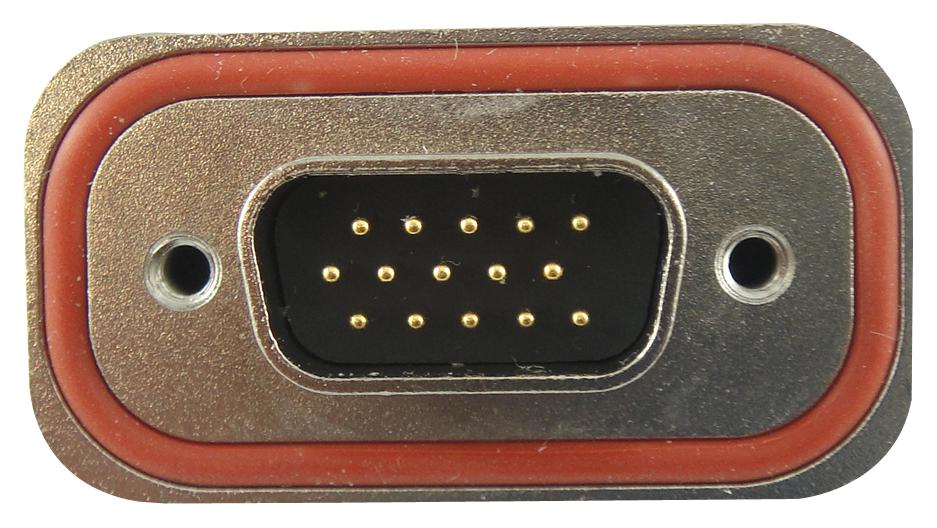

AMPHENOL COMMUNICATIONS SOLUTIONS MDBRE15PMAN0 Rugged D-Sub Connector
The Amphenol MDBR series Rugged D-sub connectors are designed for harsh environments, offering IP68 protection, high durability, and high-quality gold-plated contacts. Available in 9, 15, and 26 positions with vertical PCB tails and solder cups, they suit outdoor, industrial, and portable device applications. Constructed with a die cast zinc alloy shell and thermoplastic housing, these connectors support up to 5A current per contact, 200V maximum voltage, and operate reliably from -40°C to +105°C. They withstand 500 mating cycles, ensuring longevity in demanding conditions.
AMPHENOL COMMUNICATIONS SOLUTIONS MDBRE15PMAN0 Rugged D-Sub Connector Specifications:
- Connector Type: Rugged D-sub
- Positions: 9, 15, 26
- Materials: Copper alloy contacts, zinc alloy shell, thermoplastic housing
- Plating: Gold over nickel
- Current Rating: 5A for standard density, 3A for high density
- Maximum Voltage: 200V DC / 125V AC
- Contact Resistance: 20 mΩ max
- Insulation Resistance: 5 GΩ at 200V DC
- Dielectric Withstanding Voltage: 1500V DC minimum
- Operating Temperature: -40°C to +105°C
- Durability: 500 mating cycles
- Protection Level: IP68, IEC 60529
- Process Resistance: Lead-free wave soldering compatible
- RoHS Compliant
Buy the Buy Amphenol Rugged D-Sub Connector Part Number MDBRE15PMAN0 Online
Secure your application with the rugged D-sub connector from Amphenol, designed for harsh environments and demanding conditions. Featuring high IP68 protection, gold-plated contacts, and multiple configurations (9, 15, 26 positions), this connector ensures long-lasting performance. Made with a zinc alloy shell and high-temp thermoplastic housing, it withstands extreme temperatures from -40°C to +105°C. Suitable for outdoor equipment, industrial automation, and portable devices, it supports up to 5A current per contact and withstands 500 mating cycles, making it the ideal choice for reliable, high-performance connections in tough environments.
Buy Amphenol MDBRE15PMAN0 now and experience unmatched durability and reliable performance in demanding outdoor and industrial environments.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS MDBRE15PMAN0?
You can click on the BUY or RFQ button to purchase MDBRE15PMAN0 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part MDBRE15PMAN0?
You can download the MDBRE15PMAN0 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of MDBRE15PMAN0?
AMPHENOL COMMUNICATIONS SOLUTIONS
