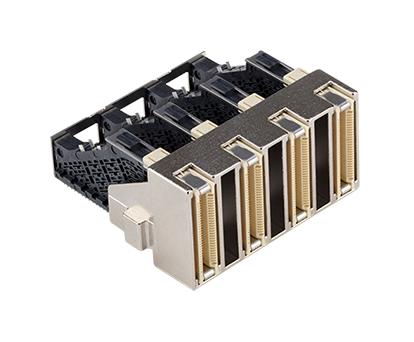

AMPHENOL COMMUNICATIONS SOLUTIONS ME2005602311041 High-Speed Card Edge Connector
Mini Cool Edge 0.60mm connectors are high-density, high-speed card edge connectors designed for small form factor systems and advanced applications. Supporting multiple configurations like vertical, right angle, and straddle mount, these connectors meet SFF-TA-1002, Gen Z, EDSFF, and OCP NIC 3.0 standards. They are ideal for SSDs, network interface cards, and add-in cards. With selective high-speed transmission capabilities up to 56GT/s, they feature gold over nickel contact finish, copper alloy base, and various pin counts, offering reliability and space efficiency for demanding data center and industrial applications.
AMPHENOL COMMUNICATIONS SOLUTIONS ME2005602311041 High-Speed Card Edge Connector Specifications:
- Contact Base Metal: Copper Alloy
- Contact Area Finish: Gold over Nickel
- Housing Material: High temperature thermoplastic (UL 94V-0)
- Electrical Resistance: 30mΩ max. initial; 5mΩ max. after testing
- Dielectric Withstanding Voltage: 300VDC
- Temperature Life: 105°C for 168 hours
- Mating Cycles: 200 cycles
- Mating Force: 0.75N per pin max
- Unmating Force: 0.12N per pin min
- Power Supply Capacity: up to 72W
- Environmental Tests: Humidity 500h at 25°C/80-95% RH, Thermal Shock -55°C to +85°C, 7-year field life simulated
- Signal Pin Pitch: 0.60mm
- Pin Options: 56, 84, 140, 168, 280 pins
- Supported Speed: 32GT/s to 56GT/s (up to 112G PAM4)
- Packet Packaging: Tube (orthogonal), Tray (straddle mount)
- Mounting Types: Vertical, right angle, straddle, orthogonal
- Maximum Power: 72W
Buy the Amphenol ME2005602311041 – Reliable High-Speed Connectors for Industrial Applications
Purchase the Amphenol high-density Mini Cool Edge 0.60mm connectors online today to ensure reliable high-speed connections in your small form factor systems. Designed for SSDs, NICs, and PCIe modules, these connectors support speeds up to 56GT/s, multiple mounting configurations, and various pin counts. With durable materials, gold over nickel contacts, and tested environmental resilience, they deliver high performance and space-saving solutions. Get your project connected with these premium connectors available for fast online ordering and prompt delivery.
Order your Amphenol Series ME2005602311041 connectors today and give your projects the dependable high-speed connectivity they deserve.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS ME2005602311041?
You can click on the BUY or RFQ button to purchase ME2005602311041 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part ME2005602311041?
You can download the ME2005602311041 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of ME2005602311041?
AMPHENOL COMMUNICATIONS SOLUTIONS
