AMPHENOL COMMUNICATIONS SOLUTIONS ND9BCA2A0B industrial connector
The ND9BCA2A0B is a robust industrial connector designed for IoT and industrial automation applications. It features a 10mm pitch, high-speed data transfer up to 10G Ethernet with PoE capability, and excellent EMI shielding for noisy environments. Made with stainless steel and thermoplastic insulators, it supports up to 5000 mating cycles, with a current rating of 1.5A and voltage rating of 50V AC. Suitable for factory automation, robotics, healthcare, and building automation, ensuring secure, durable, and high-performance connections.
AMPHENOL COMMUNICATIONS SOLUTIONS ND9BCA2A0B industrial connector Specifications:
- External Shields: Stainless steel, nickel plated (plugs) or tin plated (receptacles)
- Insulators: Thermoplastic, UL94V-0
- Contacts: Copper alloy plated with gold over nickel
- Current Rating: 1.5A at 40°C
- Voltage Rating: 50V AC max., 60V DC max.
- Durability: 5000 mating cycles
- Insertion/Withdrawal Force: 25N max.
- Pull-Out Force: 80N min.
- Mechanical Shock: 300m/s², 11ms
- Vibration: 10Hz–500Hz, 0.35mm amplitude
- Operating Temperature: -55°C to +85°C
- Shielding Resistance: 100mΩ max.
- Insulation Resistance: 500MΩ min. @ 500V DC
- IEC Compliance: IEC61076-3-124, RoHS, UL pending

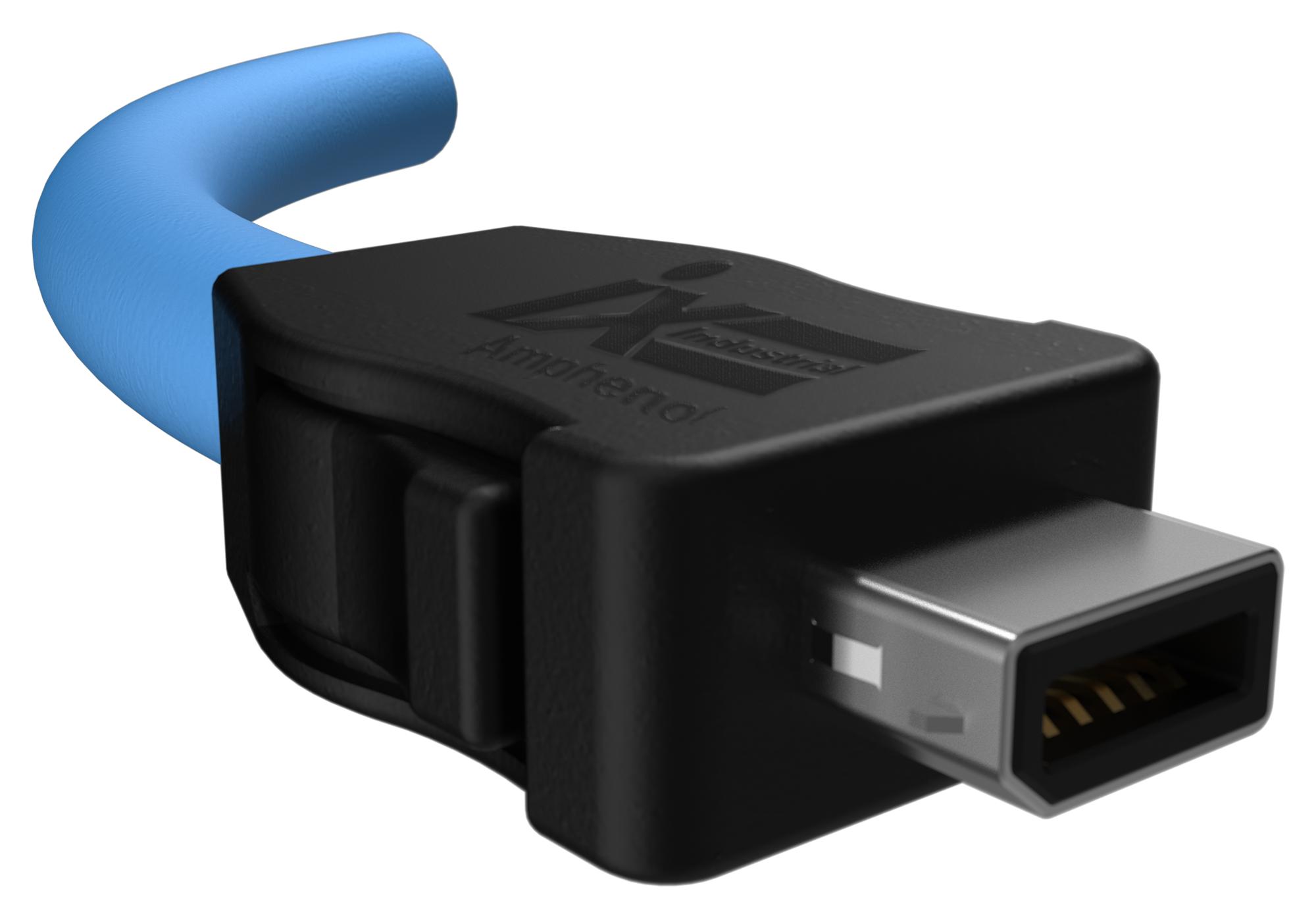

Buy the Amphenol Series P20 Industrial Connector: ND9BCA2A0B
Purchase the Amphenol Series P20 ND9BCA2A0B online today and experience secure, high-performance connectivity ideal for factory automation, robotics, IoT, and healthcare. Its durable construction, corrosion-resistant materials, and high mating cycle capability ensure long-term reliability. This connector supports 10G Ethernet with PoE, EMI shielding, and multiple mounting options for diverse industrial environments. Easy to install with field termination options like IDC or solder, making it perfect for high-volume assembly and customized cabling. Elevate your industrial connectivity now.
Order your Amphenol Series P20 ND9BCA2A0B industrial connector today and ensure reliable, high-speed IoT and industrial automation connectivity for your projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS ND9BCA2A0B?
You can click on the BUY or RFQ button to purchase ND9BCA2A0B from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part ND9BCA2A0B?
You can download the ND9BCA2A0B datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of ND9BCA2A0B?
AMPHENOL COMMUNICATIONS SOLUTIONS
