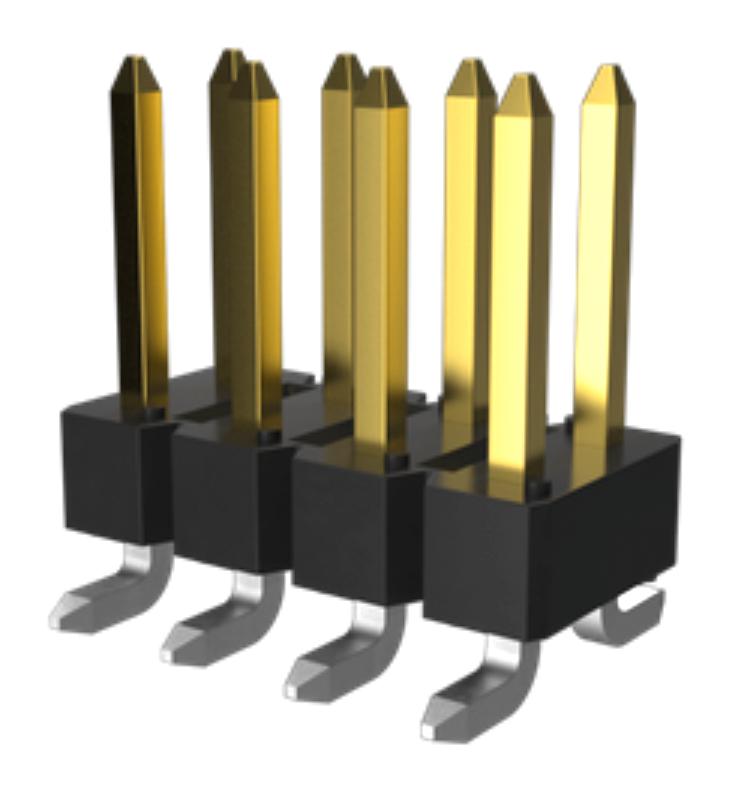

AMPHENOL COMMUNICATIONS SOLUTIONS 54202G0805ALF Unshrouded Header
The BergStik 2.54mm unshrouded headers are versatile connectors suitable for board-to-board, wire-to-board, and cable-to-board applications. Available in surface-mount and through-hole versions, these headers feature high-temperature thermoplastic housing with UL94V-0 flammability rating, phosphor-bronze pins with gold or tin plating over nickel, and robust electrical performance with 3A per contact current rating, 5000MQ insulation resistance, and 1500V dielectric withstand voltage. They accommodate various configurations, including straight, right-angle, stacking, and pin-in-paste options, and support multiple soldering processes with RoHS compliance and up to 100 mating cycles, ensuring reliability in industrial electronics.
AMPHENOL COMMUNICATIONS SOLUTIONS 54202G0805ALF Unshrouded Header Specifications:
- Housing Material: High temperature thermoplastic, Black
- Flammability Rating: UL94V-0
- Pin Material: Phosphor-bronze
- Plating: Gold or Tin over 1.27μm Nickel
- Current Rating: 3A per contact
- Insulation Resistance: 5000MQ min
- Dielectric Withstanding Voltage: 1500V
- Operating Temperature: -65°C to +125°C (standard) or -65°C to +130°C (pin-in-paste)
- Mechanical Retention Force: 9N min.
- Compatible with wave, vapor-phase, and IR reflow soldering processes
- RoHS compliant
- Various configurations including straight, right-angle, stacking, and pin-in-paste
- Supported in surface-mount and through-hole versions, with optional tape and reel packaging
Buy the BrandName 54202G0805ALF – Reliable Connector for Industrial Applications
Purchase the BrandName 54202G0805ALF unshrouded header online today and benefit from high-quality, RoHS-compliant electrical connectors suitable for various industrial applications. Designed with high-temperature thermoplastic housing, these connectors support multiple soldering techniques and offer up to 100 mating cycles. Their robust gold or tin plating ensures excellent electrical performance, while compatibility with wave, vapor-phase, and IR reflow processes simplifies assembly. Whether for PCB or cable connections, these headers deliver reliable performance, flexibility, and cost efficiency for manufacturing or repair projects.
Buy BrandName 54202G0805ALF now and experience unmatched reliability and performance with versatile configurations for industrial electronic interconnections.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 54202G0805ALF?
You can click on the BUY or RFQ button to purchase 54202G0805ALF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 54202G0805ALF?
You can download the 54202G0805ALF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 54202G0805ALF?
AMPHENOL COMMUNICATIONS SOLUTIONS
