A Premier B2B Part Search

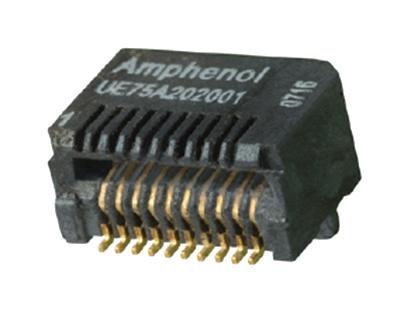

AMPHENOL COMMUNICATIONS SOLUTIONS UE75A205000T SFP Connector
The Amphenol ICC SFP connector series supports applications up to 6Gb/s per channel, designed to maximize space on PCB with low-cost, compact assembly. Made from glass-reinforced, lead-free thermo plastic with phosphor bronze contacts, the cages feature enhanced transceiver mating tabs in press-fit or solder tail options. They include light pipes indicating link status with LEDs, and are rated for durability of 250 mating cycles. Suitable for cellular infrastructure, network interface, servers, and storage solutions, these connectors operate from -55°C to +85°C and comply with RoHS and halogen-free standards, ensuring reliable performance in demanding environments.
AMPHENOL COMMUNICATIONS SOLUTIONS UE75A205000T SFP Connector Specifications:
- Material: Housing made of glass reinforced, lead free thermoplastic
- Contacts: Phosphor bronze with gold or matte tin plating
- Electrical: Operating voltage 30 VDC, operating current 0.5 A per contact
- Impedance: Differential impedance 100Ω±10Ω
- Mechanical: 250 mating cycles, max mating force 50 N
- PCB Thickness: 1.45 mm (solder-post and press-fit), 3.00 mm belly to belly
- Temperature Range: -55°C to +85°C
- Environmental: RoHS and halogen-free
- Connector options include light pipes, dust covers, heat sinks, with various plating options
Buy the Buy Amphenol SFP Part Number UE75A205000T Online
Purchase the Amphenol SFP connector series online today for high-speed data transmission up to 6Gb/s per channel. These connectors are engineered for longevity, with 250 mating cycles, and are suitable for demanding networking, server, and storage environments. Designed with lightweight, glass reinforced thermoplastic housings and corrosion-resistant contacts, they provide reliable performance in temperatures ranging from -55°C to +85°C. Enhance your project with proven quality, easy installation options, LED status indicators, and conforming to RoHS and halogen-free standards for environmentally friendly operation.
Order your Amphenol Series UE75A205000T SFP connector today and ensure reliable high-speed connectivity with durable, space-efficient design.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS UE75A205000T?
You can click on the BUY or RFQ button to purchase UE75A205000T from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part UE75A205000T?
You can download the UE75A205000T datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of UE75A205000T?
AMPHENOL COMMUNICATIONS SOLUTIONS
