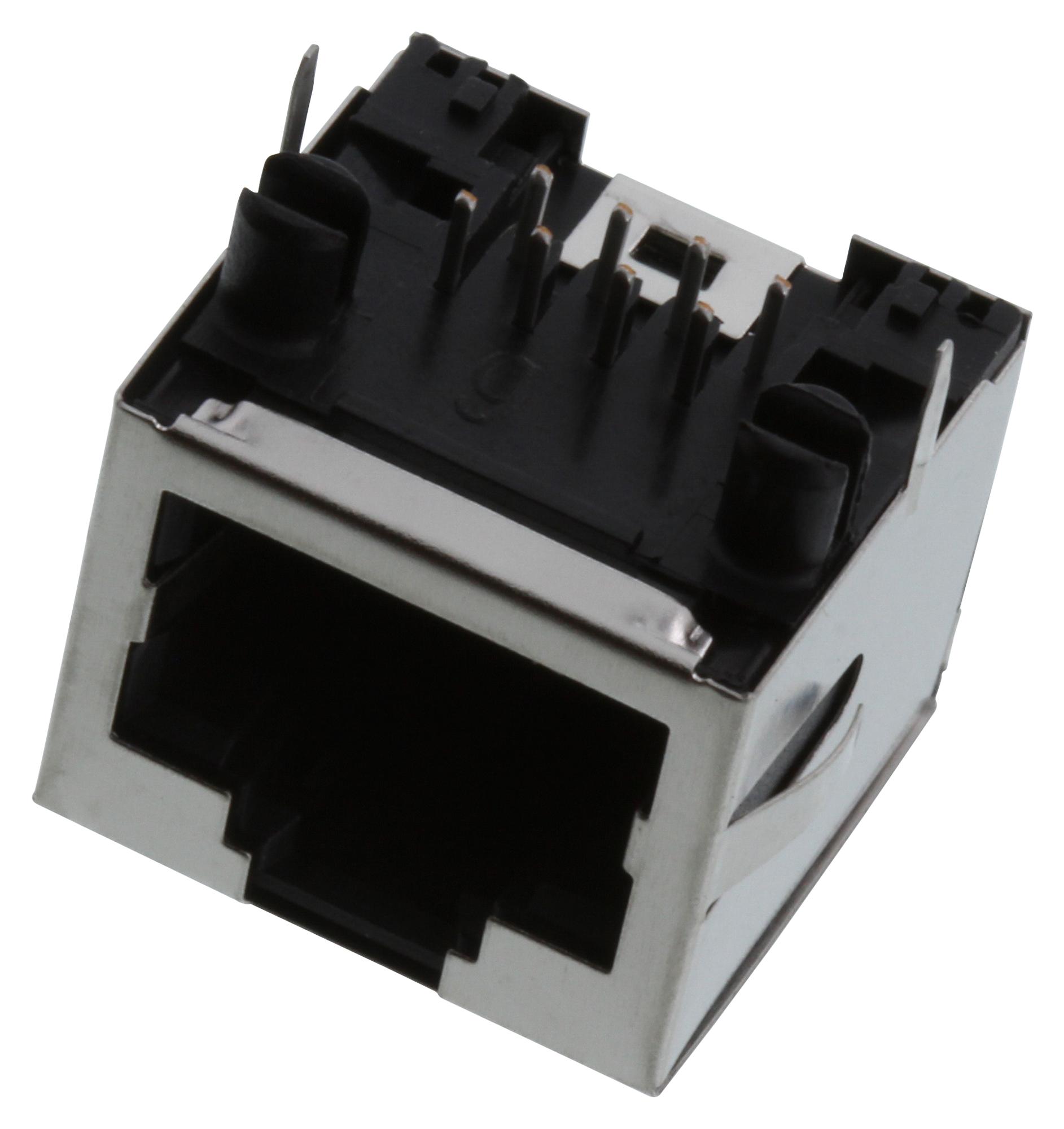

AMPHENOL COMMUNICATIONS SOLUTIONS RJHSE5180 Ethernet Modular Jack
The RJHSE series of inverted modular jacks are designed for reliable Ethernet connections in networking, telecom, and industrial applications. Featuring options with shield and LEDs, these connectors support EMI shielding for enhanced interference protection and include LED indicators for link activity and network speed. Suitable for use in data centers, security systems, servers, and consumer electronics, they comply with IEC 60603-7 standards. The connectors are RoHS compliant, durable for up to 750 mating cycles, and operate in temperatures from -40°C to +85°C, making them ideal for demanding environments.
AMPHENOL COMMUNICATIONS SOLUTIONS RJHSE5180 Ethernet Modular Jack Specifications:
- Electrical Resistance: 20 mQ max
- Insulation Resistance: 500 MQ minimum at 500V DC
- Voltage Rating: 125 Volts AC
- Current Rating: 1.5 Amps per contact
- Operating Temperature: -40°C to +85°C
- Durability: 750 mating cycles
- Material: High Temp thermoplastic insulator, phosphor bronze contacts with gold plating
- Shield Material: Stainless Steel with tin finish
- LED Forward Voltage: 3.4 Volts max. @ 20mA
- LED Wavelengths: Red 628 nm, Green 570 nm, Yellow 587 nm
- Mating Force: 5 lbs max
- Pull Force: 20 lbs min
- Soldering: Wave soldering at 260°C for 5 seconds
- RoHS Compliant, UL certified
Buy the Buy Amphenol RJHSE Part Number RJHSE5180 Online
Order the Amphenol RJHSE RJHSE5180 now for top-quality Ethernet modular jacks with EMI shielding, LED indicators for network activity, and durability for industrial and commercial applications. These connectors support IEEE PoE standards and operate reliably in temperatures from -40°C to +85°C. With up to 750 mating cycles, RoHS compliance, and high-quality materials, they ensure long-term performance in networking, data centers, security systems, and more. Purchase online now for fast delivery and trusted performance in demanding environments.
Get Amphenol RJHSE RJHSE5180 today—built for EMI shielding and long-lasting Ethernet connectivity.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS RJHSE5180?
You can click on the BUY or RFQ button to purchase RJHSE5180 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part RJHSE5180?
You can download the RJHSE5180 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of RJHSE5180?
AMPHENOL COMMUNICATIONS SOLUTIONS
