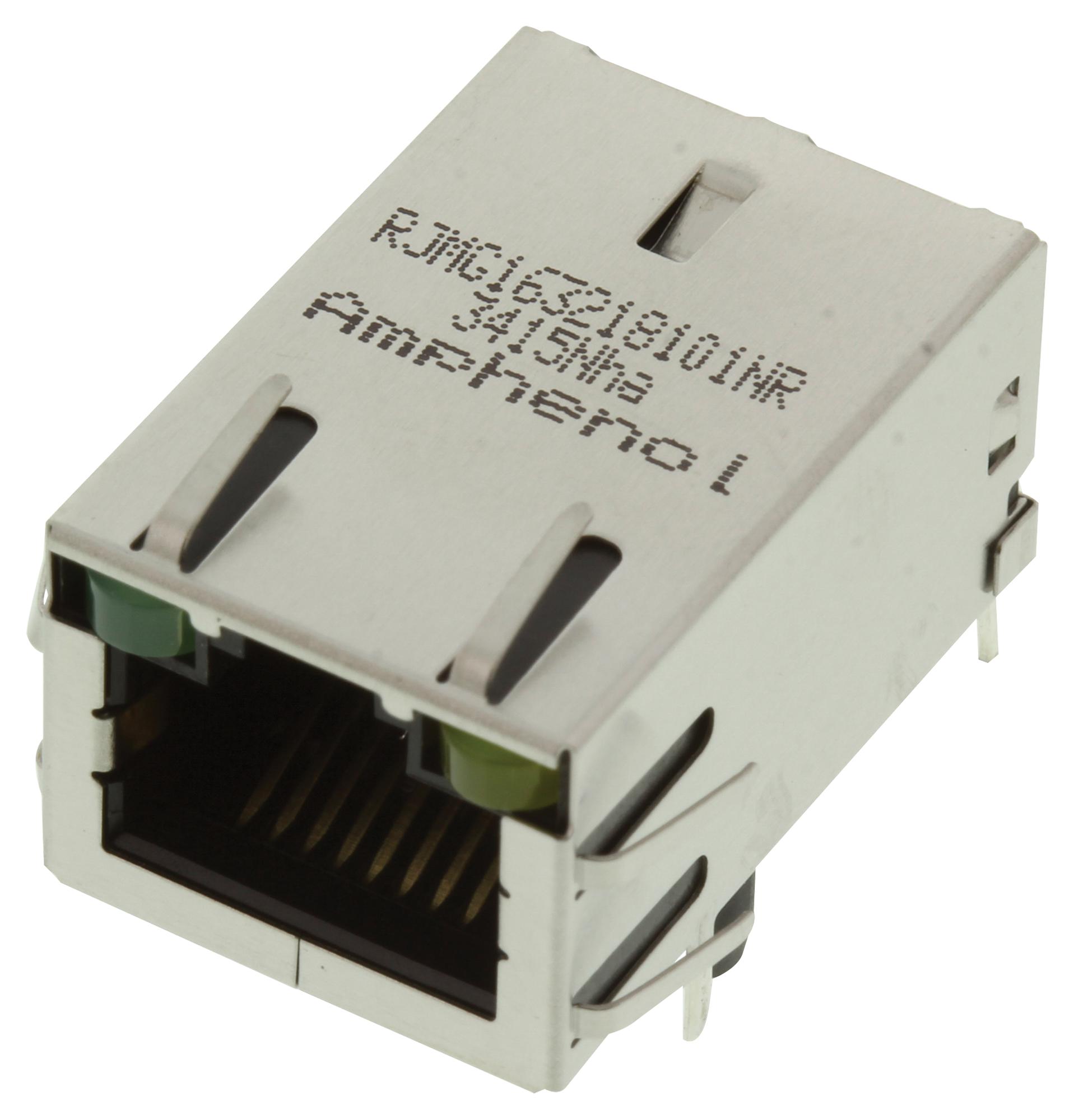

AMPHENOL COMMUNICATIONS SOLUTIONS RJMG163218101NR Ethernet Modular Jack
The RJMG163218101NR is a high-performance magnetic RJ45 Ethernet modular jack that supports data rates of 100BASE-T, 1G, 2.5G, and 10G. Made with a durable black thermoplastic insulator and gold-plated contacts, it includes nickel-plated copper alloy shielding for EMI protection. Equipped with two LEDs (yellow and green) for status indication, and supporting Power over Ethernet, surge protection, and compliance with IEEE 802.3ab standards, it ensures reliable network connections. Suitable for cable categories up to Cat 6a, operating between 0°C and 75°C, with extended temp range up to -40°C to 85°C, it features a 1:1 transmit ratio, 4 resistors at 75Ω, and can handle surface soldering at 220°C for 10 seconds, ideal for advanced networking and industrial systems.
AMPHENOL COMMUNICATIONS SOLUTIONS RJMG163218101NR Ethernet Modular Jack Specifications:
- Housing: Black thermoplastic polyester
- Contacts: Gold-plated phosphor bronze
- Shielding: Nickel-plated copper alloy
- LED Indicators: Yellow and green for status
- Supports Data Rates: 100BASE-T, 1G, 2.5G, 10G
- Standards: IEEE 802.3ab
- Operating Temperature: 0°C to 75°C
- Extended Temperature Range: -40°C to 85°C
- Supports PoE and surge protection
- Physical: 1:1 transmit ratio, 4 resistors at 75Ω, 1000pF (2kV) transmit shunt choke
- Soldering Temperature: 220°C for 10 seconds
- Compatible with cable categories up to Cat 6a
- Mechanical durability: 750 mating cycles
- Environments: industrial, telecommunications, medical, consumer electronics
Buy the Amphenol Series RJMG Ethernet Jack: RJMG163218101NR
Purchase the Amphenol RJMG163218101NR Ethernet modular jack online today for high-speed data transfer, PoE support, and robust EMI protection. This reliable connector is designed for network infrastructure, industrial systems, and professional communications. Its durable construction withstands demanding environments, provides surge protection, and supports categories up to Cat 6a. With LED indicators for easy monitoring, it ensures seamless connectivity and long-lasting performance. Buy now to upgrade your network with a trusted, high-quality modular jack built for performance and durability.
Get Amphenol RJMG163218101NR today—built for reliable high-speed networking, industrial durability, and PoE support.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS RJMG163218101NR?
You can click on the BUY or RFQ button to purchase RJMG163218101NR from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part RJMG163218101NR?
You can download the RJMG163218101NR datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of RJMG163218101NR?
AMPHENOL COMMUNICATIONS SOLUTIONS
