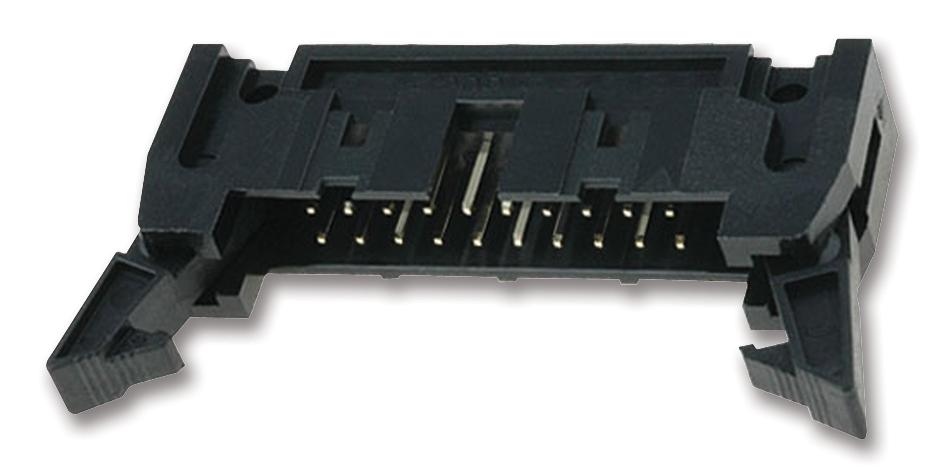

AMPHENOL COMMUNICATIONS SOLUTIONS T816140A1R102CEU Latch Header
This is a 2.54mm pitch latch header designed for precise electronic connections. It features a robust brass contact with optional gold or tin plating over 50 micro inches of nickel, ensuring excellent conductivity and corrosion resistance. Available in various configurations, including straight or right-angled termination, and with fix or long latches for secure attachment. Constructed with PBT+25% G.F insulator complying with UL 94V-0, it supports a maximum current of 3.0A, voltage of 250V AC/DC, and operates within -40°C to +105°C. Ideal for reliable PCB connections and industrial automation.
AMPHENOL COMMUNICATIONS SOLUTIONS T816140A1R102CEU Latch Header Specifications:
- Pitch: 2.54mm
- Housing Color: Grey or Black
- No of Positions: 06, 08, 10, 14, 16, 18, 20, 24, 26, 32, 40, 64
- Contact Material: Brass
- Plating Options: Gold flash over 50u" Ni, 15u" gold over 50u" Ni, 30u" gold over 50u" Ni, full tin over 50u" Ni
- Insulator: PBT+25% G.F, UL 94V-0
- Electrical Resistance: 20 mΩ max. at 1A
- Insulation Resistance: 1000 MΩ min. at 500V/DC
- Dielectric Voltage: 500 VAC RMS, 60Hz for one minute
- Current Rating: 3.0A max.
- Voltage Rating: 250V AC/DC
- Operating Temperature: -40°C to +105°C
- Contact Thickness: Over 50u" Ni
- Termination: Straight THT or Right Angled, Latch Fixed or Long Latch
- Dimensions: PINS: 2.54mm pitch, length varies with position count, e.g., 6 positions approx. 5.08mm, 64 positions approx. 78.74mm
Buy the Buy Berg 2.54mm Pitch Latch Header Part Number T816140A1R102CEU Online
Purchase the Berg latch header series T816140A1R102CEU online now for durable and versatile PCB connections. Featuring high-quality brass contacts with optional gold or tin plating, these headers support current up to 3A and voltage up to 250V. Available in various configurations, including straight or right-angled terminations with fixed or long latches, they are designed for industrial and automation applications. Constructed with UL 94V-0 insulator and capable of operating between -40°C to +105°C, ensuring reliable performance in demanding environments. Buy today for fast delivery and competitive prices.
Order your Berg Series T816140A1R102CEU latch header today and ensure secure, reliable PCB connections with our high-quality, RoHS compliant components.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS T816140A1R102CEU?
You can click on the BUY or RFQ button to purchase T816140A1R102CEU from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part T816140A1R102CEU?
You can download the T816140A1R102CEU datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of T816140A1R102CEU?
AMPHENOL COMMUNICATIONS SOLUTIONS
