AMPHENOL COMMUNICATIONS SOLUTIONS T821134A1S100CEU Box Header
High-quality 2.54mm pitch box headers designed for reliable electrical connections in electronic assemblies. These headers feature thermoplastic insulation compliant with UL 94V-0 standards and phosphor bronze contacts plated with full flash gold or selected gold for enhanced durability and corrosion resistance. With an insulation resistance of 1000 Megohms and dielectric withstand voltage of 1000 VAC/RMS at 60Hz for one minute, they support current ratings up to 3A per contact and voltage ratings of 250VAC/RMS. Suitable for PCB mounting, they include options with straight or right-angle configurations, multiple contact positions, and various plating and latch types, ensuring versatile application in industrial and electronic devices.
AMPHENOL COMMUNICATIONS SOLUTIONS T821134A1S100CEU Box Header Specifications:
- Pitch: 2.54mm
- Material: Thermoplastic, UL 94V-0
- Contact Material: Phosphor Bronze, plated with full flash gold or selected gold
- Insulation Resistance: 1000 Megohms minimum
- Dielectric Withstanding Voltage: 1000 VAC/RMS at 60Hz for one minute
- Current Rating: 3A per contact
- Voltage Rating: 250VAC/RMS
- Operating Temperature: -40°C to +105°C
- Contact Resistance: Max 20 milliohms at 1A
- Nickel Plating: 50u" under-plating
- Contact Plating: Full flash gold, 15u" or 30u" gold options
- Number of Positions: 6 to 64
- Latch Type: None, short metal latch, long metal latch
- Color Options: Grey, Black
- Packaging: Stand-off for pin, with varied variation codes (C, H, E)
- Application: PCB mounting, industrial electronics

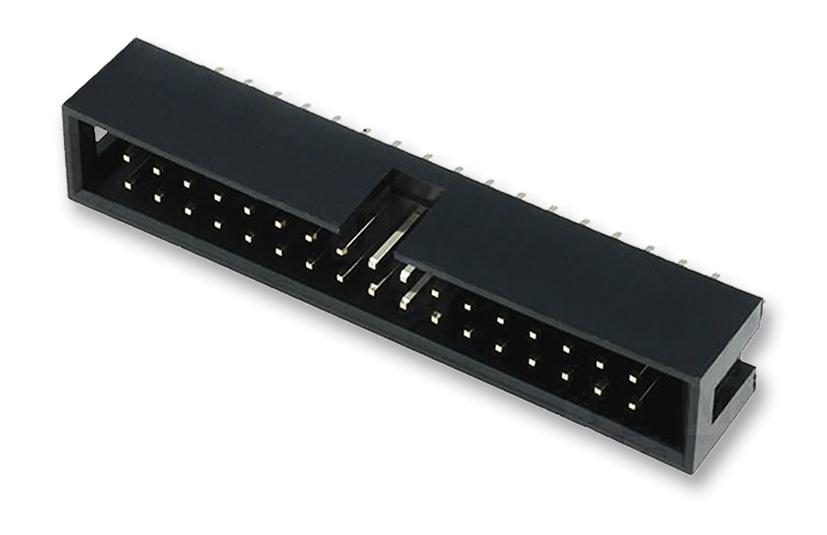

Buy the Mphenol Series Box Header: 2.54mm Pitch, 6-64 Positions: T821134A1S100CEU
Discover the versatile and reliable box headers ideal for your electronic and industrial applications. Featuring 2.54mm pitch, full gold contact plating, and thermoplastic insulation, these headers ensure optimal electrical performance and durability. Suitable for PCB mounting, they support various contact positions, latch options, and plating configurations to meet diverse needs. With high insulation resistance and dielectric withstand voltage ratings, they provide a trusted connection solution for professional electronics engineering. Purchase online now to enhance your assemblies with precision-engineered components built for long-lasting performance.
Get Mphenol T821134A1S100CEU today—designed for precision, durability, and versatile electronic connections.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS T821134A1S100CEU?
You can click on the BUY or RFQ button to purchase T821134A1S100CEU from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part T821134A1S100CEU?
You can download the T821134A1S100CEU datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of T821134A1S100CEU?
AMPHENOL COMMUNICATIONS SOLUTIONS
