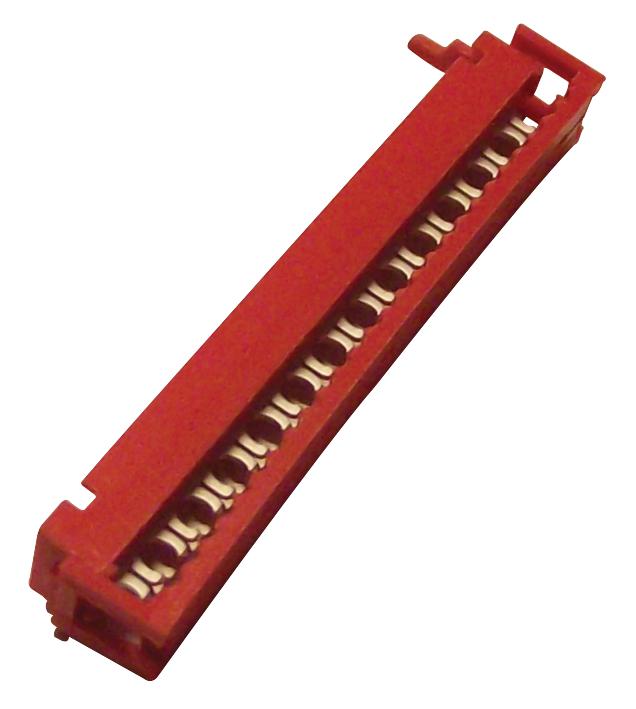

AMPHENOL COMMUNICATIONS SOLUTIONS TMM10081 MicroMatch Connectors
The Amphenol MicroMatch series features 1.27mm pitch connectors designed for versatile board-to-board and wire-to-board connections, supporting up to 26 positions. These connectors include IDC, DIP, and SMT types, with fully tinned contacts and polarized male connectors for correct orientation. Featuring kinked contacts for secure PCB retention and optional locking latches on female connectors, they are suitable for telecom and industrial applications, rated for 1.5A and 230V, with high-temperature thermoplastic housing, RoHS compliance, and operating temperatures from -40°C to +105°C, ensuring durability and reliability.
AMPHENOL COMMUNICATIONS SOLUTIONS TMM10081 MicroMatch Connectors Specifications:
- Pitch: 1.27mm
- Current rating: 1.5A
- Voltage rating: 230V
- Contact resistance: 20mΩ max
- Insulation resistance: 1000MΩ min
- Withstanding voltage: 500V AC
- Contact material: Copper alloy with tin plating
- Plastic material: High-temperature thermoplastic UL 94 VO, red
- PC Board Thickness: 1.6mm
- Operating temperature: -40°C to +105°C
- RoHS compliant
- Locking latches: Available on female connectors
- Connector types: IDC, DIP, SMT
- Packaging options include Tape & Reel, tubes, bags
- Polarization guide on male connectors ensures correct orientation
Buy the Amphenol Series MicroMatch Connectors: TMM10081
Purchase Amphenol MicroMatch connectors online today to benefit from their versatile design, including IDC, DIP, and SMT types, with high current and voltage ratings. These connectors feature fully tinned contacts, polarized male connectors for correct orientation, optional locking latches for added security, and durable thermoplastic housing suitable for industrial and telecom applications. With RoHS compliance and operational temperature range from -40°C to +105°C, they deliver reliable, high-quality interconnections suitable for demanding environments, ensuring long-term performance and ease of assembly.
Buy Amphenol MicroMatch TMM10081 connectors now and experience unmatched reliability and high-performance board-to-board and wire-to-board connections.
