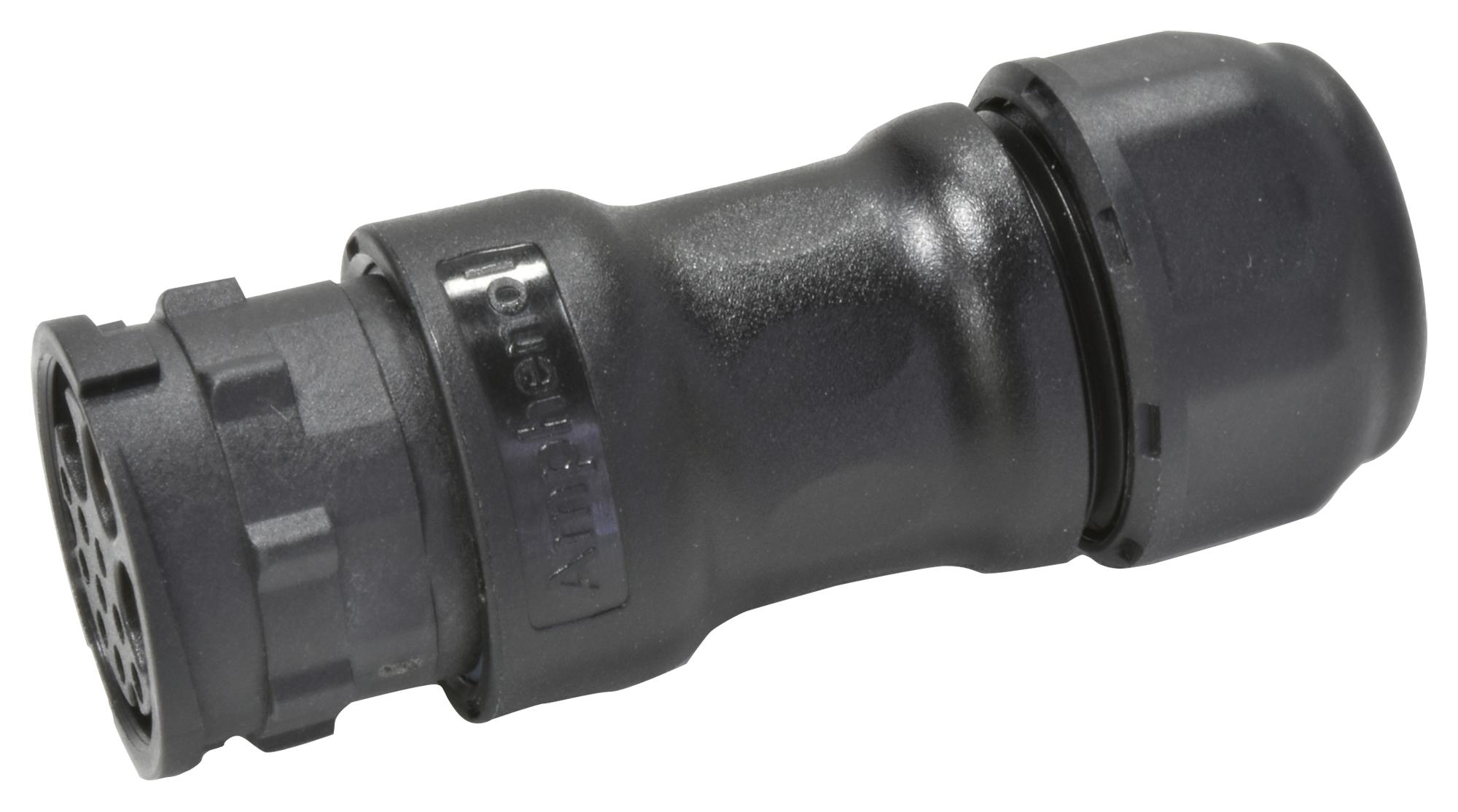

AMPHENOL LTW ADCD12BMECLL7AP0 Circular Connector
The AMPHENOL LTW ADCD-12BMEC-LL7AP0 is a circular connector designed for field installation, offering a robust and reliable connection solution for various industrial applications. Constructed with nylon+GF for the connector body and gold-plated copper alloy pins, it ensures excellent conductivity and durability. Silicone seals provide IP67 water resistance, making it suitable for harsh environments. The connector supports wire gauges from 22AWG to 12AWG and offers a wide operating temperature range from -40°C to 105°C, making it ideal for applications requiring both durability and performance. It is UL 94V-0 and RoHS compliant.
AMPHENOL LTW ADCD12BMECLL7AP0 Circular Connector Specifications:
- Connector: Nylon+GF, Black
- Pins: Copper Alloy, Gold Plated
- Seal & O-Ring: Silicone, Gray
- UL Rating: UL 94V-0, f1
- Contact Resistance: 10mΩ Max
- Insulation Resistance: 100 MΩ Min
- Dielectric Withstand Voltage: 1,600 V ac
- Durability: 1000 Cycles
- Tensile Strength: 10 kgf
- Wire Conductor (5A): 22AWG ~ 20AWG
- Wire Conductor (20A): 14AWG ~12AWG
- Wire Insulation OD (5A): 1.9mm Max
- Wire Insulation OD (20A): 4.3mm Max
- Torque for Clamp Ring: 6~8 kgf-cm
- Torque for Seal Nut: 6~8 kgf-cm
- Waterproof Rating: IP 67 (Mated)
- Temperature Range: -40°C to 105°C
- Salt Spray: Mated, 1000 Hours
- Safety Compliance: UL 1977
Buy the ADCD-12BMEC-LL7AP0 AMPHENOL LTW Circular Connector | myMectronic
Purchase the AMPHENOL LTW ADCD-12BMEC-LL7AP0 securely and efficiently for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL LTW ADCD12BMECLL7AP0?
You can click on the BUY or RFQ button to purchase ADCD12BMECLL7AP0 from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part ADCD12BMECLL7AP0?
You can download the ADCD12BMECLL7AP0 datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of ADCD12BMECLL7AP0?
AMPHENOL LTW
