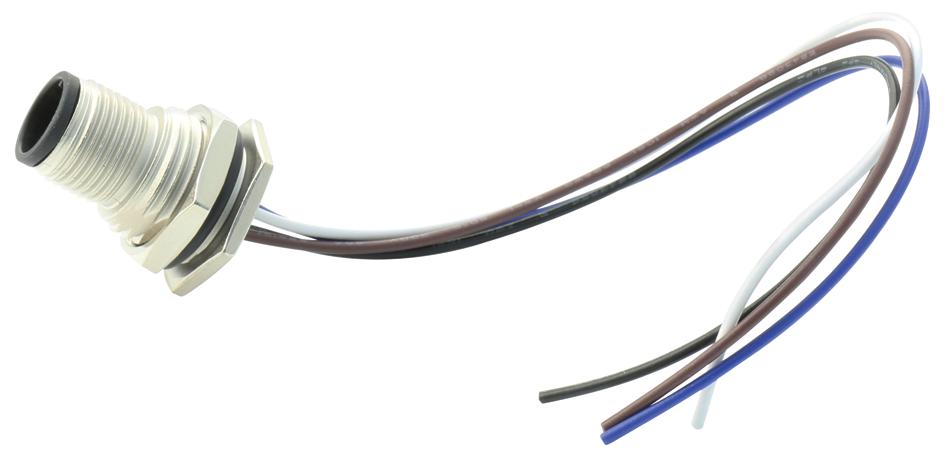

AMPHENOL LTW M12A04PFFCSH8B15 Female Connector
The Amphenol LTW M12A-04PFFC-SH8B15 is a robust and reliable M12 circular connector designed for demanding industrial environments. Its IP68/69K rating ensures protection against dust and water ingress, making it ideal for applications in harsh conditions. The connector features a nylon housing, providing durability and resistance to chemicals, and gold-plated pins that ensure excellent electrical conductivity and corrosion resistance. It is commonly used in factory automation, industrial networking, and automotive applications where secure and reliable power and data transmission are critical. The connector supports various pin configurations and wire gauge sizes, offering flexibility in system design. Its compact size and ease of installation make it a versatile choice for a wide range of applications.
AMPHENOL LTW M12A04PFFCSH8B15 Female Connector Specifications:
- Connector Type: Female
- Code: A
- Series: M12A
- Number of Pins: 4
- Housing Material: Nylon + GF
- Pin Material: Copper Alloy
- Pin Plating: Gold Plated
- Shield Material: Zinc Alloy
- Shield Plating: Nickel Plated
- Panel O-Ring Material: Viton
- Housing O-Ring Material: Viton
- Waterproof Rating: IP68/IP69K
- Operating Temperature: -25 ~ 85°C
- Panel Thickness Max: 4.5mm
- Nut Torque: 4-6 kgf.cm
- Wire Harness UL Rating: UL1061
- Rated Voltage: 250V DC or AC (3 & 4 Pin)
- Rated Current: 4A (3~5 Pin)
- Wire Harness Tolerance: Over1000 #40mm
Buy the M12A-04PFFC-SH8B15 AMPHENOL LTW Female Connector | myMectronic
Purchase the Amphenol LTW M12A-04PFFC-SH8B15 connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL LTW M12A04PFFCSH8B15?
You can click on the BUY or RFQ button to purchase M12A04PFFCSH8B15 from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part M12A04PFFCSH8B15?
You can download the M12A04PFFCSH8B15 datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of M12A04PFFCSH8B15?
AMPHENOL LTW
