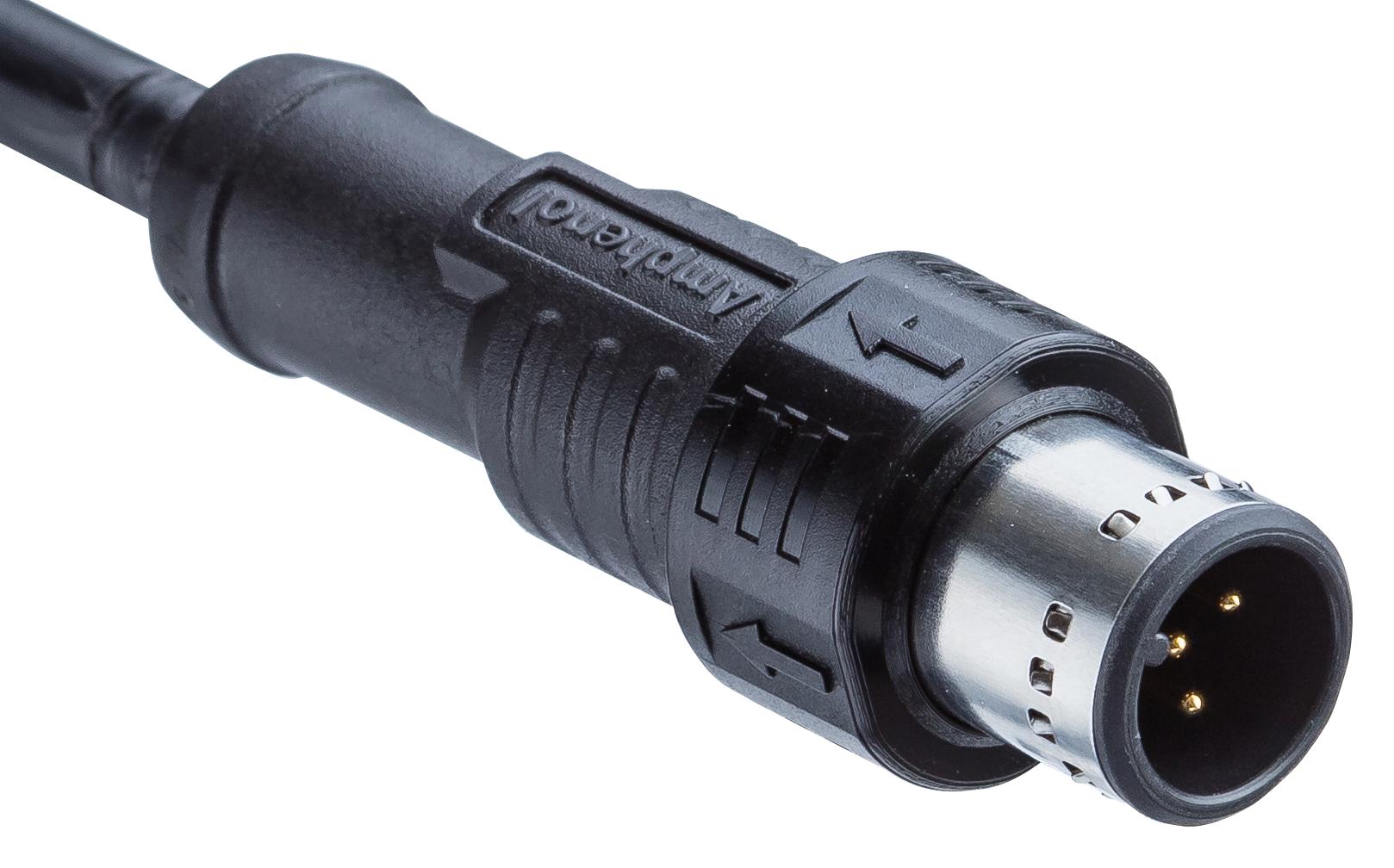

AMPHENOL LTW M12B05BMMMPL8D03 M12 Push Pull Cable Connector
The Amphenol LTW M12B-05BMMM-PL8D03 is a high-performance M12 push-pull cable connector engineered for demanding industrial environments. Its robust construction, featuring a thermoplastic housing (UL 94V-0), copper alloy gold-plated pins, and a secure push-pull locking mechanism, ensures reliable connectivity and resistance to vibration and harsh conditions. The connector offers excellent electrical characteristics, including low contact resistance and high insulation resistance, and is rated for voltage proof up to 1000V and a current rating of 4.0A. It is IP68 waterproof and operates within a temperature range of -20°C to +80°C (PVC cable) or -20°C to +85°C (PUR cable). Available with PVC or PUR cable jackets, this connector is suitable for a wide range of applications including industrial automation, process control, and power transmission.
AMPHENOL LTW M12B05BMMMPL8D03 M12 Push Pull Cable Connector Specifications:
- Housing Material: Thermoplastic, UL 94V-0
- Pin Material: Copper Alloy, Gold Plated
- Shell Material: Metal
- Contact Resistance: 10mΩ (Max.)
- Insulation Resistance: 100 MΩ (Min.)
- Voltage Proof: 1.0 KV
- Rated Voltage: 60V D.C. or A.C.
- Rated Current: 4.0 A
- Durability: 500 Cycles
- Waterproof Rating: IP 68
- Temperature Range: -20~+80°C (PVC)
- -20~+85°C (PUR): Cable Type
