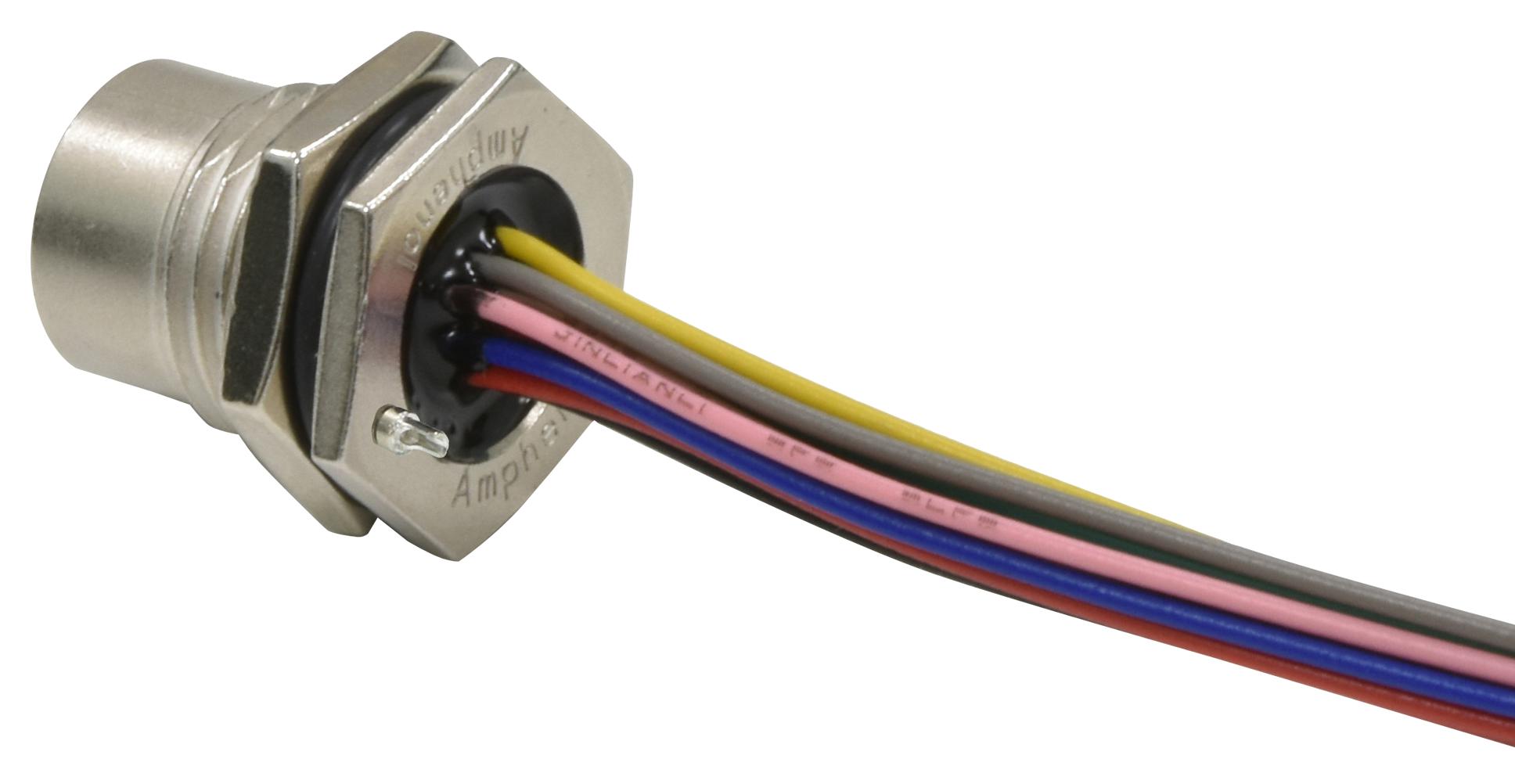

AMPHENOL LTW MSAS04PFFCSF8C30 Waterproof Connector
This waterproof connector features a Nylon+GF housing with gold-plated copper female pins, IP69K rated for high protection against water and dust. It includes a zinc alloy shield with nickel plating, Viton O-rings for sealing, and is designed for panel thicknesses up to 4.5mm. Rated for 250V AC/DC and currents up to 4A, it supports wire harnesses ranging from 150mm to 1500mm. Operating temperatures range from -25°C to 85°C, making it suitable for rugged industrial environments and secure waterproof connections.
AMPHENOL LTW MSAS04PFFCSF8C30 Waterproof Connector Specifications:
- Housing Material: Nylon+GF, Black
- Shield Material: Zinc Alloy, Nickel Plated
- Connector Rating: 250V AC/DC, 4A
- Waterproof Rate: IP69K
- Operating Temperature: -25°C to 85°C
- Panel Thickness: Max 4.5mm
- O-Rings: Viton (Housing and Panel)
- Wire Harness Tolerance: 150-300mm
- Wire Length: 150mm to 1500mm (recommendation 300-1000mm, panel cut for over 1000mm)
- Nut Torque: 4-6 Kgf.cm
- Screw Nut: Zinc Alloy, Nickel Plated
- Rated Voltage: 250V
- Rated Current: 4A
- Dimensions: Typical length 13.6mm, diameter 15.4mm
- Pin Layout: 4-pin configuration
Buy the Buy Allen Pan Waterproof Connector Part Number MSAS04PFFCSF8C30 Online
Get your Allen Pan waterproof connector MSAS04PFFCSF8C30 online today and experience the reliability of a high-quality, IP69K rated connection. This connector features a durable Nylon+GF housing, zinc alloy shield with nickel plating, and Viton O-rings for excellent sealing. Designed to operate safely at up to 250V and 4A, it ensures secure wiring in challenging environments. Suitable for panel thickness up to 4.5mm, with wire lengths ranging from 150mm to 1500mm, offering versatility for your industrial wiring needs. Purchase now for dependable waterproof performance.
Order your Allen Pan waterproof connector MSAS04PFFCSF8C30 today and ensure reliable, high-quality waterproof connections for demanding industrial projects.
Frequently Asked Questions
Where can I buy AMPHENOL LTW MSAS04PFFCSF8C30?
You can click on the BUY or RFQ button to purchase MSAS04PFFCSF8C30 from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part MSAS04PFFCSF8C30?
You can download the MSAS04PFFCSF8C30 datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of MSAS04PFFCSF8C30?
AMPHENOL LTW
