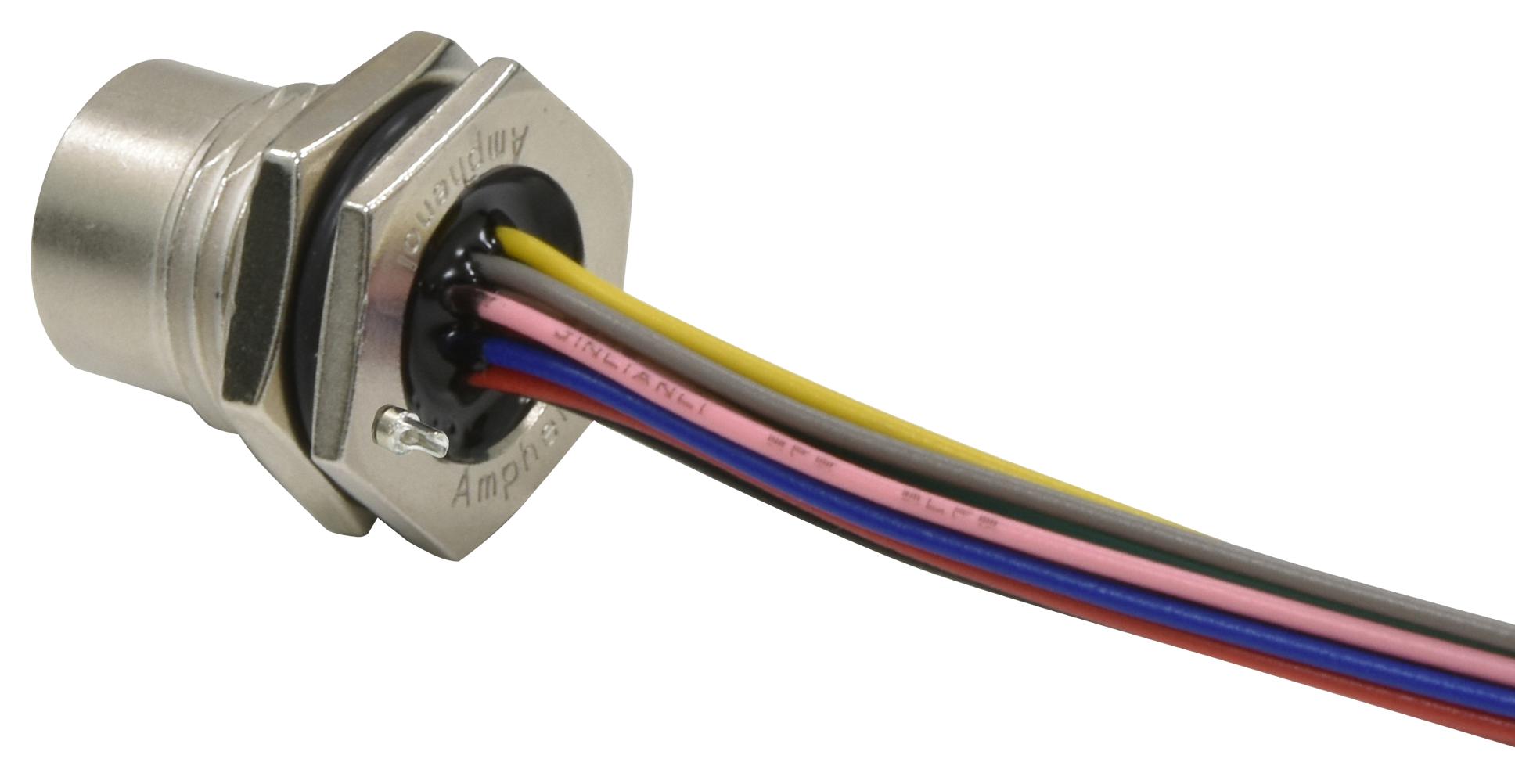

AMPHENOL LTW MSAS06PFFSSF8B30 Waterproof Connector
This waterproof connector features a rugged nylon plus glass-filled housing with gold-plated copper female pins and zinc alloy shield, rated IP68/IP69K, suitable for demanding industrial applications. It supports a voltage of 250V AC/DC, with rated currents up to 4A depending on pin configuration. Designed for panel thickness up to 4.5mm, it includes Viton O-rings for sealing, a zinc alloy shield, and a wire harness compatible with UL1061 standards. Operating temperature ranges from -25°C to +85°C, making it ideal for harsh environments requiring reliable sealing and electrical performance.
AMPHENOL LTW MSAS06PFFSSF8B30 Waterproof Connector Specifications:
- Housing Material: Nylon+GF, Black
- Shield Material: Zinc Alloy, Nickel Plated
- Female Pin Material: Copper Alloy, Gold Plated
- Connector Rating: IP68, IP69K
- Rated Voltage: 250V AC/DC
- Rated Current: 4A depending on pin configuration
- Operating Temperature: -25°C to +85°C
- Panel Thickness: Max 4.5mm
- Seal Material: Viton, Black and Green
- Nut Torque: 4-6 Kgf.cm
- Wire Harness Tolerance: 150-300mm, recommended 300-1000mm, over 1000mm +40mm
- Waterproof Rate: IP68/IP69K
- Connector Style: Female, Shielded, Front Fasten
- Wire Size Range: 150~1500mm length, UL1061 compliance
Buy the Industrial Series Waterproof Connector: MSAS06PFFSSF8B30
Get the reliable waterproof connector MSAS06PFFSSF8B30 online today for your industrial or outdoor projects. Featuring a rugged nylon housing and zinc alloy shield, it ensures IP68/IP69K sealing and excellent electrical performance across a temperature range of -25°C to +85°C. Its gold-plated copper female pins provide corrosion resistance, while Viton O-rings guarantee waterproof sealing. Designed for panels up to 4.5mm thick, this connector supports voltage ratings of 250V and currents up to 4A, making it ideal for harsh environments requiring durable, secure connections.
Order your Allen Pan Series Waterproof Connector MSAS06PFFSSF8B30 today and give your projects the dependable sealing and electrical performance they deserve.
Frequently Asked Questions
Where can I buy AMPHENOL LTW MSAS06PFFSSF8B30?
You can click on the BUY or RFQ button to purchase MSAS06PFFSSF8B30 from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part MSAS06PFFSSF8B30?
You can download the MSAS06PFFSSF8B30 datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of MSAS06PFFSSF8B30?
AMPHENOL LTW
