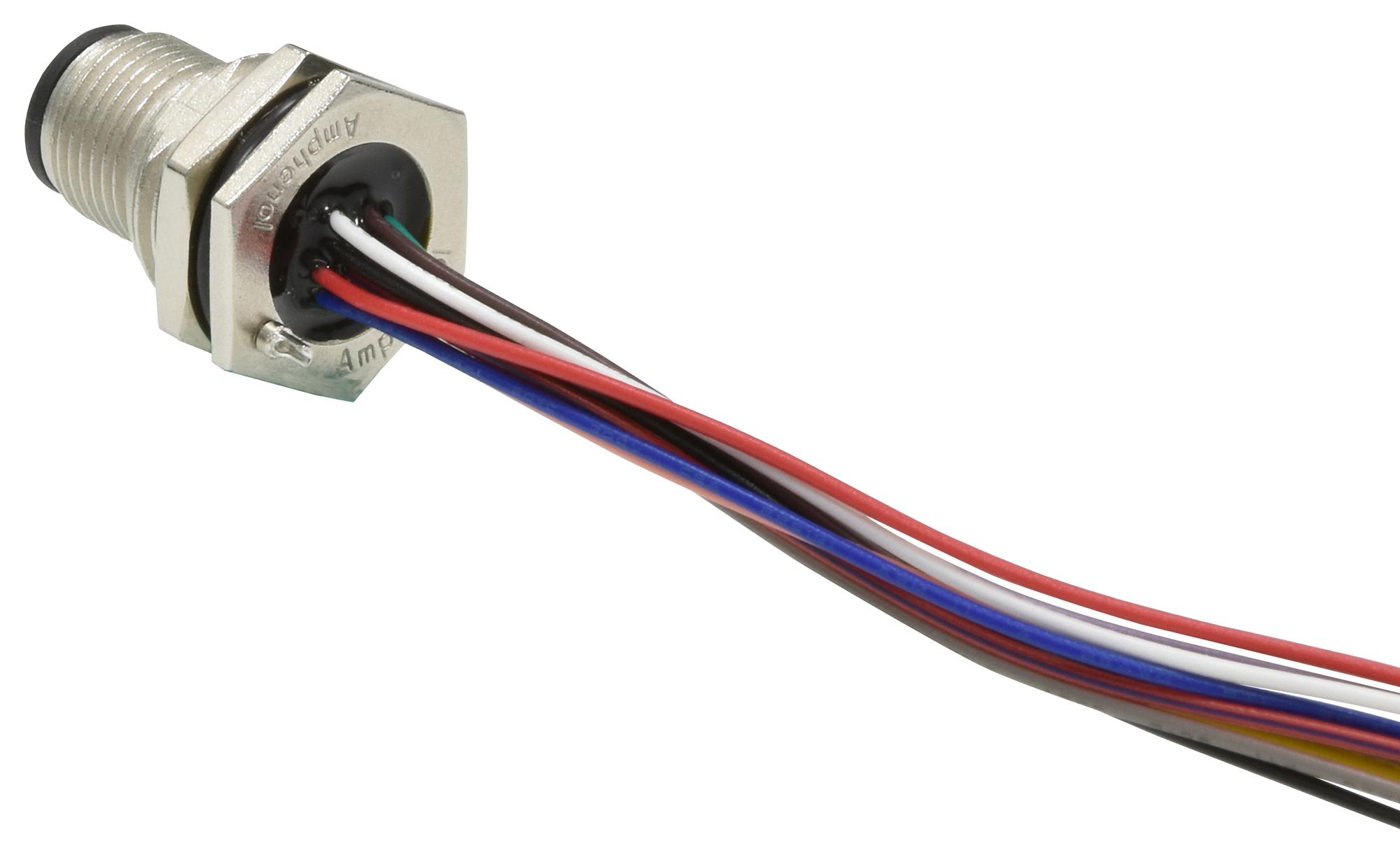

AMPHENOL LTW MSAS12PMMSSF8B30 Industrial Waterproof Connector
The MSAS12PMMSSF8B30 is a shielded circular connector designed for industrial applications requiring waterproof and durable connections. It features a waterproof rate of IP68/IP69K, with a UL1061-rated UL wire harness, and high-quality materials including copper alloy male pins with gold plating, zinc alloy shielding with nickel plating, and Viton panel O-rings for sealing. The connector supports rated voltages up to 250V AC/DC and rated currents from 1.5A to 4A depending on the pin configuration, making it suitable for heavy-duty electrical wiring, automation systems, and outdoor industrial environments. It ensures reliable performance under operating temperatures from -25°C to 85°C, with a maximum panel thickness of 4.5mm, and includes specifications for proper torque, wire tolerance, and panel cut-out dimensions.
AMPHENOL LTW MSAS12PMMSSF8B30 Industrial Waterproof Connector Specifications:
- Waterproof rate: IP68, IP69K
- Connector material: NylontGF, Black
- Male Pin: Copper Alloy, Gold Plated
- Shield: Zinc Alloy, Nickel Plated
- Screw Nut: Zinc Alloy, Nickel Plated
- Panel O-Ring: Viton, Black
- Rated Voltage: 250V AC/DC
- Rated Current: 1.5A to 4A (depending on pin count)
- Operating Temperature: -25°C to 85°C
- Panel Thickness Max: 4.5mm
- Nut Torque: 4-6 Kgf.cm
- Wire harness tolerance: 150-300mm
- Recommended wire length: 300-1000mm, 420mm for 1000mm
- Panel cut-out: over 1000mm, 440mm
- Connector Type: Male, Shielded
- Dimensions: Length varies with model
- Wire Length: 150mm to 1500mm
Buy the Industrial Connector 12PMMSSF8B30 – Reliable Waterproof Connector for Industrial Applications
Shop now for the MSAS12PMMSSF8B30 waterproof industrial connector and experience seamless, durable electrical connections for your outdoor or heavy-duty industrial projects. Designed with IP68/IP69K ratings, high-quality copper alloy pins, zinc alloy shielding, and Viton O-rings, this connector guarantees waterproof and corrosion-resistant performance. Its rated voltage of 250V AC/DC and current capacity up to 4A support various industrial needs. With operating temperatures from -25°C to 85°C, maximum panel thickness of 4.5mm, and easy wire assembly, it’s the smart choice for reliable, long-lasting electrical connections.
Order your Allen Pan Series MSAS12PMMSSF8B30 industrial waterproof connector today and ensure reliable, high-performance connections in outdoor and heavy-duty environments.
Frequently Asked Questions
Where can I buy AMPHENOL LTW MSAS12PMMSSF8B30?
You can click on the BUY or RFQ button to purchase MSAS12PMMSSF8B30 from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part MSAS12PMMSSF8B30?
You can download the MSAS12PMMSSF8B30 datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of MSAS12PMMSSF8B30?
AMPHENOL LTW
