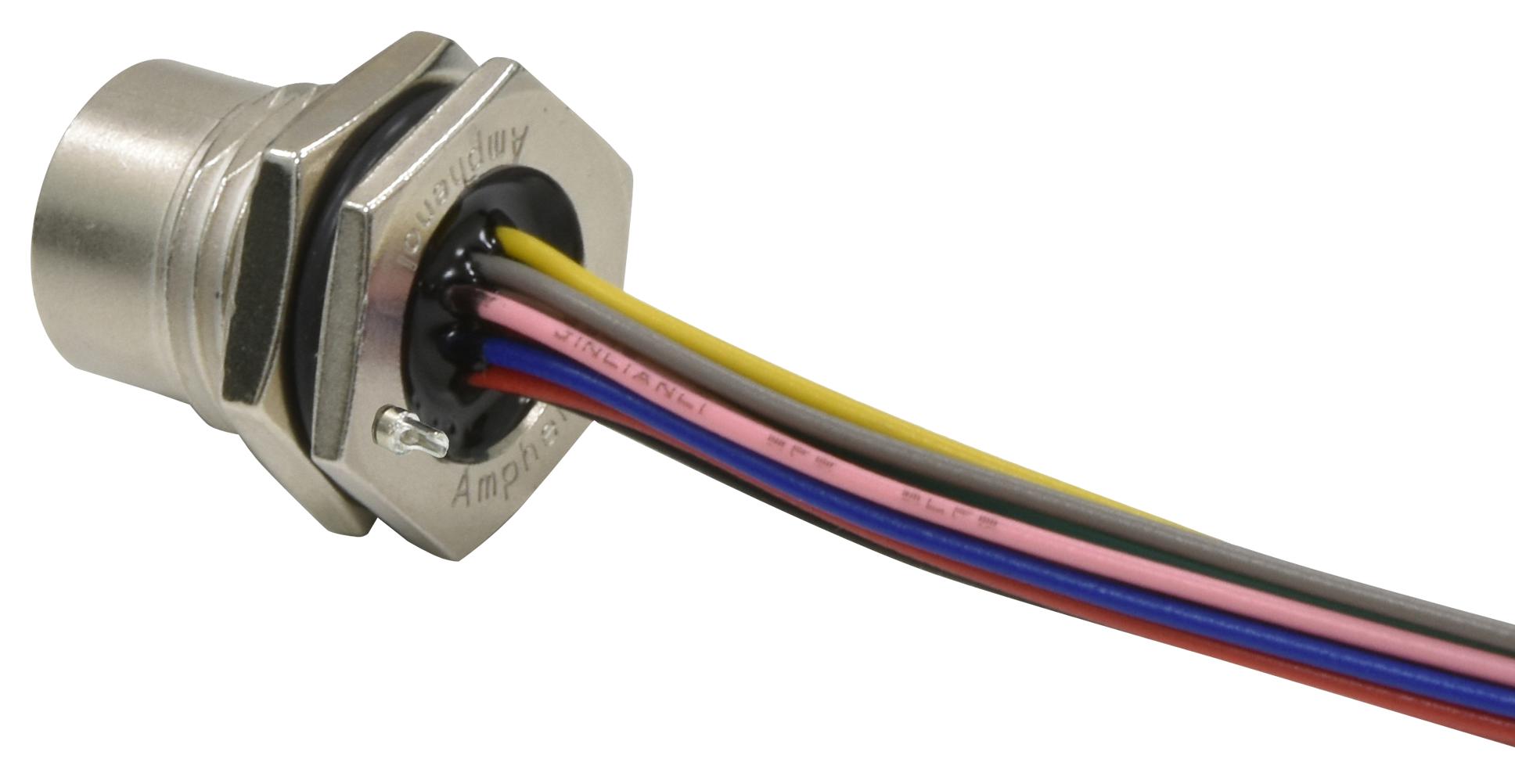

AMPHENOL LTW MSBS05PFFCSF8B30 Shielded Panel Connector
The shielded panel connector is rated for 60V DC or AC, with a maximum current of 4A. Made of nylon+GF black housing, it features gold-plated copper alloy female pins, zinc alloy nickel-plated shield, and Viton black panel O-Ring. The connector supports panel thickness up to 4.5mm, operating temperatures from -25°C to 85°C, and comes with wire harness options from 150mm to 1500mm. Its waterproof rating is IP68, designed for reliable electrical connections in industrial and automation applications, ensuring durability and optimal performance.
AMPHENOL LTW MSBS05PFFCSF8B30 Shielded Panel Connector Specifications:
- Rated Voltage: 60V dc or ac
- Rated Current: 4A
- Housing Material: Nylon+GF Black
- Pin Material: Copper Alloy, Gold Plated
- Shield Material: Zinc Alloy, Nickel Plated
- Panel O-Ring Material: Viton, Black
- Housing O-Ring Material: Viton, Green
- Panel Thickness Max: 4.5mm
- Operating Temperature Range: -25°C to 85°C
- Waterproof Rating: IP68
- Wire Harness Lengths: 150mm to 1500mm
- Recommended Nut Torque: 4-6 Kgf.cm
- Suitable for industrial automation, control systems, and electronic equipment
- Connector dimensions tailored for panel mounting, reliable sealing, and easy wiring
Buy the Amphenol Series MSBS Shielded Panel Connector: MSBS05PFFCSF8B30
Order the shielded panel connector online to enjoy fast delivery and competitive prices. Designed for durability, it features a waterproof IP68 rating, gold-plated contact pins, and a robust nylon+GF housing suitable for industrial environments. This connector supports panel thickness up to 4.5mm and operating temperatures from -25°C to 85°C, ensuring optimal performance in automation, control systems, and electronic assemblies. With various wire harness lengths available, it simplifies your installation process and guarantees reliable, long-lasting connections.
Buy Amphenol MSBS05PFFCSF8B30 now and experience unmatched reliability and performance in industrial connectivity solutions.
Frequently Asked Questions
Where can I buy AMPHENOL LTW MSBS05PFFCSF8B30?
You can click on the BUY or RFQ button to purchase MSBS05PFFCSF8B30 from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part MSBS05PFFCSF8B30?
You can download the MSBS05PFFCSF8B30 datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of MSBS05PFFCSF8B30?
AMPHENOL LTW
