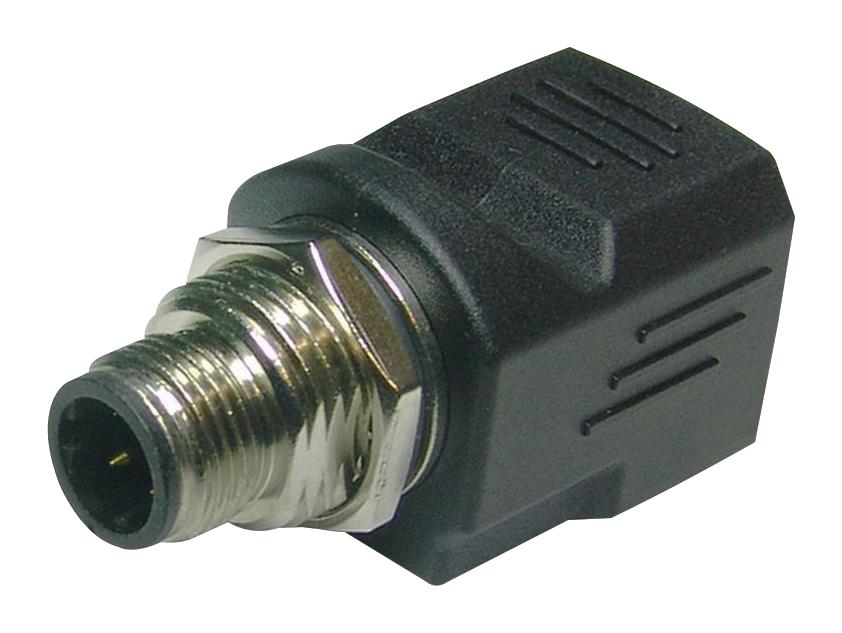

AMPHENOL LTW RJS12D04FMLS8001 Industrial M12 Ethernet Adapter
The RJS-12D04FM-LS8001 is a robust M12 male to RJ45 female straight adapter designed for industrial environments. Featuring gold-plated copper alloy contacts and a Viton O-ring, it ensures reliable connectivity and enhanced durability. With an IP68 waterproof rating when unmated on the M12 side, it withstands harsh conditions. Supporting a 4A current, 250V voltage, and 1400Vrms withstand voltage, it operates between 0°C and 70°C. Its rugged design makes it suitable for factory automation, building automation, motor drives, and control systems requiring secure, reliable connections.
AMPHENOL LTW RJS12D04FMLS8001 Industrial M12 Ethernet Adapter Specifications:
- Connector & Contact Gender: Female M12, Male RJ45
- Pin Count: 4 (M12 D-code)
- Waterproof Rating: IP68 when unmated on M12 side
- Electrical Ratings: 4A at 250V, withstand voltage of 1400Vrms
- Contact Material: Copper Alloy with Gold Plating
- Operating Temperature: 0°C to +70°C
- Viton O-ring for sealing
- Mating Style: Front Mount, Screw Type
- Materials: PA+GF body, Copper Alloy contacts
- Current Rating: 4A
- Voltage Rating: 250V
- Withstanding Voltage: 1400Vrms
- Contact Resistance: <10mΩ
- Insertion Force: 10N, Withdrawal Force: 15N
- Vibration Resistance: 0.35mm or 50mm/s at 10–500Hz
- Part Numbers: RJS-12D04FF-LS8001, RJS-12D04FM-LS8001
Buy the Amphenol RJS12D04FM-LS8001 – Reliable M12 to RJ45 for Industrial Applications
Enhance your industrial automation setup with the durable M12 to RJ45 Ethernet adapter. Featuring gold-plated contacts, IP68 waterproof rating, and rugged construction, this reliable connector supports up to 4A and 250V, ensuring stable communication in harsh environments. Its plug-and-play design simplifies installation, making it ideal for factory automation, building controls, motor drives, and systems requiring secure, dustproof, and moisture-resistant connections. Trusted globally, this adapter provides dependable performance for demanding industrial applications.
Order your Amphenol series RJS12D04FM-LS8001 industrial Ethernet adapter today and ensure secure, durable connections in your automation projects.
