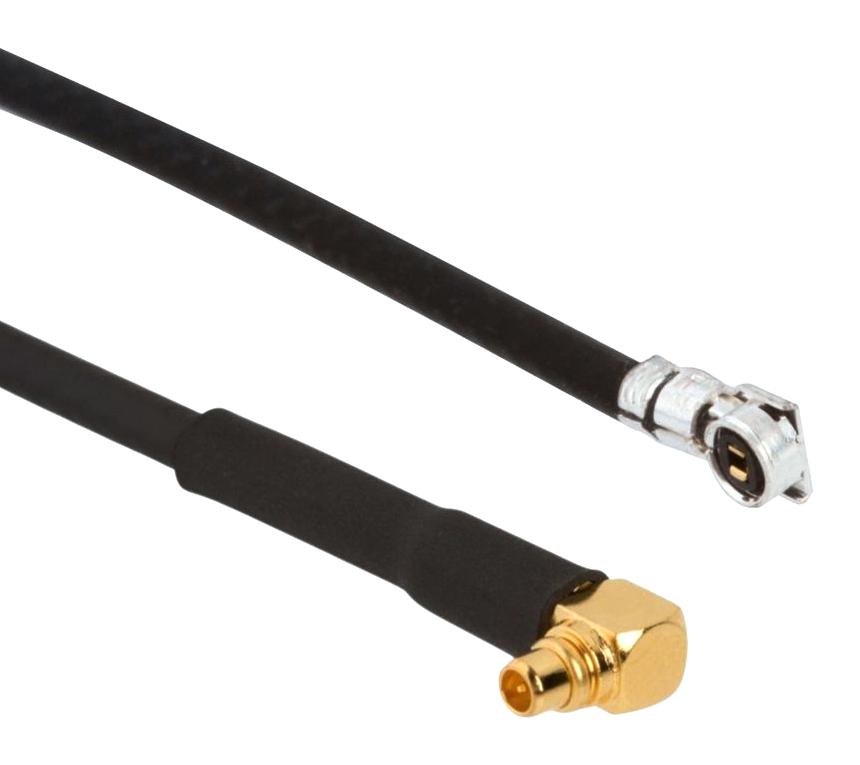

AMPHENOL RF 095900555200 Right-Angle Plug to AMC4 Plug
Amphenol RF's MMCX connectors and cable assemblies are engineered for micro-coax cable types, providing 50 ohm impedance and suitability for applications with limited space, such as IoT infrastructure and consumer devices. The 095-900-555-200 model features a right-angle plug to AMC4 right-angle plug configuration, offering maximum flexibility and secure mating to ultraminiature interfaces. It's well-suited for external antennas with an MMCX plug interface, allowing for easy routing within enclosures and connections between PCBs or modules in tight spaces.
AMPHENOL RF 095900555200 Right-Angle Plug to AMC4 Plug Specifications:
- Impedance: 50Ω
- Frequency Range: DC - 6 GHz
- Voltage Rating: 170 Volts RMS Max Continuous
- Dielectric Withstanding Voltage: 500 VRMS Max
- VSWR (Return Loss): DC - 4 GHz: 1.25 (-19 dB) Max, 4 - 6 GHz: 1.40 (-16 dB) Max
- Insulation Resistance: 500 MΩMin
- Center Contact Resistance: 10 mΩMin
- Outer Contact Resistance: 5 mΩMin
- Temperature Range: −40°C to +90°C
- RoHS Compliance: Compliant with Excemption 6C
- Mating Cycles: 500 Min
- Coupling Mechanism: Push-On
- Body: Brass, Gold Plated
- Contact: Brass, Gold Plated
- Insulator: PTFE, Natural
