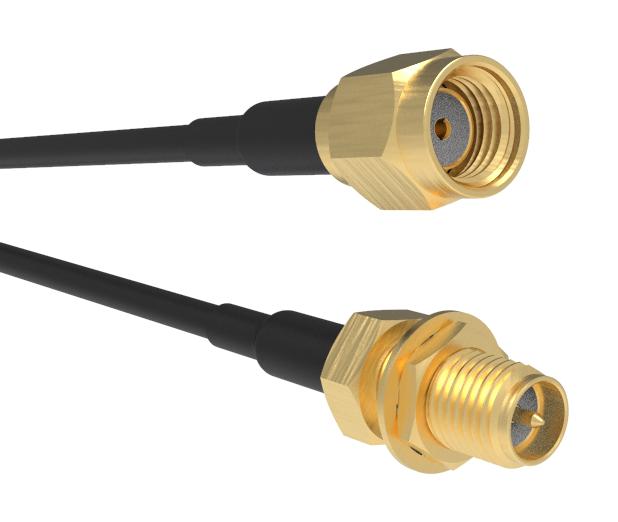

AMPHENOL RF 095902536024 RF Cable Assembly
Amphenol RF RP-SMA cable assemblies feature high-performance, fixed-length configurations on RG-58, RG-174, and RG-316 cables. These assemblies are designed with gold-plated brass connectors featuring threaded coupling mechanisms for a secure connection and support up to 5 GHz frequency. Suitable for test, measurement, wireless LAN, and cellular applications, these assemblies undergo rigorous testing for high quality, ensuring at least 500 mating cycles. They operate reliably across a temperature range of -65°C to 165°C, making them ideal for demanding environments.
AMPHENOL RF 095902536024 RF Cable Assembly Specifications:
- Impedance: 50 Ohms
- Frequency Range: DC - 6 GHz
- Mating Cycles: 500 minimum
- Temperature Range: -65°C to 165°C
- Connector Body: Brass, gold plated
- Female Contact: Beryllium Copper, gold plated
- Male Contact: Brass, gold plated
- Insulator: PTFE, natural
- Supported Lengths: 6 inches to 196.85 inches (5000 mm)
- Cable Types: RG-58, RG-174, RG-316
- Nominal Dimensions: support various lengths with high flexibility
- Environmental: RoHS compliant with exemption 6C
Buy the Amphenol 095902536 – Reliable RF Cable Assemblies for Industrial Applications
Order the Amphenol RF cable assembly today and enjoy high-quality, corrosion-resistant connectors supporting frequencies up to 6 GHz. Engineered with gold-plated brass, these assemblies provide secure, durable connections for RF testing, wireless LAN, and cellular systems. Available in various lengths from 6 inches to over 16 feet, they ensure flexibility for different applications. With a minimum of 500 mating cycles and operating temperature from -65°C to 165°C, they are ideal for demanding industrial and laboratory environments. Purchase online now and ensure your project’s success with trusted RF components.
Buy Amphenol 095902536 now and experience unmatched reliability and performance in RF connectivity for industrial and testing environments.
Frequently Asked Questions
Where can I buy AMPHENOL RF 095902536024?
You can click on the BUY or RFQ button to purchase 095902536024 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 095902536024?
You can download the 095902536024 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 095902536024?
AMPHENOL RF
