AMPHENOL RF 132188 SMA Connector
The 132188 is a solder-type SMA straight plug connector designed for use with 0.085-inch, 0.086-inch semi-rigid, and RG405 RF coaxial cables. It features a gold-plated brass body with contacts and a natural PTFE insulator. This connector offers standard polarity, a threaded coupling mechanism, and is rated for up to 500 mating cycles. It operates within a temperature range of -65°C to 165°C and is suitable for RF communication and industrial applications.
AMPHENOL RF 132188 SMA Connector Specifications:
- Impedance: 50 ohm
- Frequency range: 0-18 GHz for semi-rigid .085" or .086" cables, 0-12.4 GHz for flexible cables
- Voltage rating: 500V peak
- Dielectric withstanding voltage: 1000V RMS (.141" & RG-58), 750V RMS (.085" & RG-316)
- Contact resistance: 2.0 milliohms (center and body), 0.5 milliohms (braid to body)
- Insulation resistance: 5000 Megohms
- Operating temperature: -65°C to +165°C
- Connector material: Brass with gold plating
- Insulator: PTFE
- Number of mating cycles: Up to 500
- Coupling mechanism: Threaded (male thread)
- Rated for RF and industrial applications

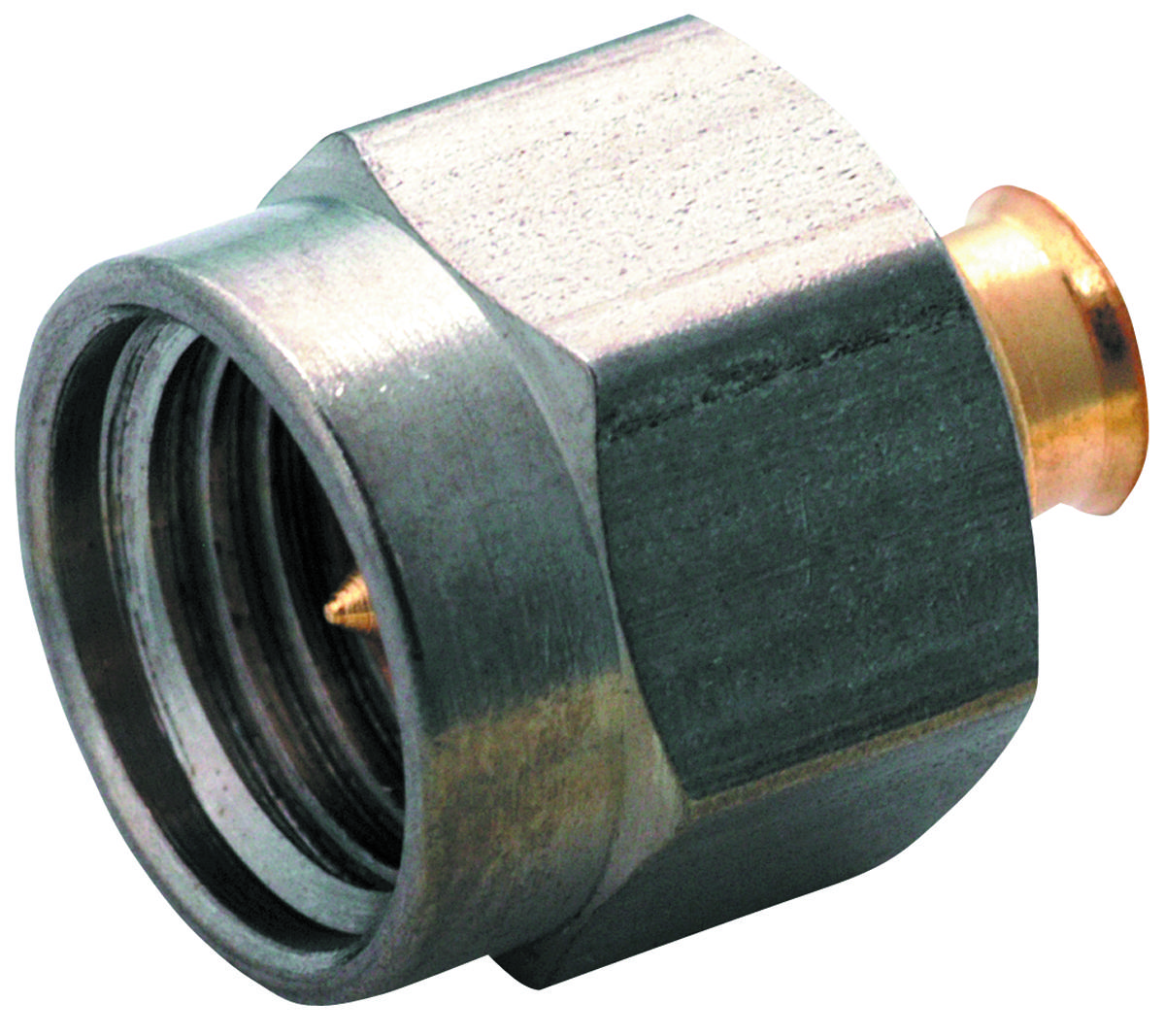

Buy the Buy Connex SMA Straight Plug Part Number 132188 Online
Purchase the Connex SMA 132188 straight plug connector online today to enjoy high-quality, durable RF coaxial connections. Designed for semi-rigid and RG405 cables, it features a gold-plated brass body with a PTFE insulator for superior performance. Rated for 500 mating cycles and operating within -65°C to 165°C, this connector provides excellent electrical characteristics, low reflection, and a threaded coupling for secure connections. Perfect for RF communication, aerospace, and industrial applications, buy now for dependable signal integrity.
Order your Connex SMA 132188 solder-type connector today and ensure reliable RF connections with excellent mechanical strength and low VSWR for industrial use.
Frequently Asked Questions
Where can I buy AMPHENOL RF 132188?
You can click on the BUY or RFQ button to purchase 132188 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part 132188?
You can download the 132188 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of 132188?
AMPHENOL RF
