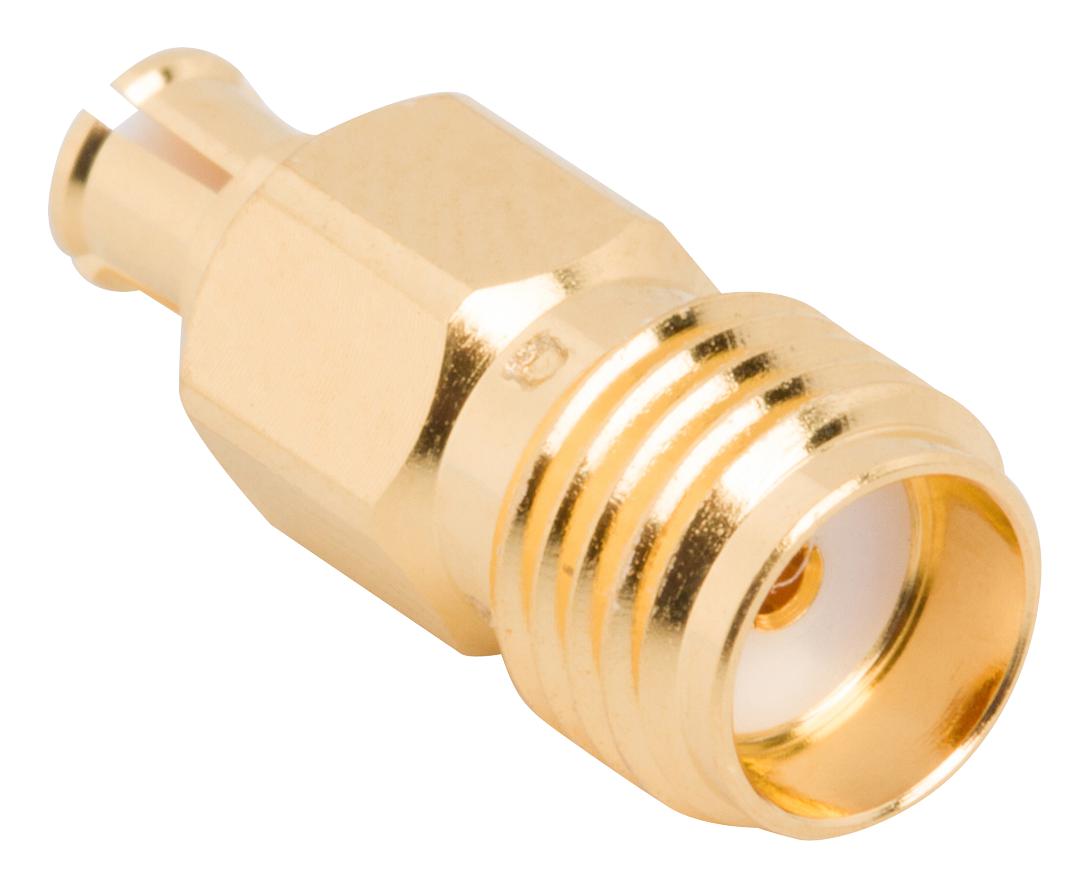

AMPHENOL RF ADSMAJSMPP2 RF SMA Connector
The AD-SMAJSMPP2 is a high-performance SMA connector designed for precise RF applications up to 26.5 GHz. Made with BeCu gold-plated body and contacts, it features PTFE insulation for excellent dielectric properties. The connector offers an impedance of 50 ohms, a dielectric withstand voltage of 500 VRMS minimum, and exceptional durability with at least 500 cycles on the SMA side and 100 cycles on the SMP side. Suitable for RF testing, measurement, and high-frequency communication systems, it supports a wide temperature range from -65°C to +165°C, ensuring reliability in harsh environments.
AMPHENOL RF ADSMAJSMPP2 RF SMA Connector Specifications:
- Material: BeCu, gold-plated body and contact
- Insulator: PTFE, natural
- Impedance: 50 ohms
- Frequency Range: DC to 26.5 GHz
- Return Loss: 35 dB min @ DC-4 GHz, 26 dB min @ 4-10 GHz, 25 dB min @ 10-26.5 GHz
- Dielectric Withstanding Voltage: 500 VRMS min
- Durability: SMA side: minimum 500 cycles, SMP side: minimum 100 cycles when mated with full detent jack, 1000 cycles with smooth bore jack
- Temperature Range: -65°C to +165°C
- Mechanical: Mating cycles - SMA - 500, SMP - 100 min
- Packaging: Single pack with marking
- Dimensions: Not specified in provided data
- Certifications: Not specified
Buy the Amphenol ADSMAJSMPP2 – Reliable RF Connector for Industrial Applications
Purchase the RF SMA connector designed for high-frequency applications up to 26.5 GHz. Made with durable BeCu and gold-plated contacts, it features PTFE insulation, impedance of 50 ohms, and excellent dielectric performance. Suitable for RF testing, measurement, and communication systems, it withstands harsh environments from -65°C to +165°C and offers high durability with multiple mating cycles. Order online now for reliable, professional-grade RF connections that ensure consistent performance in demanding industrial and scientific applications.
Get Amphenol ADSMAJSMPP2 today—built for precision and long-lasting durability in high-frequency RF environments.
Frequently Asked Questions
Where can I buy AMPHENOL RF ADSMAJSMPP2?
You can click on the BUY or RFQ button to purchase ADSMAJSMPP2 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part ADSMAJSMPP2?
You can download the ADSMAJSMPP2 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of ADSMAJSMPP2?
AMPHENOL RF
