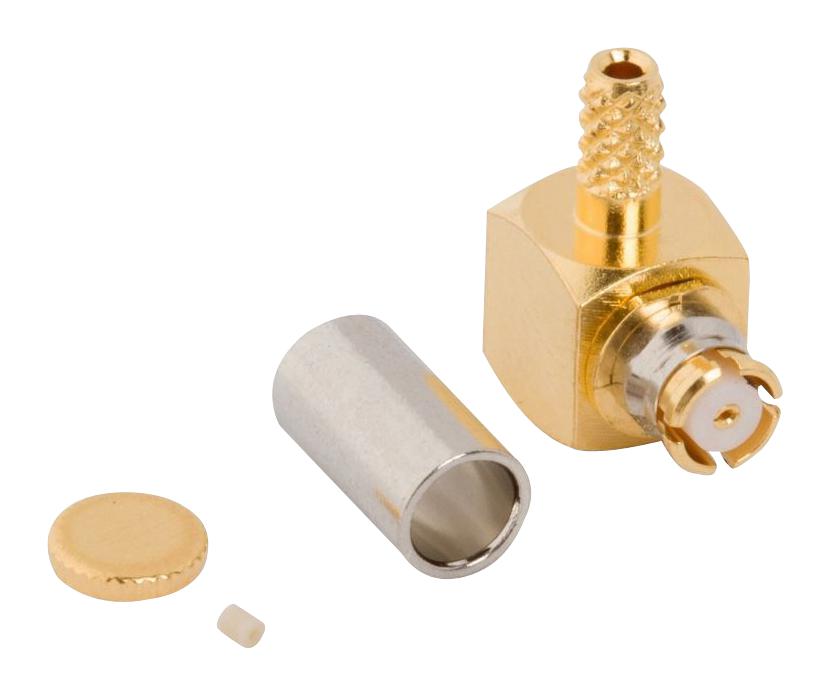

AMPHENOL RF SMPFRC19 RF Connector
This right-angle connector features a push-on coupling mechanism for quick, secure installation, with gold-plated BeCu body and contacts for reliable, corrosion-resistant performance. Designed for RG178 cable, it supports high-frequency applications including antennas, broadband, military communications, instrumentation, and 5G wireless technology. With impedance of 50 ohms and a frequency range of DC to 26.5 GHz, it ensures minimal signal loss with VSWR max of 1.22 at DC - 3 GHz and 1.43 at 3 - 12.4 GHz. Mechanical durability exceeds 100 cycles, with temperature ratings from -65°C to 165°C, making it a robust choice for advanced RF systems.
AMPHENOL RF SMPFRC19 RF Connector Specifications:
- Impedance: 50 ohm
- Frequency Range: DC - 26.5 GHz
- VSWR: 1.22 max. (-20 dB) @ DC - 3 GHz; 1.43 max. (-15 dB) @ 3 - 12.4 GHz
- Dielectric Withstanding Voltage: 500 VRMS min.
- Material: BeCu, gold plating; Brass, gold plating; Copper, nickel plating; PTFE insulator; PEEK insulator disc
- Mechanical Durability: 100 cycles min. full detent; 500 cycles limited detent; 1000 cycles smooth bore
- Temperature Range: -65°C to 165°C
- Mating Force (approximate): 15 lbs full detent, 10 lbs limited detent, 2 lbs smooth bore
- Cable Compatibility: RG178
- Manufacturing Standards: MIL-STD-348, with conformances for RF connectors
- Packaging: Single pack with markings
Buy the Amphenol Series SMP RF Connector: SMPFRC19
Order the Amphenol SMPFRC19 RF connector online today for reliable, high-frequency performance perfect for antennas, broadband, military communication, instrumentation, and 5G systems. This durable, gold-plated right-angle connector offers quick, secure push-on coupling, supporting frequencies up to 26.5 GHz with minimal signal loss. Its robust construction ensures excellent durability through multiple mating cycles, working reliably across a temperature range of -65°C to 165°C. Perfect for professional RF setups requiring excellence and dependability.
Get Amphenol SMPFRC19 today—built for precision and long-lasting durability with a quick push-on connection for RF applications.
Frequently Asked Questions
Where can I buy AMPHENOL RF SMPFRC19?
You can click on the BUY or RFQ button to purchase SMPFRC19 from an authorized AMPHENOL RF distributor.
How do I troubleshoot issues or seek technical support for part SMPFRC19?
You can download the SMPFRC19 datasheet or visit the AMPHENOL RF website for support.
Who is the manufacturer of SMPFRC19?
AMPHENOL RF
