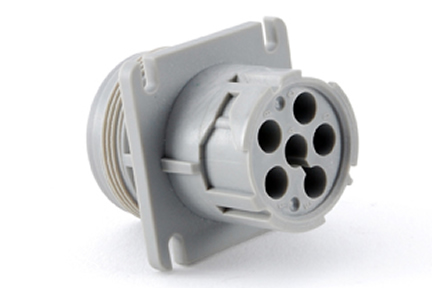

Amphenol Sine Systems AHD10612PL 6 Position Square Flange Connector
The Amphenol Sine Systems AHD10-6-12P-L is a high-performance circular connector designed for demanding applications requiring reliable power transmission and robust environmental protection. Featuring a square flange for secure mounting, this 6-position connector is ideal for use in automotive, industrial, and heavy-duty equipment. Constructed with a thermoplastic housing and silicone rubber seal, it offers excellent resistance to moisture, dust, and vibration. The connector is RoHS compliant and designed to meet stringent industry standards, ensuring long-term reliability and performance. Mating part is AHD16-6-12S.
Amphenol Sine Systems AHD10612PL 6 Position Square Flange Connector Specifications:
- Current Rating: 25 Amps
- Operating Temperature: -55°C to +125°C
- Dielectric Withstanding Voltage: Less than 2 milliamp current leakage @ 1500 Volts AC
- Insulation Resistance: 1000 Megohm min @ 25°C
- Moisture Resistance: IP67 (mated condition)
- Mating Cycle Durability: 100 cycles
- Material (Housing): Thermoplastic; Grey
- Material (Seal): Silicone Rubber
- Contact Size: 12
- Wire Range: 10-14 AWG (.134 in) to (.170 in)
Buy the AHD10-6-12P-L Amphenol Sine Systems 6 Position Square Flange Connector | myMectronic
Purchase the Amphenol Sine Systems AHD10-6-12P-L connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Amphenol Sine Systems AHD10612PL?
You can click on the BUY or RFQ button to purchase AHD10612PL from an authorized Amphenol Sine Systems distributor.
How do I troubleshoot issues or seek technical support for part AHD10612PL?
You can download the AHD10612PL datasheet or visit the Amphenol Sine Systems website for support.
Who is the manufacturer of AHD10612PL?
Amphenol Sine Systems
