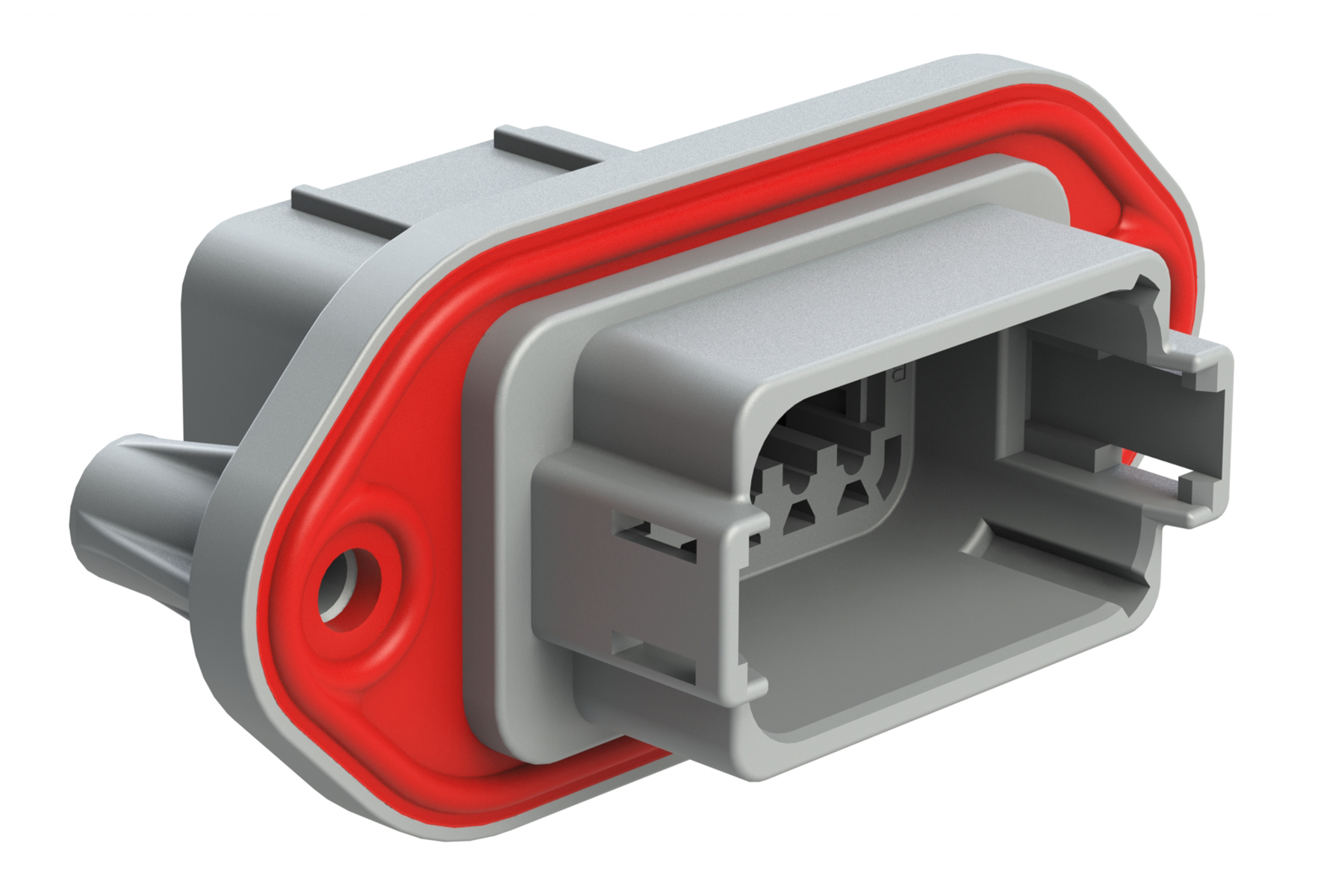

Amphenol Sine Systems AT0412PAPM12 12 Pin Receptacle with Flange
The Amphenol Sine Systems AT04-12PA-PM12 is a high-performance circular connector designed for demanding industrial environments. This 12-pin receptacle features a thermoplastic housing, black end cap, black strain relief cap, and red silicone rubber seals, providing excellent environmental protection. It is designed to mate with AT06-12SX* plug series and offers a robust solution for power and signal transmission in applications such as automotive, industrial automation, and heavy machinery. The connector is RoHS compliant and supports a wide range of wire gauges, ensuring versatility in system design. Available with various keying and sealing options to meet specific application requirements.
Amphenol Sine Systems AT0412PAPM12 12 Pin Receptacle with Flange Specifications:
- Material (Housing): Thermoplastic
- Material (End Cap): Thermoplastic
- Material (Strain Relief Cap): Thermoplastic
- Material (Seals): Silicone Rubber
- Operating Temperature: -55°C to +125°C
- Dielectric Withstanding Voltage: Less than 2 milliamps
- Insulation Resistance: 1000 Megohms Min @ 25°C
- Moisture Resistance: IP67 (mated condition)
- Mating Cycle Durability: 100 cycles
- Current Rating: 13 Amps
- Contact Size: 16
- Wire Range: 14 - 20 AWG
- RoHS Compliant: Yes
- Keying Options: A, B, C, D
- Sealing Options: Standard, Reduced Diameter
