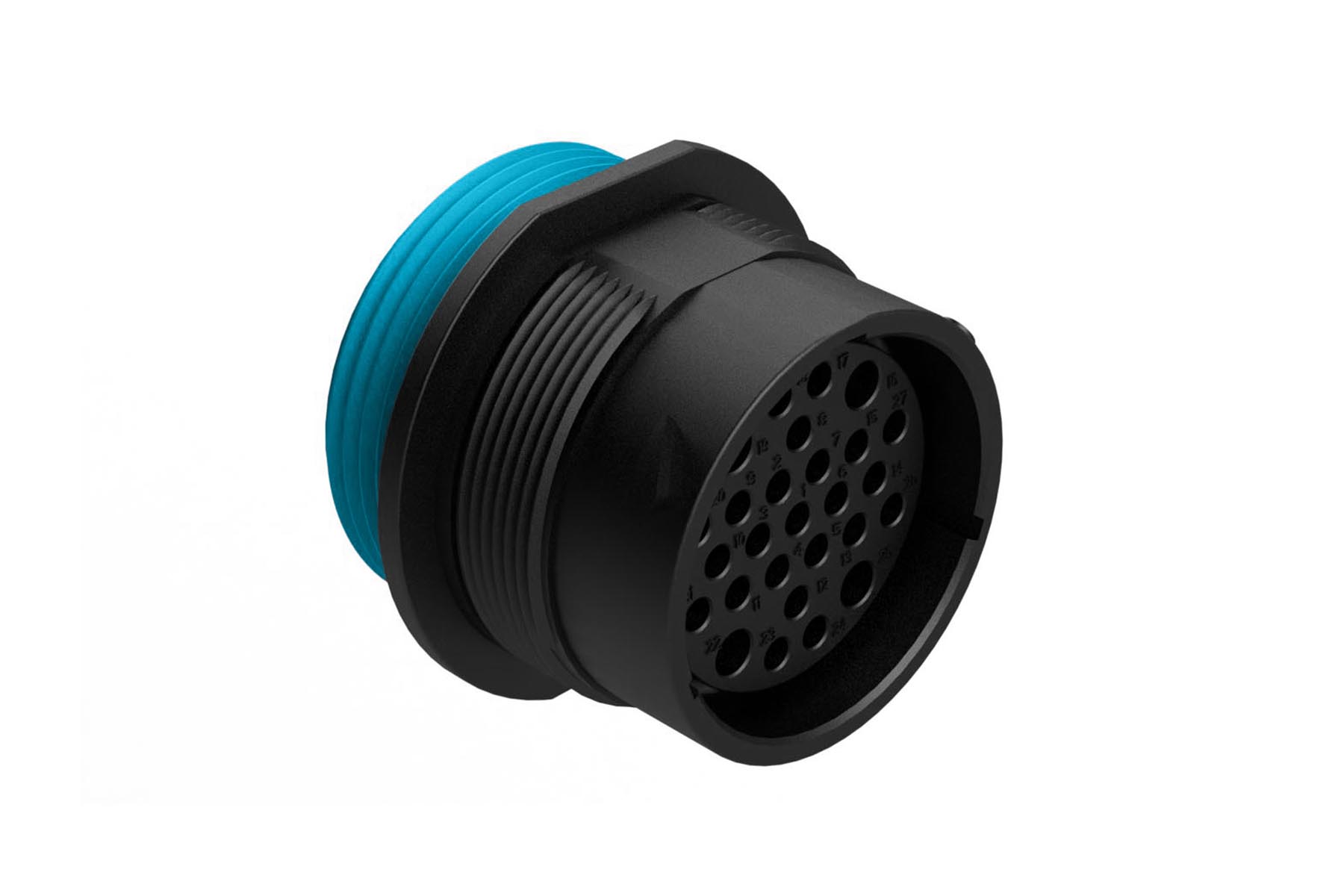

Amphenol Sine Systems AHDP042427SRWTA 24-27 Position Socket Connector
The Amphenol Sine Systems AHDP04-24-27SR-WTA is a high-performance circular connector designed for demanding industrial environments. This connector offers a 24-27 position socket configuration, ensuring reliable connectivity. It boasts an IP67 and IP69K rating, providing excellent protection against dust and water ingress. Constructed with a thermoplastic housing and silicone rubber seal, it is built to withstand harsh conditions. The connector is RoHS compliant, meeting environmental standards. It is ideal for applications requiring robust and sealed connectivity, such as automotive, industrial automation, and heavy equipment.
Amphenol Sine Systems AHDP042427SRWTA 24-27 Position Socket Connector Specifications:
- Operating Temperature: -55℃ to +125℃
- Dielectric Withstanding Voltage: Less than 2 milliamps current leakage @ 1500 volts AC
- Insulation Resistance: 1000 megohm min @ 25℃
- Moisture Resistance: IP67 & IP69K (mated condition)
- Mating Cycle Durability: 100 cycles (threaded adapter)
- Material - Housing: Thermoplastic, Black
- Material - Seal: Silicone Rubber
- Thread: 1 11/16-18 UNEF (4 places)
- Contact Size: 16
- Wire Range: 14-20 AWG (typical)
- Current Rating: 13 Amps
- Panel Mounting Hole: Ø50.8
- RoHS Compliant: Yes
- Mating Part: AHDP06-24-27P
Buy the AHDP04-24-27SR-WTA Amphenol Sine Systems 24-27 Position Socket Connector | myMectronic
Purchase the Amphenol Sine Systems AHDP04-24-27SR-WTA connector securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Amphenol Sine Systems AHDP042427SRWTA?
You can click on the BUY or RFQ button to purchase AHDP042427SRWTA from an authorized Amphenol Sine Systems distributor.
How do I troubleshoot issues or seek technical support for part AHDP042427SRWTA?
You can download the AHDP042427SRWTA datasheet or visit the Amphenol Sine Systems website for support.
Who is the manufacturer of AHDP042427SRWTA?
Amphenol Sine Systems
