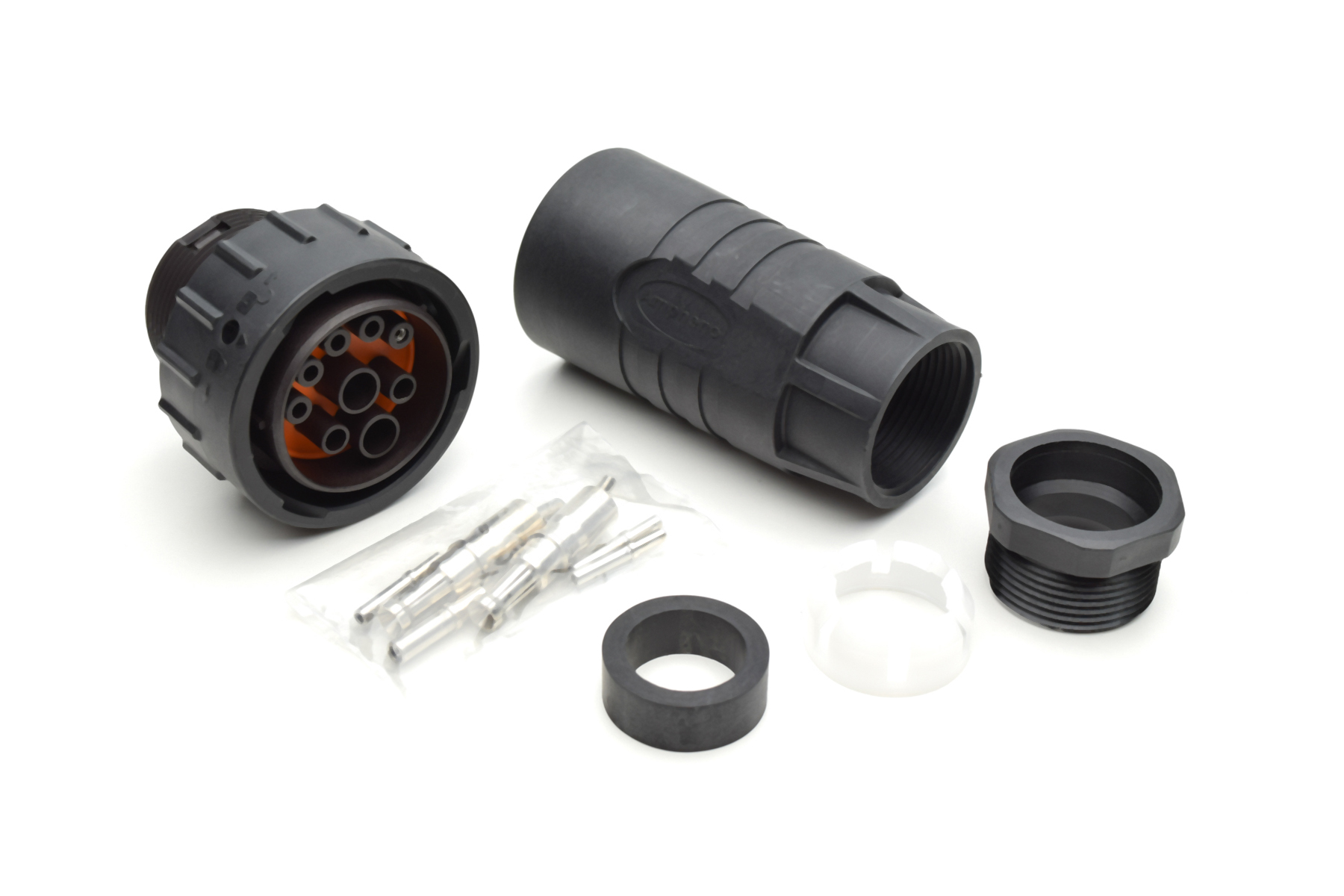

Amphenol Sine Systems AHDP062491SBS1K16X Circular Connector
The Amphenol AHDP06-24-91S-BS1-K16X is a circular connector designed for demanding industrial environments. It offers a robust construction with a polyamide black housing (UL94V-0) and provides IP67/IP6K9K protection when mated. The connector supports a rated voltage of 24VDC and can handle current loads up to 2x80A depending on the contact size. It utilizes a bayonet locking mechanism and is compatible with various cable diameters (14-18mm). Contacts are available in both machined and stamped/formed options, with gold-plated and nickel-plated finishes. This connector is ideal for applications requiring reliable power and signal transmission in harsh conditions.
Amphenol Sine Systems AHDP062491SBS1K16X Circular Connector Specifications:
- Number of Contacts: 2+2+4+1
- Rated Voltage: 24VDC
- Current Carrying Capacity (6mm²):: 2x45A
- Current Carrying Capacity (10mm²):: 2x60A
- Current Carrying Capacity (16mm²):: 2x75A
- Current Carrying Capacity (2.5mm²):: 2x15A
- Current Carrying Capacity (0.5mm²):: 4x5A
- Max. Current Carrying Capacity (6mm²):: 2x50A
- Max. Current Carrying Capacity (10mm²):: 2x70A
- Max. Current Carrying Capacity (16mm²):: 2x80A
- Pollution Degree: 3
- Temperature Range: -40°C to +125°C
- Protection Class: IP67 / IP6K9K
- Mechanical Operations: >100 mating cycles
- Material (Gaskets): NBR, Silicone
- Material (Housing): Polyamide black, UL94V-0
- Material (Contact Carrier): Polyamide black, UL94V-0
- Material (Contacts): Copper alloy, nickel plated
- Cable Diameter: 14-18mm
- Locking Mechanism: Bayanet
- Connector Standard: ISO 11783-2
- Contact Sizes: 2x Size 8, 2x Size 12, 4x Size 16, 1x Size 16 bridged
Buy the AHDP06-24-91S-BS1-K16X Amphenol Sine Systems Circular Connector | myMectronic
Purchase the Amphenol AHDP06-24-91S-BS1-K16X securely and efficiently through our online store.
Buy Now
