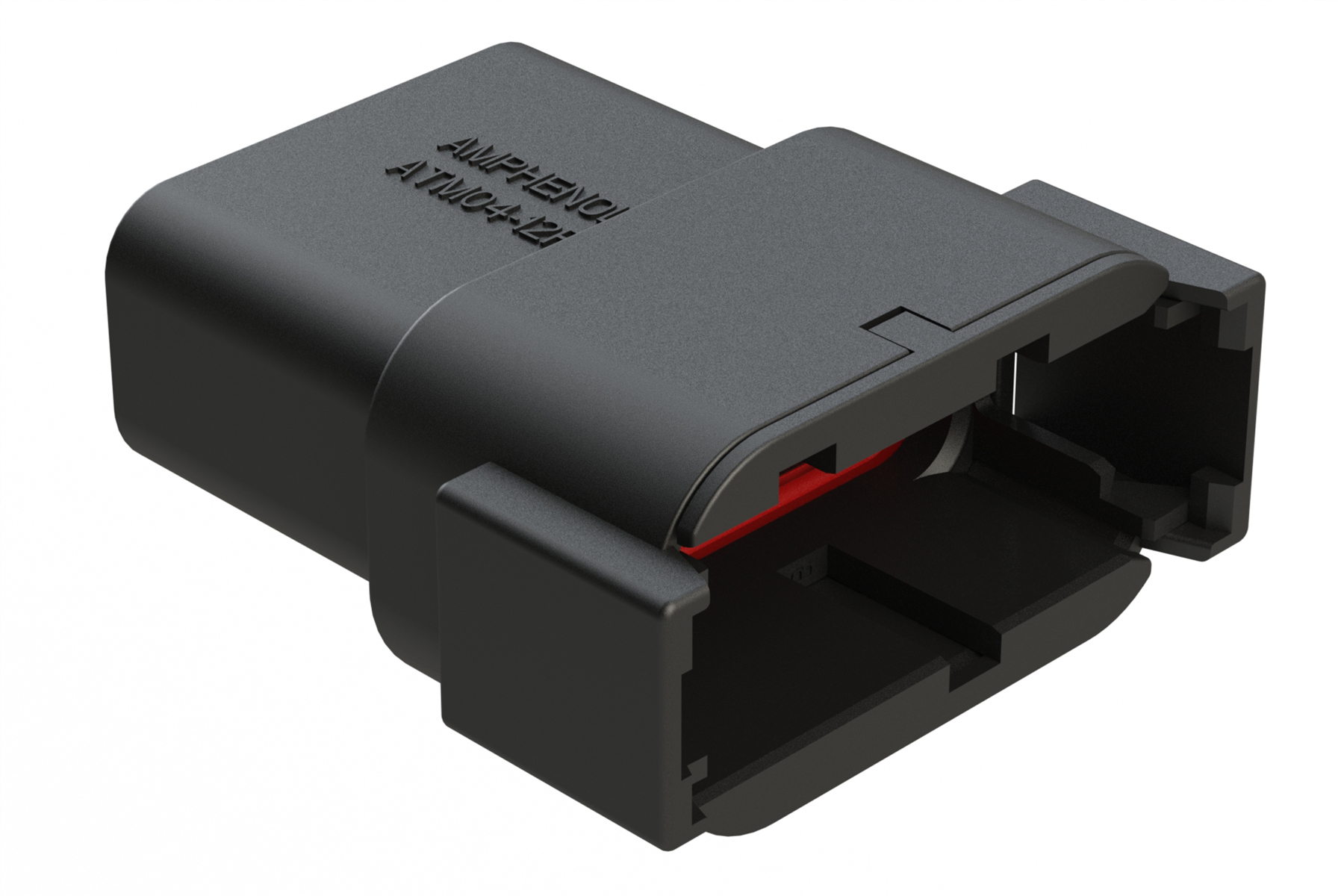

Amphenol Sine Systems ATM0412PB Keyed 12 Pin Receptacle
The Amphenol Sine Systems ATM04-12PB is a keyed, 12-pin circular connector within the ATM Series™. It's designed for applications requiring a reliable and sealed connection, commonly found in automotive, industrial automation, and power distribution systems. The connector features a thermoplastic housing and a silicone rubber seal, providing excellent environmental protection. With a current rating of 7.5 amps and an IP67 rating, it's suitable for harsh environments. Available in various key configurations and colors to suit different application needs. Contact sizes 20 options are also available for additional flexibility.
Amphenol Sine Systems ATM0412PB Keyed 12 Pin Receptacle Specifications:
- Current Rating: 7.5 Amps
- Operating Temperature: -55°C to +125°C
- Dielectric Withstanding Voltage: Less than 2 Milliamps @ 1500 Volts AC
- Insulation Resistance: 1000 Megohms Min @ 25°C
- Moisture Resistance: IP67 (Mated Condition)
- Mating Cycle Durability: 100 Cycles
- Contact Wire Range: 16 - 22 AWG
- Material (Housing): Thermoplastic
- Material (Seal): Silicone Rubber
- Dimensions: All dimensions are in metric(mm)
- Tolerances: 1 PL DEC ±0.30, Fractions ±1/64, 2 PL DEC ±0.15, Angles ±1°
