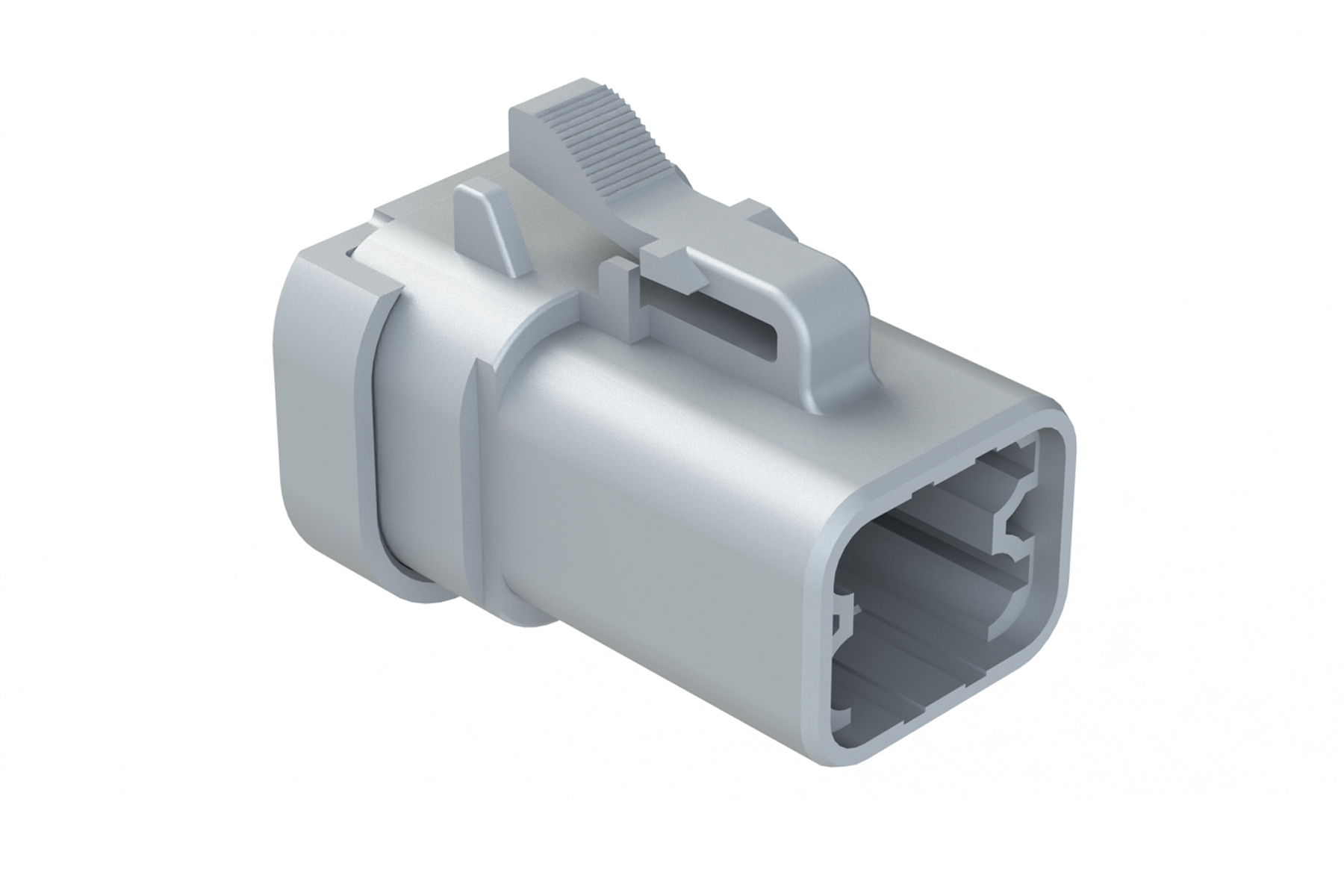

Amphenol Sine Systems ATP064SEC01 4 Position Plug Socket
The Amphenol ATP06-4S-EC01 is a high-performance circular connector engineered for reliable connectivity in harsh environments. Its thermoplastic housing and silicone rubber seal provide excellent protection against moisture, dust, and vibration. The connector's robust design and IP68 rating make it suitable for automotive, industrial automation, power distribution, and heavy-duty equipment applications. It is designed to mate with ATP04-4P receptacles, ensuring compatibility within the Amphenol ATP series. Available in grey and black, this connector offers a versatile solution for a wide range of electrical connection needs.
Amphenol Sine Systems ATP064SEC01 4 Position Plug Socket Specifications:
- Current Rating: 25 Amps
- Voltage Rating: 500 V AC/DC (UL1977)
- Operating Temperature: -55°C to +125°C
- Dielectric Withstanding Voltage: Less than 2 milliamps @ 2500 Volts AC
- Insulation Resistance: 1000 Megohms min @ 25°C
- Moisture Resistance: IP68 (1M of water for 24 hours, mated condition), IP69K (mated condition)
- Mating Cycle Durability: 100 cycles
- Material (Housing): Thermoplastic
- Material (Seal): Silicone Rubber
- Contact Size: 12
- Wire Range: 10 - 14 AWG (5.0-2.0mm²)
Buy the ATP06-4S-EC01 Amphenol Sine Systems 4 Position Plug Socket | myMectronic
Purchase the Amphenol ATP06-4S-EC01 connector securely and reliably through our online store.
Buy Now
Frequently Asked Questions
Where can I buy Amphenol Sine Systems ATP064SEC01?
You can click on the BUY or RFQ button to purchase ATP064SEC01 from an authorized Amphenol Sine Systems distributor.
How do I troubleshoot issues or seek technical support for part ATP064SEC01?
You can download the ATP064SEC01 datasheet or visit the Amphenol Sine Systems website for support.
Who is the manufacturer of ATP064SEC01?
Amphenol Sine Systems
