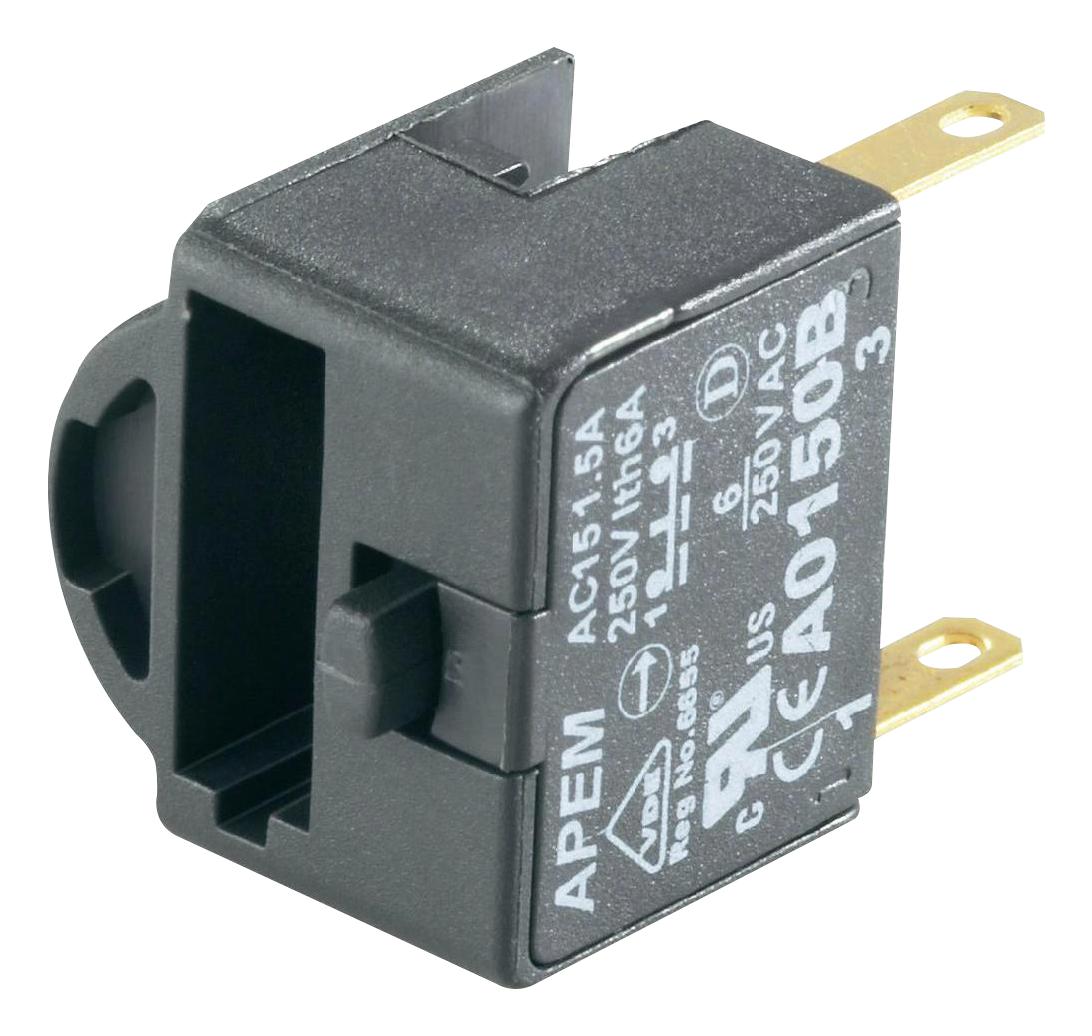

Apem A0150BD Emergency Stop Switch
The emergency stop switch series features panel cut-out at 16 mm and is approved to EN 60947-5-5, offering high durability and safety. It includes five prominent red actuator styles, with options for locked or unlocked status indicators. Rated for AC-15 1.5 A 250 VAC and 6 A 250 VAC, it is panel sealed to IP65, suitable for industrial safety applications. Constructed with polyetherimide operator cases and polycarbonate actuators, these switches support a mechanical life of 6,050 cycles, with operating forces of 18-20 N. Certified to UL 1054, VDE, and DEMKO standards, they ensure reliable operation in demanding environments.
Apem A0150BD Emergency Stop Switch Specifications:
- Panel cut-out: 16 mm
- Sealing: front panel IP65, rear panel IP40
- Operating temperature: -20 °C to +55 °C
- Electrical function: push to shut off, twist to release
- Current/voltage rating: AC-15 1.5 A 250 VAC, 6 A 250 VAC
- Electrical life: 6,050 cycles
- Mechanical life: 6,050 cycles
- Operating force: 18 to 20 N
- Tank torque: 0.8 Nm
- Switch terminals: solder/quick-connect 2.8 mm
- Materials: operator case polyetherimide, actuator polycarbonate, switch block PBT, panel seal neoprene
- Certifications: UL 1054, VDE, DEMKO
- Dimensions: suitable for panel thickness up to 6 mm
- Dielectric test voltage: 2900 V
- Contact gap: >3 mm
Buy the Sy Series Emergency Stop Switch: A0150BD
Experience the safety and reliability of the Sy emergency stop switch with a panel cut-out at 16 mm, IP65 sealing, and multiple actuator styles. Rated for AC-15 1.5 A 250 VAC and 6 A 250 VAC, it offers durable operation over more than 6,000 cycles, with adjustable operating force. Certified to UL, VDE, and DEMKO standards, this switch is ideal for industrial safety applications. Purchase online today to enhance your safety control systems with quality and certification you can trust.
Buy Sy emergency stop switch A0150BD now and ensure reliable safety control with high-quality construction and certified standards.
Frequently Asked Questions
Where can I buy Apem A0150BD?
You can click on the BUY or RFQ button to purchase A0150BD from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part A0150BD?
You can download the A0150BD datasheet or visit the Apem website for support.
Who is the manufacturer of A0150BD?
Apem
