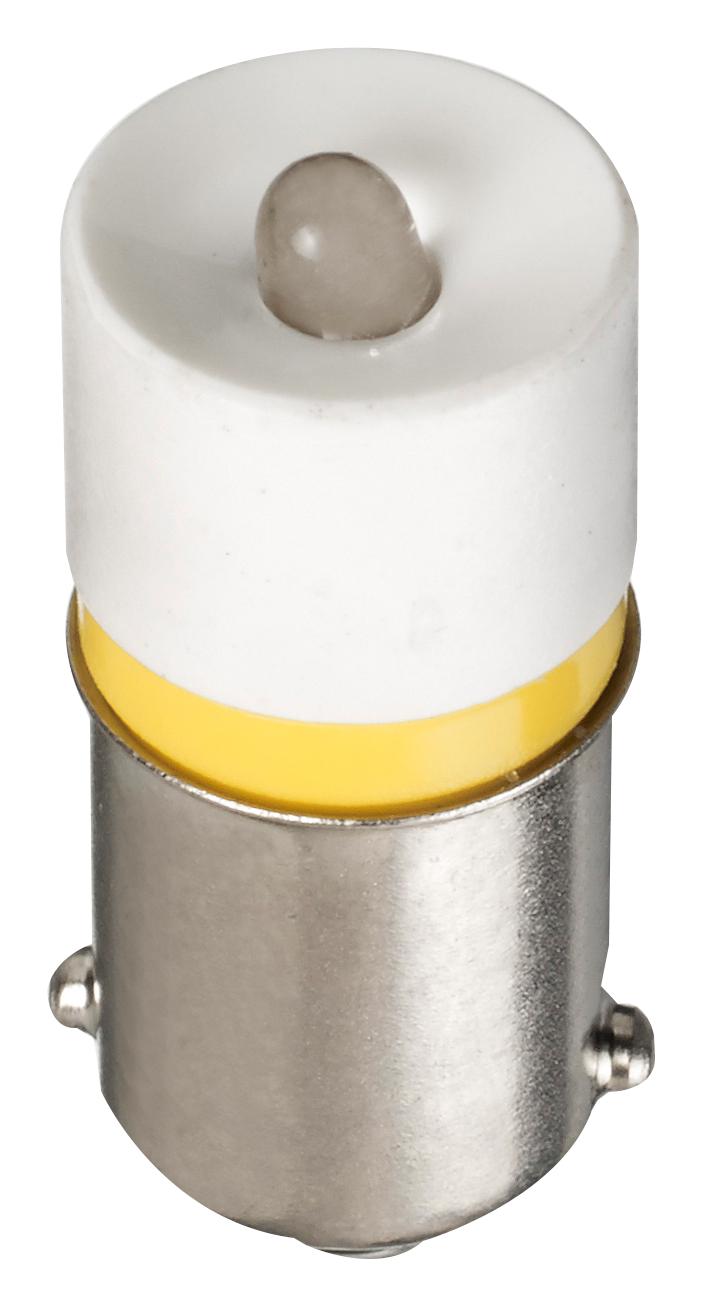

Apem BA9SY24A Bayonet Cap LED
The BA9SY24A is a bayonet cap-based LED designed for bulb replacement and versatile illumination applications. It features single and multichip options, operating efficiently within a temperature range of -20°C to +70°C. The LED supports voltage ranges from 6 VDC to 230 VAC with current ratings between 5 mA and 17 mA, and luminous intensities up to 2,070 mcd. Constructed with a polycarbonate body and nickel-plated brass base, it ensures durability and reliable performance for diverse industrial and lighting needs, offering bright, energy-efficient illumination in various colors including red, green, yellow, blue, and white.
Apem BA9SY24A Bayonet Cap LED Specifications:
- Operating Temperature Range: -20°C to +70°C
- Voltage Range: 6 VDC to 230 VAC
- Current Range: 5 mA to 17 mA
- Luminous Intensity: Up to 2,070 mcd depending on version
- Body Material: Polycarbonate
- Base Material: Nickel-plated brass
- Supported Colors: Red, Green, Yellow, Blue, White
- Series Types: Single Chip and Multi Chip options
- Build Options: Single Chip, Multi Chip with 3x luminous intensity
- Applicable Voltages: 6V, 12V, 24V, 28V, 48V, 130VAC, 230VAC
- Temperature Tolerance: Suitable for indoor and outdoor environments
- Certifications: Not specified, contact manufacturer for details
Buy the APEM Series BA9SY LED: BA9SY24A - Versatile Bulb Replacement Light
Purchase the APEM BA9SY24A Bayonet Cap LED online today for versatile bulb replacement and illumination. Designed with durable polycarbonate and nickel-plated brass, it offers excellent performance across a wide voltage range from 6 VDC to 230 VAC, supporting various colors and lumens up to 2,070 mcd. Ideal for industrial, automotive, and decorative lighting, this LED provides energy-efficient reliability, excellent brightness, and long-lasting durability in a compact bayonet cap design, ensuring seamless integration into your lighting systems.
Get APEM BA9SY24A today—built for energy-efficient and long-lasting illumination performance with durable polycarbonate body and reliable LED technology.
Frequently Asked Questions
Where can I buy Apem BA9SY24A?
You can click on the BUY or RFQ button to purchase BA9SY24A from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part BA9SY24A?
You can download the BA9SY24A datasheet or visit the Apem website for support.
Who is the manufacturer of BA9SY24A?
Apem
