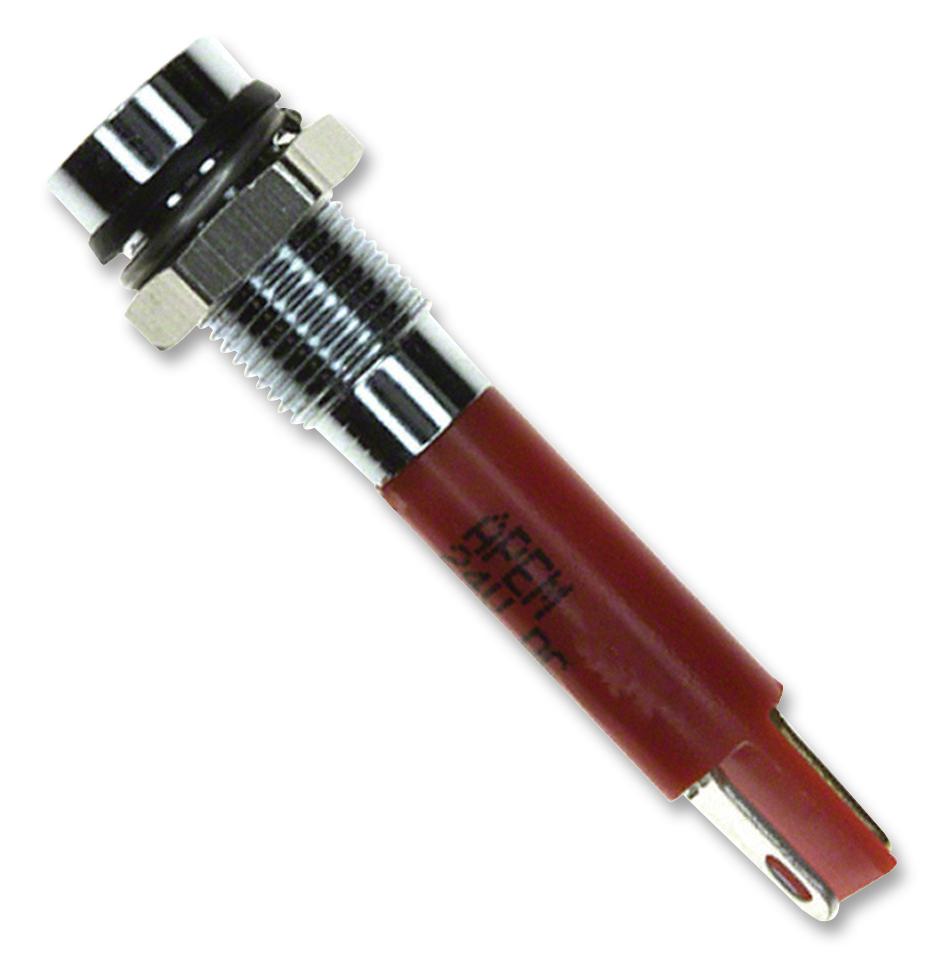

Apem Q6R1CXXR24E LED Indicator
The Q6 Series 6mm panel mount LED indicator features a recessed bright chrome bezel designed for robust sealing with IP67 ingress protection. It is suitable for 24V applications, providing high visibility with a prominent bright red LED option, ensuring reliable operation in industrial environments. The indicator offers various mounting styles, including recessed, flush, and prominent bezels, and options for wire, solder lug, or pin terminations. It is UL Recognized, with a life expectancy of 100,000 hours and an operating temperature range from -40°C to +85°C, making it suitable for demanding industrial applications.
Apem Q6R1CXXR24E LED Indicator Specifications:
- Diameter: 6mm
- Bezel Finish: Bright chrome, black chrome, satin grey
- Mounting: Panel mount with M6 x 0.5 thread, recessed, flush, prominent styles
- Ingress Protection: IP67
- Operating Voltage: 2VDC to 28VDC, specific models 24VDC
- LED Colors: Red (bright, super, hyper bright), Green, Yellow, Blue, White, Orange, Bi-color options
- Forward Voltage: Red 2.0V, Green 2.2V, Yellow 2.3V, Blue 3.3V, White 3.3V, Orange 2.0V
- Viewing Angle: 30-100° depending on model
- Operating Current: 20mA at specified voltages
- Life Expectancy: 100,000 hours
- Operating Temperature Range: -40°C to +85°C
- Termination: Solder lug, pins, rear epoxy wires, or wires (200mm, 24AWG)
- Torque: 4 cNm
- Sealing: IP67 compliant
- Certifications: UL Recognized
- Max Reverse Voltage: Not specified
- Additional features: Prominent and recessed bezel styles, various terminal options
Buy the APEM Q6 Series Reliable LED Indicator for Industrial Applications
Discover the durable and versatile LED indicator designed for harsh industrial environments. The APEM Q6 Series offers reliable operation with IP67 sealing, multiple mounting options, and various LED colors including bright and hyper-bright options. Perfect for panel mounting in machinery and control panels, this indicator features a 6mm size with a bright chrome bezel, suitable for 24V applications. Easy to install with secure sealing and long life expectancy, it ensures safety and visibility in demanding industrial operations. Order now for quick online delivery!
Buy APEM Q6 Series LED indicator now and experience unmatched reliability and performance in industrial settings.
Frequently Asked Questions
Where can I buy Apem Q6R1CXXR24E?
You can click on the BUY or RFQ button to purchase Q6R1CXXR24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q6R1CXXR24E?
You can download the Q6R1CXXR24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q6R1CXXR24E?
Apem
