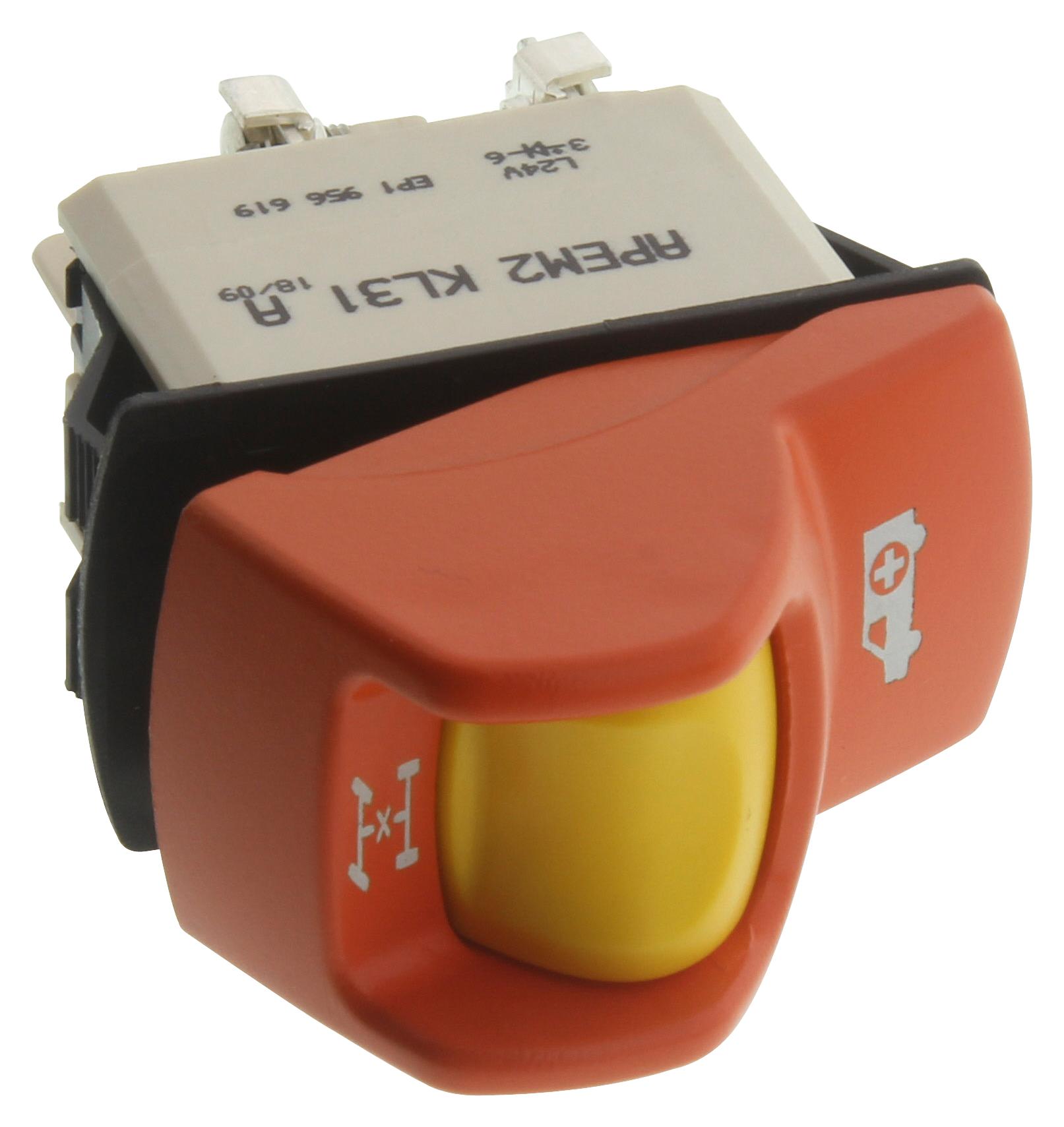

Apem KL310AXLA295NAM32 Power Control Switch
The KL series locking power rocker switches are designed for industrial applications requiring durable, sealed, and illuminated or non-illuminated control. They feature a patented ergonomic design with laser-etched symbols, protected positions, and optional sealing up to IP69K for water and dust resistance. With resistive load ratings of up to 20A 12VDC or 24VDC, they are suitable for a wide range of automation and machinery uses. Constructed with high-quality materials like brass contacts and PA 6-6 cases, they offer a mechanical life of 150,000 cycles and operate effectively between -40°C and +85°C.
Apem KL310AXLA295NAM32 Power Control Switch Specifications:
- Mechanical life: 150,000 cycles
- Panel thickness: 0.8 mm to 4.6 mm, recommended 2-3.5 mm
- Sealing options: IP68 (front components), IP69K (panel sealing)
- Operating temperature: -40°C to +85°C
- Current ratings: 5A 24VDC, 10A 24VDC, 20A 12VDC/24VDC depending on configuration
- Contacts: Brass, silver or gold plated, silver grain
- Case material: PA 6-6
- Actuator: ABS or elastomeric membrane, laser-etched symbols
- Electrical insulation resistance: ≥1000 MΩ at 500VDC
- Dielectric strength: ≥2000 Vrms
- Water and dust resistance: Optional sealing up to IP69K
- Mounting panel thickness: 1.10 mm to 5.80 mm
- Environmental resistance: Salt spray up to 96 hours
Buy the BrandName KL310AXLA295NAM32 – Reliable Power Control Switch for Industrial Applications
Order the Power Control Switch online today to upgrade your machinery with a high-quality, sealed, and durable control solution. Featuring optional IP69K sealing, it ensures protection against water, dust, and harsh industrial conditions. With metal contacts rated up to 20A and a mechanical lifespan of 150,000 cycles, this switch offers reliable operation under extreme temperatures from -40°C to +85°C. Easy to install with panel thickness compatibility from 1.10 mm to 5.80 mm, it’s the ideal choice for demanding automation and control systems.
Buy BrandName KL310AXLA295NAM32 now and experience unmatched reliability and performance in rugged industrial environments.
Frequently Asked Questions
Where can I buy Apem KL310AXLA295NAM32?
You can click on the BUY or RFQ button to purchase KL310AXLA295NAM32 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part KL310AXLA295NAM32?
You can download the KL310AXLA295NAM32 datasheet or visit the Apem website for support.
Who is the manufacturer of KL310AXLA295NAM32?
Apem
