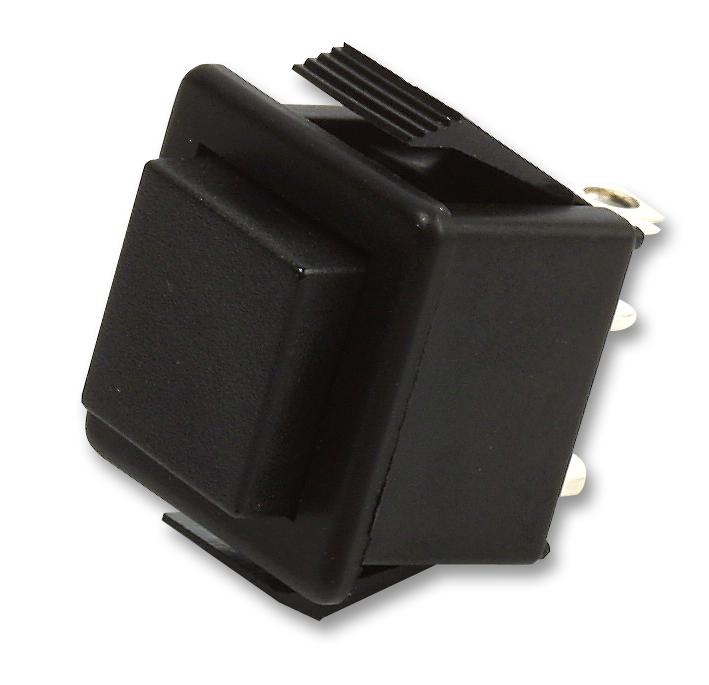

Apem 1415NCBLACK Momentary Pushbutton Switch
The APEM 1415NC BLACK is a robust momentary pushbutton switch within the 1400N series. Designed for snap-in mounting, it provides a reliable solution for various industrial control and automation applications. The switch features double-break butt action contacts, ensuring secure and dependable operation. Available with solder lug, straight PC, or quick-connect terminals, it offers flexibility in integration. Constructed with a polyamide case and plunger, and silver or silver-plated copper contacts, this switch is built to withstand demanding environments. Its compact design and ease of installation make it a versatile choice for a wide range of applications, from machinery to instrumentation.
Apem 1415NCBLACK Momentary Pushbutton Switch Specifications:
- Max. current/voltage rating (silver contacts): 6A 12VDC
- Max. current/voltage rating (silver plated copper contacts): 3A 12VDC
- Initial contact resistance: 10 mΩ
- Insulation resistance: 1.000 MΩ min. at 500VDC
- Dielectric strength (between terminals): 1.500 Vrms 50 Hz min.
- Dielectric strength (between terminals and metal panel): 2.000 Vrms 50 Hz min.
- Electrical life: 10.000 cycles at full load
- Case material: Polyamide
- Plunger material: Polyamide
- Contact material (A): Silver
- Contact material (C): Copper, silver plated
- Panel thickness: 2 mm (.078) max.
- Operating temperature: -20°C to +55°C
- Plunger colours: ['Black (standard)', 'Green', 'Red', 'Ivory']
